Description
Victron Phoenix 375VA 48V Inverter VE.Direct specifications
- Model: Victron Phoenix Inverter 48/375 VE.Direct
- Continuous Output Power at 25°C: 375VA
- Output Power at 40°C: 300W
- Peak Power: 700W
- Input Voltage Range: 36.8V – 62.0V DC
- Output Voltage / Frequency: 230VAC ±3%, 50Hz or 60Hz ±0.1% (configurable)
- Max Efficiency: 90%
- Zero-load Power Consumption: 8.5W (1.4W in ECO mode)

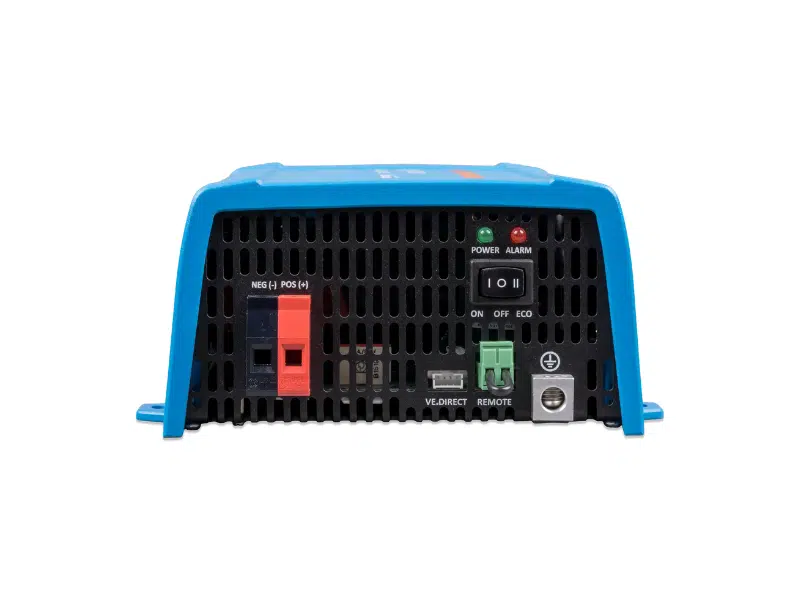

- DC Connection: Screw terminals (tool-free installation)
- Dimensions (H x W x D): 86 x 165 x 260 mm
- Weight: 3.0 kg
- Cooling: Natural convection
- IP Rating: IP21
- Operating Temperature: –40°C to +65°C (derating above 40°C)
Features:
- Pure Sine Wave Output: Ensures safe operation of sensitive electronics
- VE.Direct Communication Port: Allows real-time monitoring and settings adjustment via USB or Bluetooth dongle
- Remote On/Off Terminal: Enables switching control via external systems
- ECO Mode: Automatically reduces power draw when demand is low
- High Surge Capability: Starts loads with high inrush current
- Full Protective Features: Overload, short circuit, under/over-voltage, overheating

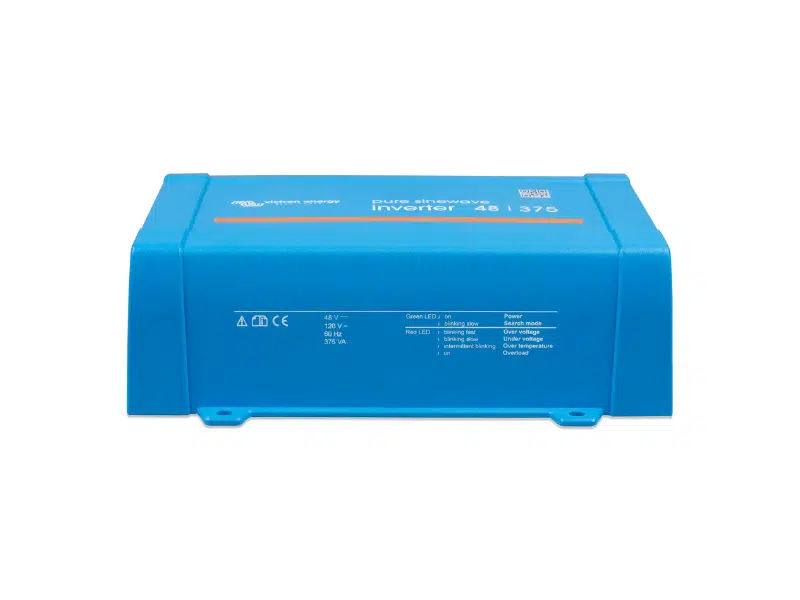

- LED Indicators: Show operational status and fault alerts at a glance
Ideal For:
- 48V off-grid solar systems
- Telecom and surveillance power setups
- Backup systems for home or office electronics
- Boats, remote cabins, and mobile applications using 48V battery banks
