Inverters, Inverters Only (DC-AC), Solar, Backup & UPS, Victron Phoenix InvertersVictron Phoenix 1200VA 24V Inverter VE.Direct; 1000W Continuous Power, 2200W Peak, Pure Sine Wave, ECO Mode, Remote On/Off

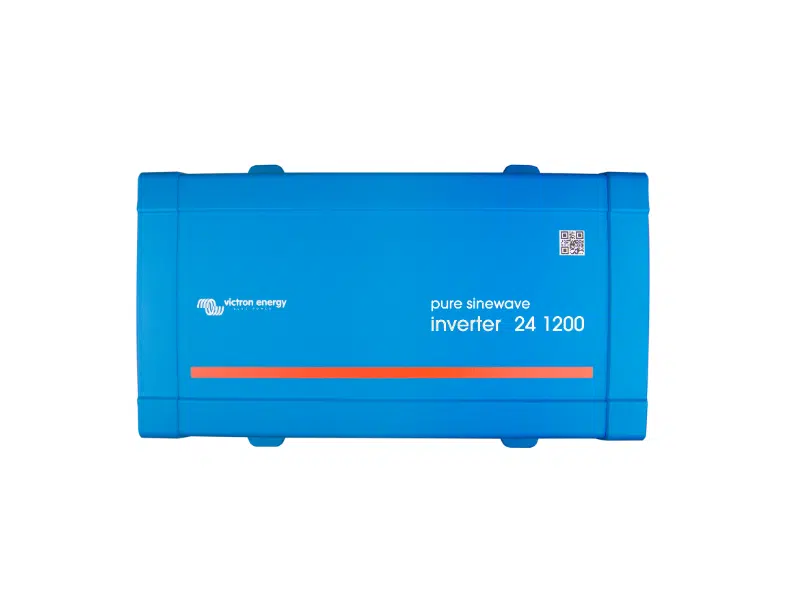

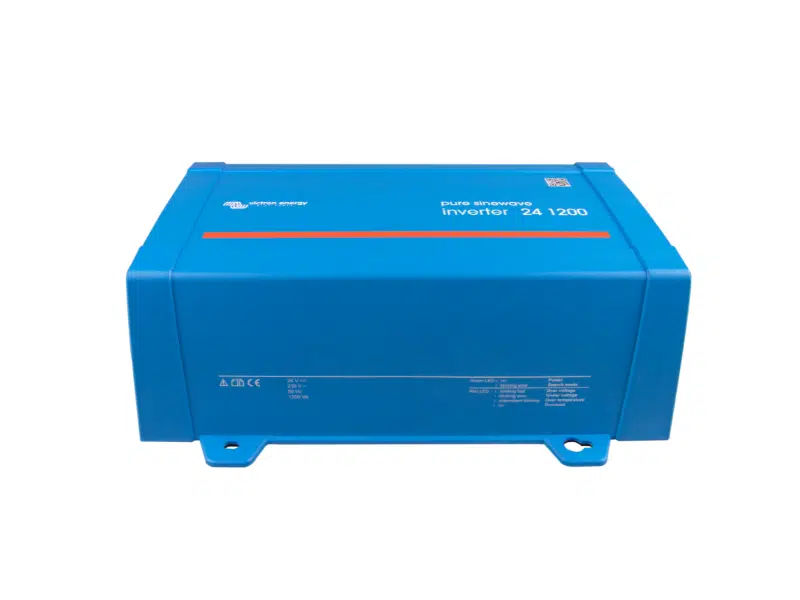

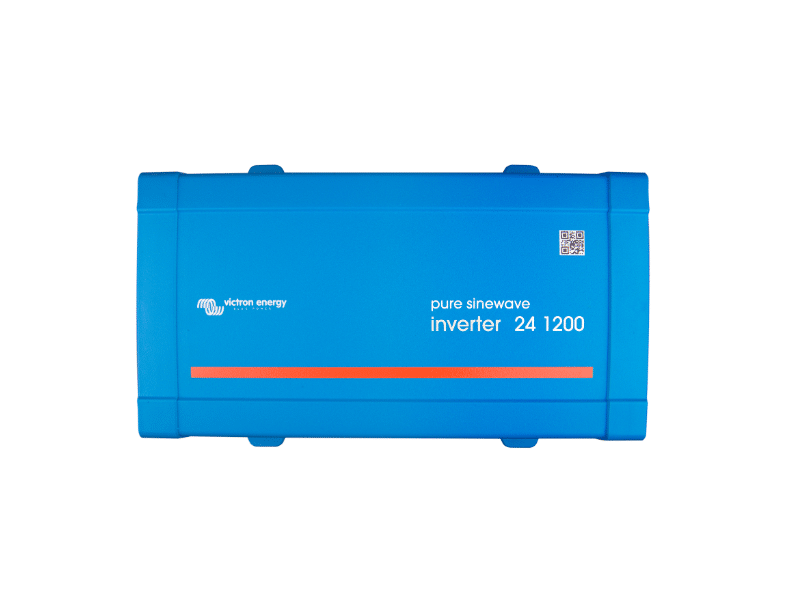

The Victron Phoenix 24/1200 Inverter VE.Direct is a high-capacity pure sine wave inverter designed to convert 24V DC power into clean 230V AC output for use with sensitive electronics and demanding appliances. It delivers 1000W of continuous output (1200VA) and up to 2200W peak power. With VE.Direct connectivity, remote on/off capabilities, and ECO mode, it’s a robust and intelligent solution for off-grid, mobile, or backup systems.
- Model: Victron Phoenix Inverter 24/1200 VE.Direct
- Continuous Output Power at 25°C: 1200VA
- Output Power at 40°C: 1000W
- Peak Power: 2200W
- Input Voltage Range: 18.4V – 34.0V DC

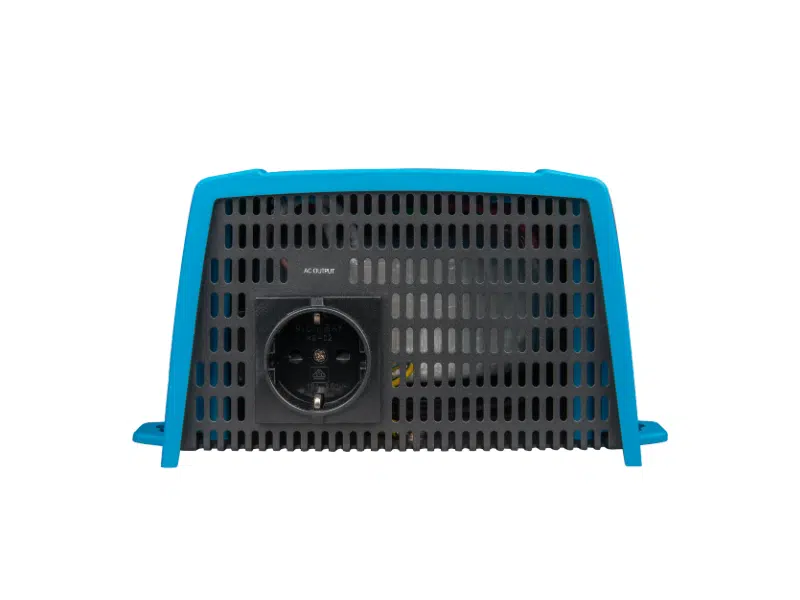

- Output Voltage / Frequency: 230VAC ±3%, 50Hz or 60Hz ±0.1% (user configurable)
- Max Efficiency: 91%
- Zero-load Power Consumption: 8W (1.5W in ECO mode)

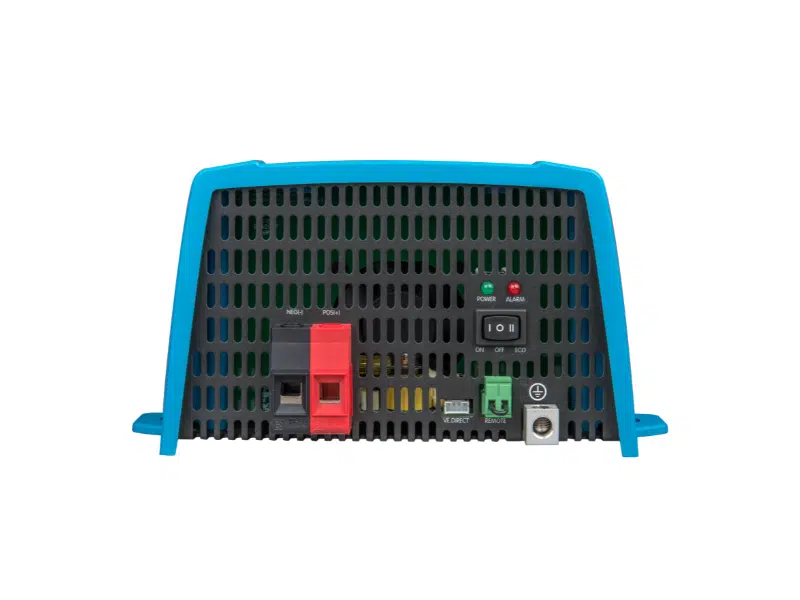

- DC Connection: Screw terminals
- Max Cable Cross-Section: 25 mm² / AWG 4
- Dimensions (H x W x D): 117 x 232 x 327 mm
- Weight: 7.4 kg
- Cooling: Fan-assisted
- IP Rating: IP21
- Operating Temperature: –40°C to +65°C (derating above 40°C)
UGX1,090,000 UGX1,300,000
