Solarman WiFi kit for all inverter models

Solarman WiFi kit for all inverter models

Communication Methods:

• Supports GPRS, WiFi, 4G, and Ethernet for versatile data transmission.

Serial Communication Interfaces:

• Compatible with RS485, RS232, TTL, and USB interfaces, ensuring broad inverter compatibility.

Inverter Compatibility:

• Designed with a multi-cover approach to adapt to a wide range of inverters.

Data Monitoring:

• Collects operating data and power generation status from inverters for long-term, efficient PV system monitoring.

Extended Functions:

• Features GNSS for precise location tracking, power-off reminders, and Bluetooth for quick on-site configuration and plant operations & maintenance.

Technical Specifications:

• Data Interface: RS485
• Working Voltage: DC 5V ~ DC 12V
• Working Power: 1.5W
• Indicator Lights: Indicate connections to the inverter, router, and system heartbeat
• Data Storage: 8 MBYTE FLASH
• Operating Temperature: -30℃ to +70℃
• Operating Humidity: 10% - 90%, non-condensing
• External Interface: USB

Solarman WiFi kit for all inverter models

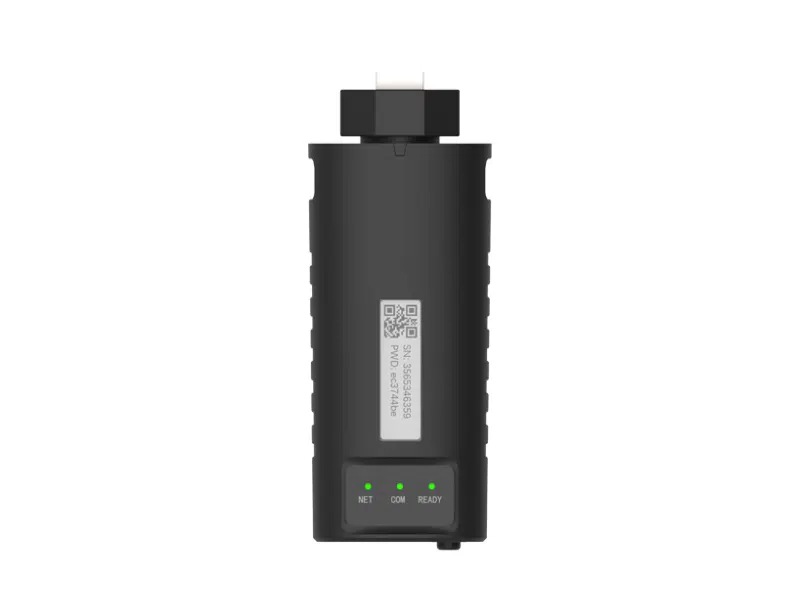

SOLARMAN stick logger supports GPRS, WiFi, 4G, Ethernet and other communication method. Furthermore, stick logger supports RS485/RS232/TTL/USB and other serial communication. With the design of multi-cover, it adapts to a vast majority of inverters. By collecting operating status and power generation of inverter, the stick logger can run a long-term and efficient monitoring of PV system, which increases work efficiency and reduces management cost significantly. With its extended functions, such as GNSS, power-off reminder, Bluetooth, stick logger enables a qucik configuration at site and an easy plant O&M.
