Victron Energy Phoenix Inverter 24V 1600 VA Smart 230V; Pure Sinewave Inverter, Bluetooth, Metal Casing

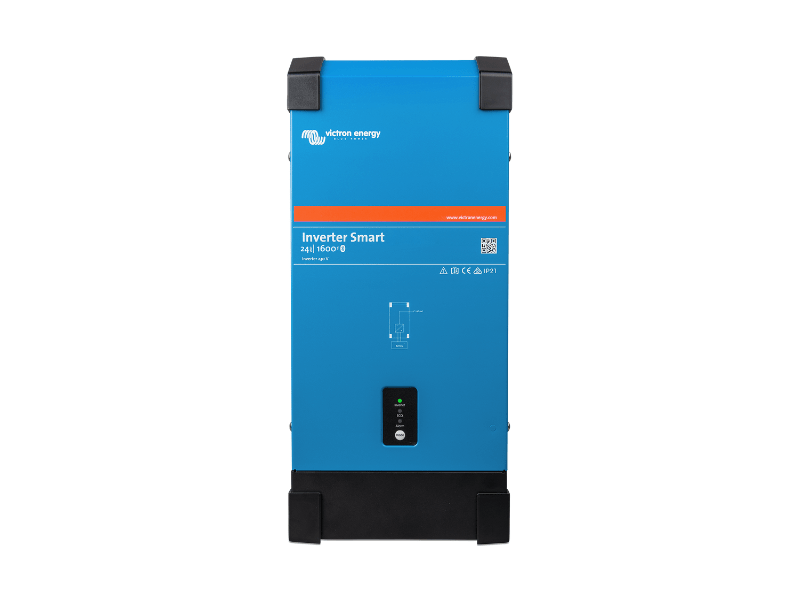

Victron Energy Phoenix Inverter 24V 1600 VA Smart 230V

The Inverter Smart is an efficient and reliable inverter. Built on our proven and field-tested inverter platform, it has a slimmer design and a full metal casing. Models are available in 2000 VA, 3000 VA and 5000 VA for 12, or 24 systems.

It’s powerful enough to supply the most common plug-in appliances in your home, car, boat, or caravan. A toroidal transformer provides a high peak power surge capacity, stable voltage, frequency and high-quality sine-wave.

Installation is simpler than ever before, with terminals now more accessible for the installer, enabling a more professional finish.

Bluetooth is built-in and makes setting up your high-power inverter easier.
Configure alarms, alarm relays, voltage cut-off, output voltage, frequency, eco-mode, and more, all from within VictronConnect.

• Input Voltage Range: 18.6 – 34 V
• Output Voltage: 230 VAC ±2%
• Frequency: 50 Hz or 60 Hz ± 0.1%
• Continuous Output Power at 25ºC: 1600 VA (1300 W)
• Continuous Output Power at 40ºC: 1200 W
• Continuous Output Power at 65ºC: 800 W
• Peak Power: 3000 W
• Dynamic (Load Dependent) DC Low Shutdown: Fully configurable
• Max Efficiency: 94%
• Zero Load Power: 9 W
• Zero Load Power in ECO Mode: 1.3 W
• Operating Temperature Range: -40 to +65 ºC (fan-assisted cooling)
• Humidity (Non-Condensing): Max 95%
• Weight: 13 kg
• Dimensions (HxWxD): 485 x 219 x 125 mm

Additional Features:

• Bluetooth Built-in: Fully configurable with a tablet or smartphone
• VE. Direct Communication Port: For remote monitoring and system integration
• Programmable Relay: Can be set for general alarm, DC under-voltage, or genset start/stop function
• Remote On/Off: Yes
• Protection:
  • a) Output short circuit
  • b) Overload
  • c) Battery voltage too high
  • d) Battery voltage too low
  • e) Temperature too high
  • f) 230 VAC on inverter output
  • g) Input voltage ripple is too high
