Description

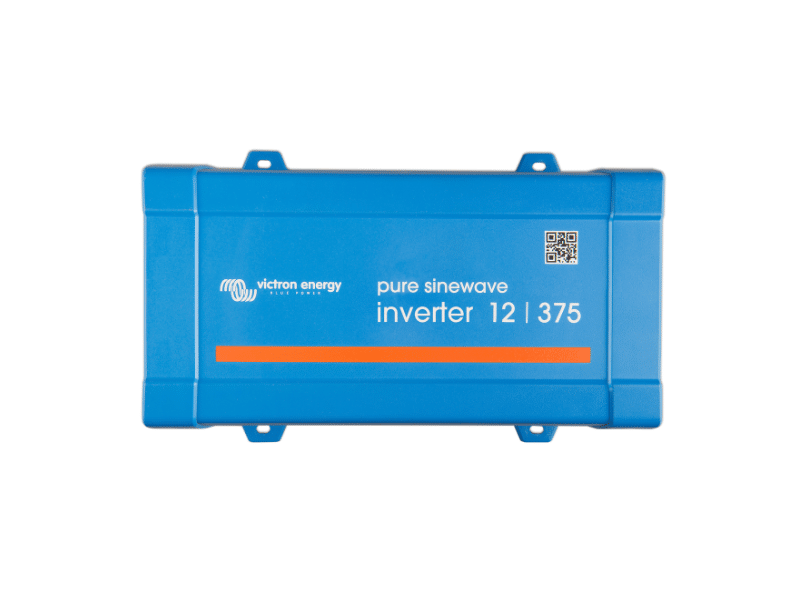

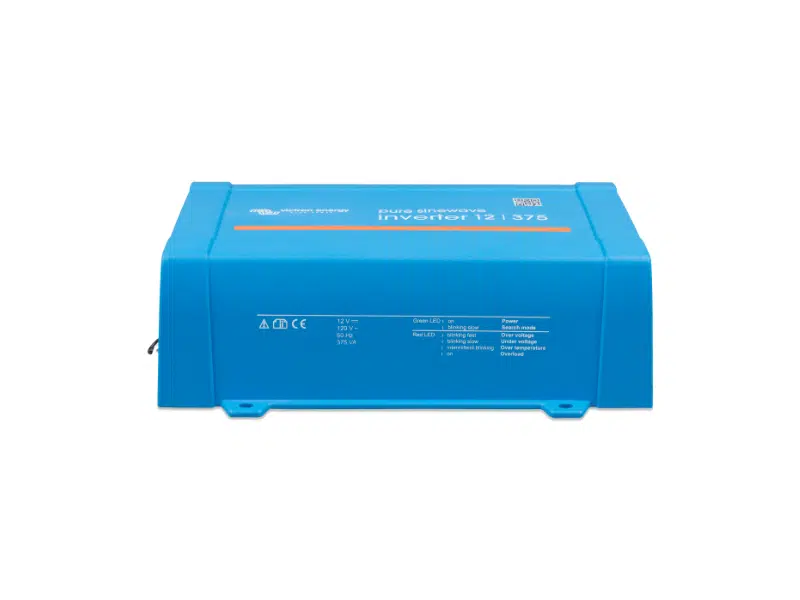

Victron 375VA 12V Phoenix Inverter VE.Direct specifications
- Model: Victron Phoenix Inverter 12/375 VE.Direct
- Rated Continuous Power (at 25°C): 375VA
- Continuous Output at 40°C: 300W
- Peak Power: 700W
- Output Voltage / Frequency: 230VAC ±3%, 50Hz or 60Hz ±0.1% (configurable)
- Input Voltage Range: 9.2V – 17V DC
- Efficiency: Up to 89%
- Zero-load Power Consumption: 5.6W (0.9W in ECO mode)
- Dimensions (H x W x D): 86 x 165 x 260 mm
- Weight: 3.0 kg

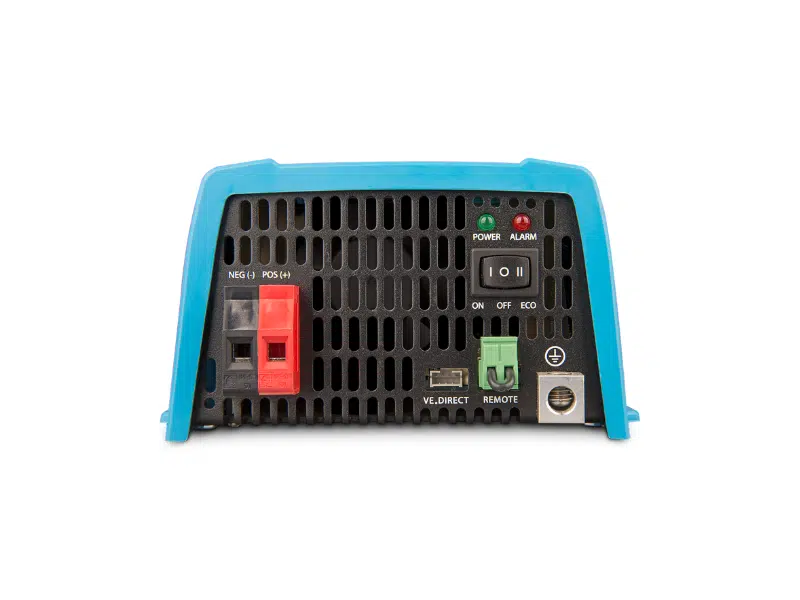

- DC Connection: Screw terminals (tool-free)
- AC Output Options: Schuko, IEC-320, UK, or AU/NZS socket
- IP Rating: IP21
- Operating Temperature: –40°C to +65°C (with derating above 40°C)
Features:
- Pure Sine Wave Output: Safe for sensitive electronics and appliances.
- VE.Direct Communication Port: Enables full monitoring and configuration via USB or Bluetooth (dongle sold separately).
- Remote On/Off Capability: Switch the inverter on or off remotely via a simple contact or voltage signal.
- ECO Mode: Reduces power draw when loads are minimal—ideal for off-grid systems.
- High Surge Capacity: Can start loads with high inrush current, like tools and LED drivers.
- Full Protection Suite: Overload, short circuit, over-temperature, high/low battery voltage.
- LED Diagnostics: For quick identification of operational status or faults.
Ideal For:
- Off-grid lighting, laptops, and small appliances
- Vehicle, boat, and caravan installations
- Backup power for key electronics
- Solar-powered systems that require efficient DC to AC conversion
