Description

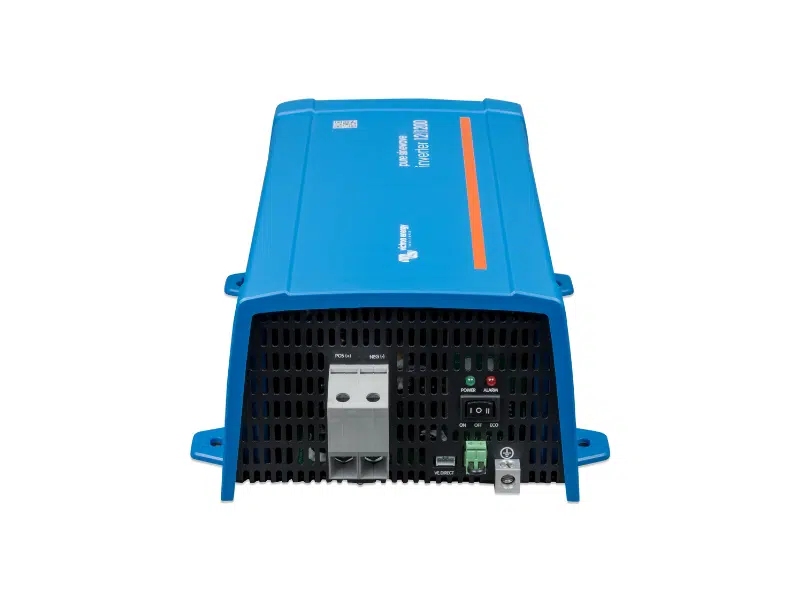

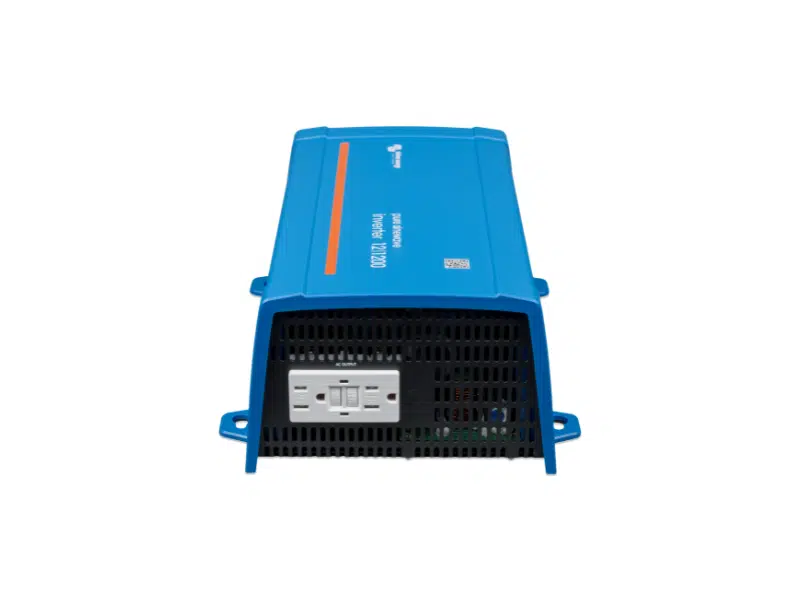

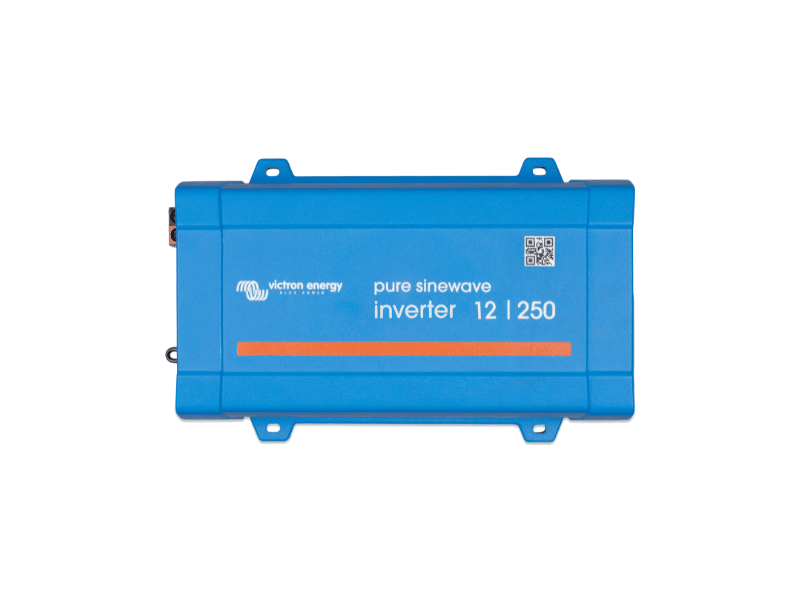

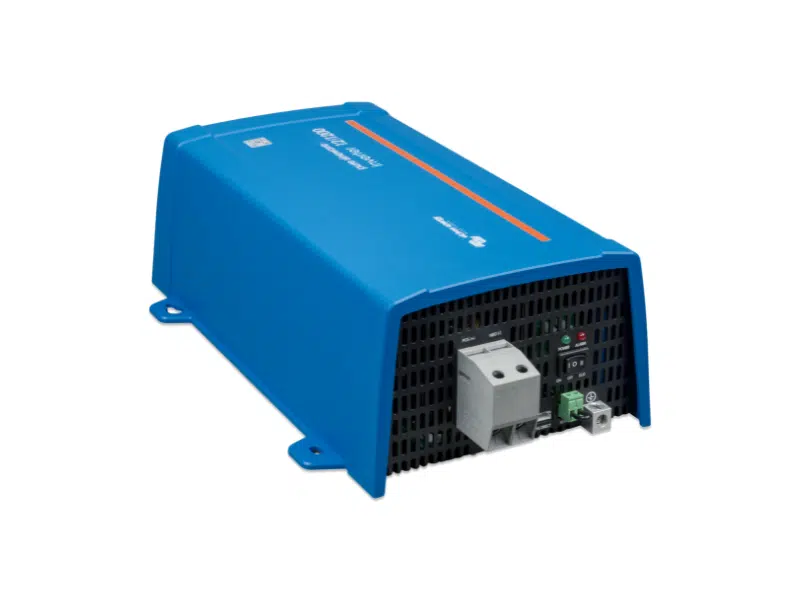

Victron 250VA 12V Phoenix Inverter VE.Direct specifications
- Continuous Output Power: 200W at 40°C (250VA at 25°C)
- Peak Power: 400W
- Output Voltage / Frequency: 230VAC ±3%, 50Hz or 60Hz (selectable)
- Input Voltage Range: 9.2V – 17.0V DC
- Efficiency: Up to 87%
- Zero-load Power Consumption: 4.2W (0.8W in ECO mode)
- Dimensions (H x W x D): 86 x 165 x 260 mm
- Weight: 2.4 kg
- DC Connection: Screw terminals (no special tools needed)
- AC Output Socket: Schuko or IEC-320 (check model variant)
- Protection: Short circuit, overload, over-voltage, under-voltage, over-temperature
- Cooling: Fan assisted, with derating above 40°C
- Ingress Protection: IP21
- Operating Temperature: -40°C to +65°C
Features:
- Pure Sine Wave Output: Ensures compatibility with sensitive electronics.
- VE.Direct Port: Enables full configuration and monitoring via PC, smartphone, or tablet (Bluetooth dongle or USB cable required).
- ECO Mode: Saves energy by switching off at low loads and restarting at adjustable intervals.
- High Start-up Power: Capable of starting demanding loads such as LED drivers and power tools.
- Remote On/Off: Can be remotely controlled via a switch or relay.
- LED Diagnostics: For quick fault detection and operational status.
- Proven Reliability: Full bridge topology with toroidal transformer for durable performance.
Ideal For:
- Powering small AC devices off-grid
- Vehicle-based power systems (RVs, boats)
- Backup power for lights and electronics
- Remote installations requiring efficient small inverters
