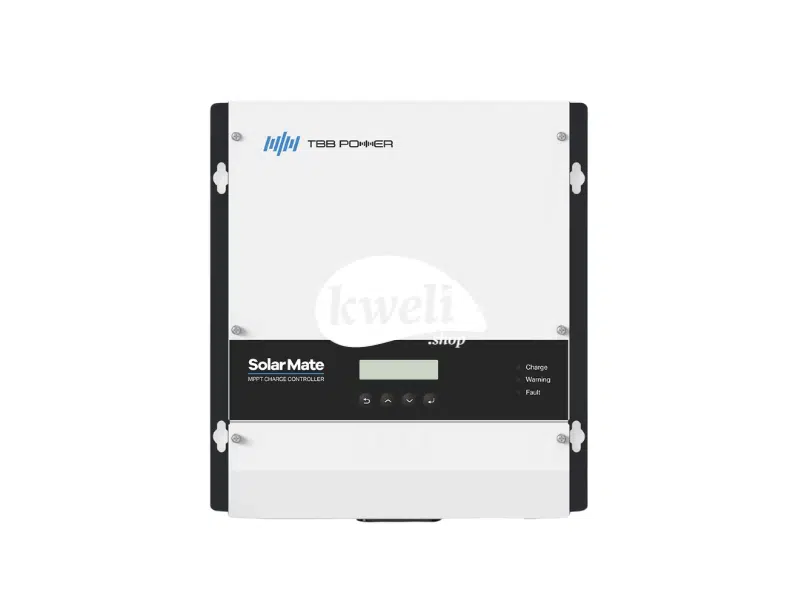

TBB SolarMate 150V 80A MPPT Solar Charge Controller SP150-80; 24V/48V, Bluetooth LCD Display, High Efficiency, 3000W/6000W, 150Vpv Input MPPT Charge controllers 4
FREE DELIVERY
1 YEAR WARRANTY

TBB SolarMate 150V 80A MPPT Solar Charge Controller SP150-80; 24V/48V, Bluetooth LCD Display, High Efficiency, 3000W/6000W, 150Vpv Input

Original price was: UGX1,700,000.Current price is: UGX1,590,000.

TBB SolarMate 150V 80A MPPT Solar Charge Controller SP150-80

  • Nominal Battery Voltage: Compatible with 24V and 48V systems.
  • Maximum Charging Current: 80 Amperes.
  • Maximum PV Input Power:
    • 24V system: up to 4,500W
    • 48V system: up to 9,000W
  • Maximum PV Input Voltage: 150V.
  • MPPT Voltage Range: 65V to 145V.
  • Maximum Efficiency: Up to 98%.
  • MPPT Efficiency: Up to 99.9%.

Charging Parameters:

  • Absorption Charge Voltage:
    • 24V system: 28.8V
    • 48V system: 57.6V
  • Float Charge Voltage:
    • 24V system: 27.0V
    • 48V system: 54.0V
  • Charging Algorithm: TBB Premium III multistage charging, suitable for various lead-acid and lithium-ion battery types.

Physical Specifications:

  • Dimensions: 353 mm (H) x 293 mm (W) x 117 mm (D).
  • Weight: 7.8 kg.
  • Protection Class: IP21.
  • Operating Temperature Range: -25°C to +60°C.
  • Humidity: 5% to 95% (non-condensing).
Categories , ,
Post on Faacebook
Post on X
Share via WhatsApp
Print
Send via Email

Description

TBB SolarMate 150V 80A MPPT Solar Charge Controller SP150-80

  • High Efficiency:

    • Dynamic MPPT efficiency exceeding 99.9%.
    • Overall efficiency up to 98%, with European weighted efficiency up to 97.3%.

  • High Power Capacity:

    • Capable of charging up to 7,056W at 40°C.

  • Optimised Solar Performance:

    • Excellent performance in low solar insulation and at sunrise.
    • Wide MPPT operating voltage range for flexibility in panel configurations.

  • Battery Compatibility:

    • Built-in TBB Premium II battery charging algorithm.
    • Supports both lead-acid and lithium-ion batteries.

  • Data Logging:

    • Supports 365 days of historical data logging.
    • Tracks system performance, including solar array voltage, battery voltage, and power output.

  • Parallel Operation:

    • Up to 6 units can operate in parallel for higher power setups.

  • Communication and Control:

    • RS485 interface with support for auxiliary contacts and T-Bus communication..



Additional information

Weight 7.8 kg
Dimensions 11.7 × 29.3 × 35.3 cm

Brand

TBB Power

Founded in 2007 and headquartered in Xiamen, China, TBB Power is a globally recognized brand specializing in advanced power conversion and energy management systems. With over 15 years of experience, TBB Power offers a comprehensive range of solutions for residential, commercial, and industrial energy needs, serving clients across more than 50 countries.

TBB Power offers a versatile product range designed to meet diverse energy needs, including advanced hybrid inverters that seamlessly integrate solar, grid, and generator power for uninterrupted supply; high-performance MPPT solar charge controllers to maximise solar energy harvesting; and reliable energy storage systems that ensure efficient power usage and 24/7 availability. Whether for off-grid, hybrid, or backup power applications, TBB Power's solutions are built to deliver sustainability, efficiency, and reliability.
