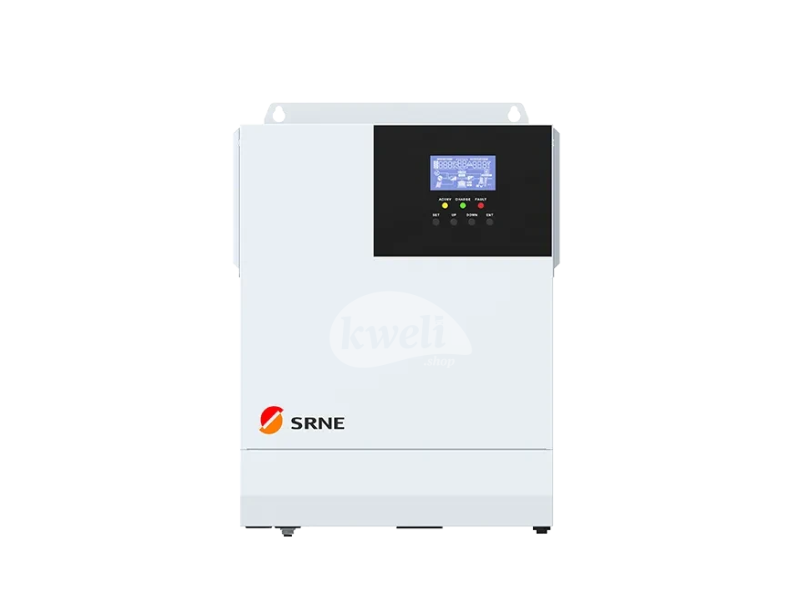

SRNE 3.3kVA/3.3kW 24V Hybrid Inverter HF2430S80-H; Built-in 80A MPPT Solar Charge Controller 4,000Wp/500Voc/120-500V, Pure Sine Wave Output Hybrid Inverters 4
FREE DELIVERY
1 YEAR WARRANTY

SRNE 3.3kVA/3.3kW 24V Hybrid Inverter HF2430S80-H; Built-in 80A MPPT Solar Charge Controller 4,000Wp/500Voc/120-500V, Pure Sine Wave Output

Original price was: UGX1,900,000.Current price is: UGX1,690,000.

SRNE 3kVA/3kW 24V Hybrid Inverter HF2430S60-100

  • 24V Battery Compatibility: Works seamlessly with both lead-acid and lithium-ion batteries.
  • Multiple Charging & Load Modes: Offers various configurations to maximize energy efficiency.
  • Efficient MPPT Solar Charging: Supports up to 4,000W PV power with a 99.9% MPPT efficiency.
  • Hybrid Charging Support: Charges batteries via solar, grid, or generator with a maximum of 80A hybrid charging.
  • Fast & Stable Power Output: Provides pure sine wave output, ensuring safe operation for sensitive appliances.
  • Seamless Power Switching: 10 ms switchover between power sources for uninterrupted operation.
  • Comprehensive Protection System: built-in protections for overvoltage, short circuits, overload, overheating, and anti-reverse charging.
  • Remote Monitoring & Control: Supports RS485, CAN, USB, and optional Wi-Fi/GPRS for monitoring system performance.
  • Compact & Lightweight Design: Space-saving (378mm x 280mm x 103mm) and lightweight (6.9kg) for easy installation.
  • Wide Operating Temperature: Functions in -10°C to 55°C, making it suitable for diverse environments.
Categories , ,
Post on Faacebook
Post on X
Share via WhatsApp
Print
Send via Email

Description

SRNE 3.3kVA/3.3kW 24V Hybrid Inverter HF2430S80-H

General Specifications

  • Model: HF2430S60-100
  • Rated Power: 3kVA / 3kW
  • Nominal Battery Voltage: 24V
  • Inverter Type: Pure Sine Wave
  • Cooling: Forced air cooling with variable-speed fan

Inverter Mode

  • Rated Output Voltage: 230Vac ±5%
  • Output Frequency: 50Hz ±0.3Hz / 60Hz ±0.3Hz
  • Efficiency: >92%
  • Peak Power: 6,000W
  • Overload Protection:
    • 102% < Load < 125%: Shutdown after 5 minutes
    • 125% < Load < 150%: Shutdown after 10 seconds
    • Load >150%: Shutdown after 5 seconds
  • Output Short Circuit Protection: Circuit breaker

AC Mode

  • Rated Input Voltage: 220/230Vac
  • Input Voltage Range: (170Vac~280Vac) ±2% / (90Vac-280Vac) ±2%
  • Input Frequency: 50Hz / 60Hz (Auto Detection)
  • Bypass Mode Efficiency: >95%
  • Bypass Overload Current: 30A
  • AC Reverse Protection: Available
  • Conversion Time (Bypass to Inverter): 10ms (typical)

MPPT Solar Charge Controller

  • Maximum PV Open Circuit Voltage (Voc): 100Vdc
  • MPPT Operating Voltage Range: 30V – 95Vdc
  • PV Input Voltage Range: 30V – 100Vdc
  • Maximum PV Input Power: 1400W
  • Maximum PV Input Current: 60A
  • MPPT Efficiency: 99.9%
  • PV Charging Short Circuit Protection: Blown fuse
  • Reverse Polarity Protection: Available

Battery & Charging

  • Battery Voltage Range: 18V – 33Vdc
  • Battery Type Compatibility: Lead-acid and Lithium
  • Maximum AC Charge Current: 60A
  • Charge Current Accuracy: ±5A
  • Overcharge Protection: Circuit breaker and blown fuse
  • Lithium Battery Activation: Supported via both PV and Mains

Design & Connectivity

  • User Interface: LCD Display + LED Indicators + Touch Buttons
  • Communication Interfaces: USB, RS485 (Supports Bluetooth, WiFi, GPRS), CAN
  • Dry Node Control: Available
  • Dimensions (L × W × D): 378mm × 280mm × 103mm
  • Net Weight: 6.2kg

Environmental & Safety

  • Operating Temperature Range: -15°C to 55°C
  • Storage Temperature Range: -25°C to 60°C
  • Humidity Range: 5% to 95% (Conformal coating protection)
  • Noise Level: ≤60dB
  • Protection Features:
    • Overload Protection
    • Short Circuit Protection
    • Over-Voltage/Under-Voltage Protection
    • Battery Reverse Polarity Protection
    • Intelligent Power Saving Mode

Certification

  • Safety Standard: CE (EN62109-1)
  • EMC Compliance: EN61000

Brand

SRNE Inverters, Chargers and Batteries
