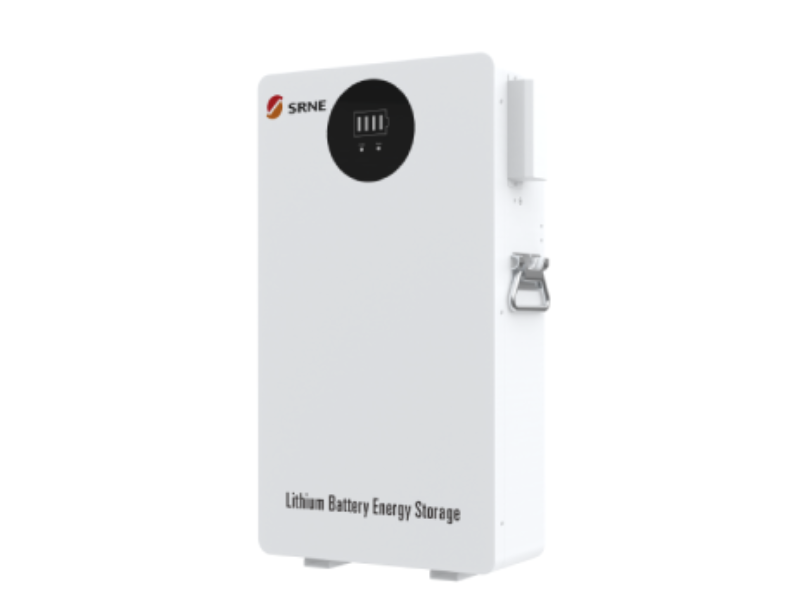

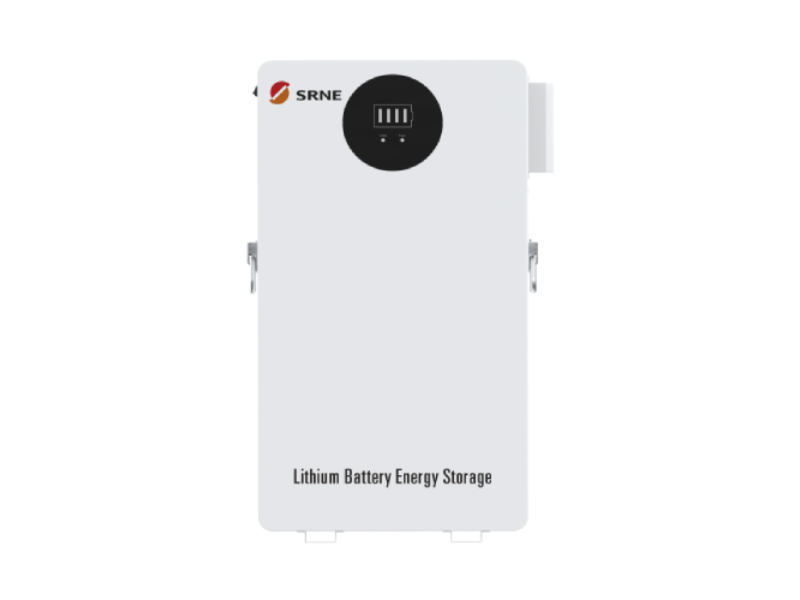

SRNE 16.07kWh 51.2V Lithium Battery SE16B-Pro; LiFePO₄, 314Ah, 80% DoD, 6000 Cycles, Built-in BMS, Parallel up to 16 Units

SRNE 16.07kWh 51.2V Lithium Battery SE16B-Pro

• 16.07kWh high-capacity lithium battery for solar and backup power storage
• 51.2V battery system for compatible 48V hybrid and off-grid inverters
• 314Ah rated capacity for longer backup time
• LiFePO₄ / LFP battery chemistry for safe, long-life energy storage
• 6000-cycle design for dependable long-term use
• Built-in intelligent BMS for battery management and protection
• 150A standard charge and discharge current
• Up to 200A maximum charge and discharge current
• CAN/RS485/USB communication plus WiFi/Bluetooth monitoring support
• Supports parallel expansion up to 16 units

SRNE 16.07kWh 51.2V Lithium Battery SE16B-Pro

The SRNE 16.07kWh 51.2V Lithium Battery SE16B-Pro is a premium high-capacity lithium energy storage battery for homes, offices, shops, clinics, businesses and solar backup systems that need extended backup time.

With 16.07kWh battery energy, 314Ah rated capacity and 51.2V nominal voltage, it is suitable for compatible 48V hybrid and off-grid inverter systems. Its LiFePO₄ lithium chemistry provides stable performance, longer service life and better usable capacity than traditional lead-acid battery banks.

The SE16B-Pro includes an intelligent Battery Management System, supports inverter communication through CAN/RS485/USB, offers WiFi/Bluetooth monitoring support, and can be expanded in parallel up to 16 units for larger energy storage installations. SRNE’s official SE Series documentation lists the SE16B-Pro under the SE battery range with 16.07kWh capacity, 314Ah rating and 1-16 unit parallel support.

Best For

The SRNE SE16B-Pro is best for homes, offices, shops, clinics, small businesses and larger solar backup systems that need long backup time from a single high-capacity lithium battery. It is suitable for essential and moderate loads such as lights, TVs, fridges, routers, CCTV, computers, office equipment and other appliances when connected to a properly sized inverter system.

Battery Overview

• Brand: SRNE
• Model: SE16B-Pro
• Product type: Lithium energy storage battery
• Rated voltage: 51.2V
• Rated capacity: 314Ah
• Battery energy: 16.07kWh
• Battery type: Lithium battery
• Battery chemistry: LiFePO₄ / LFP
• Cycle life: 6000 cycles
• Recommended depth of discharge: 80%
• Maximum parallel capacity: Up to 16 units

Charge & Discharge

• Maximum charging voltage: 57.6V
• Over-discharge voltage: 44.8V
• Standard charge current: 150A
• Standard discharge current: 150A
• Maximum charge current: 200A
• Maximum discharge current: 200A
• Peak charge/discharge current: 240A for 3 seconds
• Breaker current: 240A

Communication & Monitoring

• Built-in BMS: Yes
• Communication: CAN / RS485 / USB
• WiFi monitoring: Supported
• Bluetooth monitoring: Supported
• App monitoring: Supported
• BMS communication: Supported, subject to inverter compatibility

Installation & Physical Details

• Installation type: Wall mount / floor mount
• Weight: 127kg
• Dimensions: 837 × 380 × 253mm
• Cooling method: Natural cooling
• Protection degree: IP30
• Charging temperature range: 0°C to 45°C
• Discharging temperature range: -10°C to 45°C
• Storage condition: 6 months at 25°C, 3 months at 35°C, 1 month at 45°C

Standards

• Transportation: UN38.3, MSDS
• Safety: IEC 62619:2017, EN IEC 61000-6

The SRNE SE16B-Pro is designed for 48V-class inverter systems that support 51.2V lithium batteries. It can work with compatible hybrid and off-grid inverters, subject to correct battery voltage settings, charge/discharge current limits and communication protocol support.

For lithium communication, confirm that your inverter supports the battery’s CAN/RS485 protocol. Where direct communication is not available, some inverters may still allow configuration using user-defined lithium battery settings.

This battery is suitable for compatible SRNE inverters and other inverter brands that support 51.2V LiFePO₄ battery banks.

• This is a battery only. It does not include an inverter or solar panels.
• Confirm that your inverter supports 51.2V / 48V-class lithium batteries.
• For lithium communication, confirm CAN/RS485 compatibility with your inverter brand and model.
• Battery backup time depends on your connected appliances and total power consumption.
• For larger systems, the battery can be expanded in parallel up to 16 compatible units.
• The IP30 protection rating means it should be installed indoors or in a protected equipment area.
• Installation should include correct battery cables, breakers, protection devices, earthing and inverter battery settings.
• Use a qualified solar technician for installation and configuration.
