-16%
Monocrystalline Solar Panels, Solar Panels

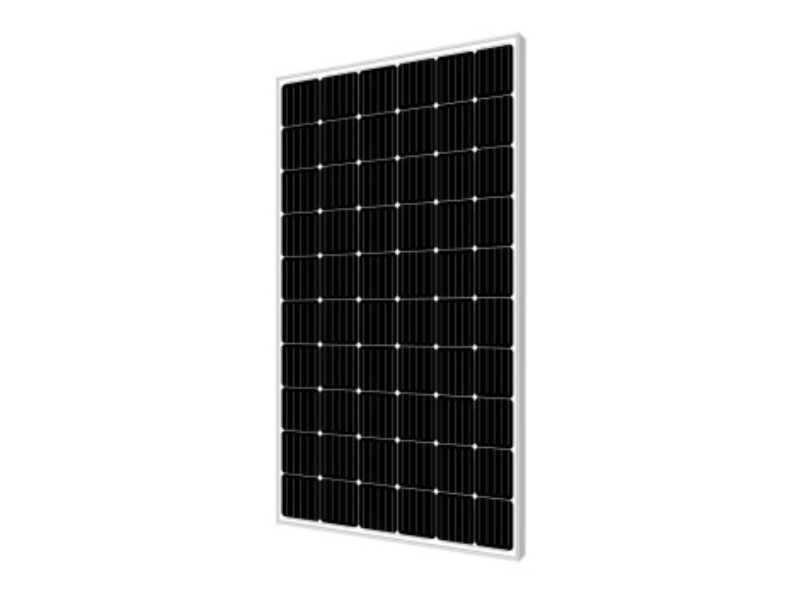

SOLARBORN 190Watts 12V Monocrystalline Solar Panel
Availability:
Out of stock
SOLARBORN 190Watts 12V Monocrystalline Solar Panel
- Mono Power: 190 watts 12 Volts
- Model:
- Cell Type: Monocrystalline
- Dimensions:
- Current at Max Power IMP:
- Short-Circuit Current(ISC):
- Voltage Open Circuit-Voc (V):
- Voltage Mpp-Vmppp(V):
- Module Efficiency (%): 21.3%
UGX 319,000 UGX 379,000
Out of stock
Based on 0 reviews
Only logged in customers who have purchased this product may leave a review.
Related products
-
Bifacial Solar Panels, Monocrystalline Solar Panels, Solar Panels
TW Solar 610-Watt N-type Monocrystalline Half-cell Bifacial Solar Panel 66HD610; Voc 48.70 V, Vmp 40.48 V, Imp 15.07 A, Isc 15.94 A, 22.6 % Efficiency
Bifacial Solar Panels, Monocrystalline Solar Panels, Solar PanelsTW Solar 610-Watt N-type Monocrystalline Half-cell Bifacial Solar Panel 66HD610; Voc 48.70 V, Vmp 40.48 V, Imp 15.07 A, Isc 15.94 A, 22.6 % Efficiency
TW Solar 610-Watt N-type Monocrystalline Half-cell Bifacial Solar Panel
- N-type bifacial half-cell technology delivers higher energy yield and superior efficiency.
- Dual-glass construction enhances module strength and long-term durability.
- Lower LCOE achieved through reduced degradation and excellent temperature performance.
- Performs reliably in hot, humid, and dusty conditions.
- Engineered for utility-scale, commercial, and industrial solar applications.
Technical Specifications
- Model: TWMNH-66HD610
- Cell Type: N-type Monocrystalline (TNC)
- Cell Configuration: 132 (6×22) Half-cells
- Maximum Power (Pmax): 610 W
- Open-Circuit Voltage (Voc): 48.70 V
- Voltage at Maximum Power (Vmp): 40.48 V
- Current at Maximum Power (Imp): 15.07 A
- Short-Circuit Current (Isc): 15.94 A
- Module Efficiency: 22.6 %
- Power Tolerance: 0 ~ +3 %
- Maximum System Voltage: 1500 V DC
- Maximum Series Fuse Rating: 30 A
- Operating Temperature: –40 °C to +70 °C
Mechanical Data
- Dimensions: 2382 × 1134 × 30 mm
- Weight: 32.5 kg
- Front Glass: 2.0 mm AR-coated semi-tempered glass
- Rear Glass: 2.0 mm semi-tempered glass
- Frame: Anodised aluminium alloy
- Junction Box: IP68 with 3 bypass diodes
- Cable: 4.0 mm² (+400 mm / –200 mm, customisable length)
- Wind / Snow Load: 2400 Pa / 5400 Pa
- Modules per Pallet: 36 pcs
- Modules per 40′ HC Container: 720 pcs
Performance & Reliability
- Temperature Coefficient of Pmax: –0.28 % / °C
- Temperature Coefficient of Voc: –0.24 % / °C
- Temperature Coefficient of Isc: +0.046 % / °C
- Bifaciality Coefficient (Pmax): 80 ± 5 %
- First-Year Power Degradation: ≤ 1 %
- Annual Degradation (after first year): ≤ 0.4 %
Expected Power Retention after 30 Years: ≈ 87.4 %
-
Certifications: IEC 61215 (2021), IEC 61730 (2023), IEC 62804 (PID), IEC 61701 (Salt Mist), IEC 62716 (Ammonia), IEC 60068-2-68 (Sand); ISO 9001, ISO 14001, ISO 45001, ISO 50001
SKU: n/a -
Monocrystalline Solar Panels, Solar Panels
Jinko Solar 475-Watt 24V Monocrystalline Solar Panel JKM475N-60H; Voc 42.54V, Vmp 35.21V, Imp 13.49A, Isc 14.23A, Module efficiency of 22.01%
-24%
Monocrystalline Solar Panels, Solar PanelsJinko Solar 475-Watt 24V Monocrystalline Solar Panel JKM475N-60H; Voc 42.54V, Vmp 35.21V, Imp 13.49A, Isc 14.23A, Module efficiency of 22.01%
Jinko Solar 475-Watt 24V Monocrystalline Solar Panel JKM475N-60H
- High Module Efficiency: 22.01% efficiency, optimising power generation on limited space.
- N-type Monocrystalline Cells: Enhanced performance and reduced degradation over time.
- SMBB (Small Multi-Busbar) Technology: Improves power efficiency by reducing internal resistance losses.
- Enhanced Durability: Resistant to high wind loads (up to 2400 Pa) and snow loads (up to 5400 Pa).
- PID Resistance: Anti-Potential Induced Degradation technology for long-term reliability.
- Advanced Temperature Coefficients: Minimises power loss in higher temperatures (-0.29%/°C for Pmax).
- Robust Construction: Features IP68-rated junction box, anodized aluminium frame, and anti-reflection coated glass.
- Extended Warranties: 12-year product warranty and 30-year linear power warranty.
Key data:
- Maximum Power (Pmax): 475 Wp
- Module Efficiency: 22.01%
- Maximum Power Voltage (Vmp): 35.21 V
- Maximum Power Current (Imp): 13.49 A
- Open-Circuit Voltage (Voc): 42.54 V
- Short-Circuit Current (Isc): 14.23 A
Mechanical Characteristics:
- Dimensions: 1903 mm x 1134 mm x 30 mm
- Weight: 24.2 kg
- Cell Type: N-type monocrystalline
- Number of Cells: 120 (6×20)
- Front Glass: 3.2 mm, anti-reflection coating, high transmission, low iron, tempered glass
- Frame: Anodized aluminium alloy
- Junction Box: IP68 rated
- Output Cables: TUV 1×4.0 mm², with lengths of (+): 400 mm and (-): 200 mm (customizable)
Performance Under Standard Test Conditions (STC):
- Operating Temperature Range: -40°C to +85°C
- Maximum System Voltage: 1000/1500 VDC (IEC)
- Maximum Series Fuse Rating: 25 A
- Power Tolerance: 0~+3%
- Temperature Coefficients:
- Pmax: -0.29%/°C
- Voc: -0.25%/°C
- Isc: +0.045%/°C
SKU: n/a -
Bifacial Solar Panels, Monocrystalline Solar Panels, Solar Panels
Jinko Solar 590‑Watt Monocrystalline Solar Panel JKM590N‑78HL4; Voc 54.76V, Vmp 44.91V, Imp13.14A, Isc13.71A, Module efficiency of 21.11 %
Bifacial Solar Panels, Monocrystalline Solar Panels, Solar PanelsJinko Solar 590‑Watt Monocrystalline Solar Panel JKM590N‑78HL4; Voc 54.76V, Vmp 44.91V, Imp13.14A, Isc13.71A, Module efficiency of 21.11 %
Jinko Solar 590‑Watt Monocrystalline Solar Panel JKM590N‑78HL4
Electrical Characteristics
- Maximum Power (Pₘₐₓ): 590 W
- Maximum Power Voltage (Vₘₚ): 44.91 V
- Maximum Power Current (Iₘₚ): 13.14 A
- Open‑circuit Voltage (Vₒc): 54.76 V
- Short‑circuit Current (Iₛc): 13.71 A
- Module Efficiency (STC): 21.11 %
- Power Tolerance: 0 % to +3 %
- Temperature Coefficient of Pₘₐₓ: –0.30 %/°C
- Temperature Coefficient of Vₒc: –0.25 %/°C
- Temperature Coefficient of Iₛc: +0.046 %/°C
- Nominal Operating Cell Temperature (NOCT): 45 ± 2 °C
Mechanical Characteristics
- Cell Type / Count: N‑Type mono‑crystalline, 156 cells (2×78)
- Dimensions (L × W × H): 2 465 × 1 134 × 35 mm
- Weight: 34.6 kg
- Front/Back Glass: 2.0 mm heat‑strengthened
- Frame: Anodised aluminium alloy
- Junction Box: IP68 rated
- Output Cables: 1×4.0 mm² (+): 400 mm, (–): 200 mm
System Limits
- Maximum System Voltage: 1,500 V DC
- Maximum Series Fuse Rating: 30 A
- Operating Temperature Range: –40 °C to +85 °C
- Wind Load Capacity: 2,400 Pa
- Snow Load Capacity: 5,400 Pa
Key Features & Warranty
- SMBB Technology for enhanced light trapping and current collection
- Hot 2.0 Technology minimising LID/LETID
- Excellent anti‑PID performance
- Bifacial dual‑glass construction for rear‑side yield gain
- 12-Year product warranty
SKU: n/a -
Monocrystalline Solar Panels, Solar Panels
Jinko Solar 440‑Watt Monocrystalline Solar Panel JKM440N‑54HL4R‑V; Vmp 32.81 V, Imp 13.41 A, Voc 39.38 V, Isc 13.86 A, Module efficiency of 22.02 %
Monocrystalline Solar Panels, Solar PanelsJinko Solar 440‑Watt Monocrystalline Solar Panel JKM440N‑54HL4R‑V; Vmp 32.81 V, Imp 13.41 A, Voc 39.38 V, Isc 13.86 A, Module efficiency of 22.02 %
Jinko Solar 440‑Watt Monocrystalline Solar Panel JKM440N‑54HL4R‑V
Key Electrical Specifications (STC):
- Maximum Power (Pₘₐₓ): 440 Wp
- Maximum Power Voltage (Vₘₚ): 32.81 V
- Maximum Power Current (Iₘₚ): 13.41 A
- Open‑Circuit Voltage (Vₒc): 39.38 V
- Short‑Circuit Current (Iₛc): 13.86 A
- Module Efficiency: 22.02 %
Performance and Warranty:
- Positive power tolerance: 0 to +3 %
- Annual degradation: 0.40 % over 30 years
Mechanical Characteristics:
- Dimensions: 1,762 × 1,134 × 30 mm
- Weight: 22 kg
- Cell type: N‑type monocrystalline, 108 cells (2 × 54)
Key Features:
- SMBB technology for enhanced light trapping and reliability
- Hot 2.0 technology for lower LID/LETID and improved long‑term performance
- Excellent PID resistance
- Certified for 4,000 Pa wind load and 6,000 Pa snow load
SKU: n/a
