1 YEAR WARRANTY

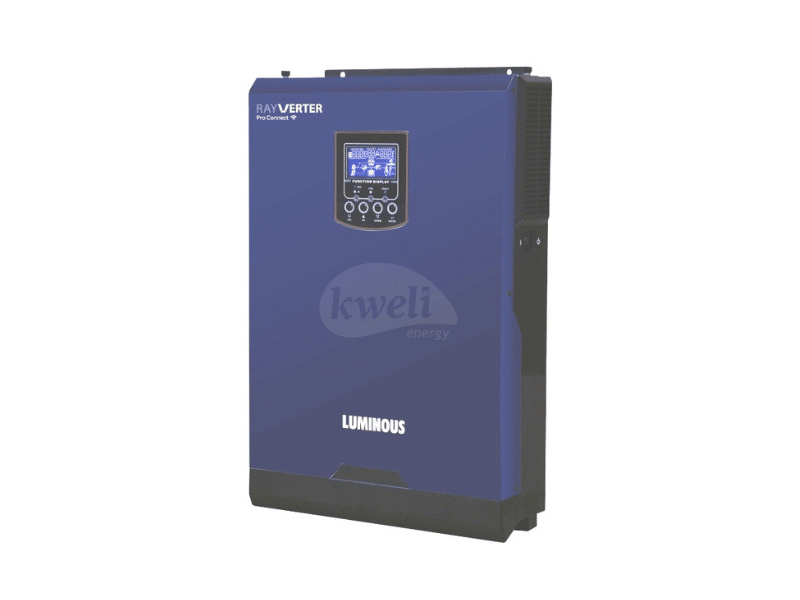

Luminous Rayverter Pro Connect 3KVA/3KW 24V Off-Grid Solar Inverter; Built-in 100A MPPT Solar Charge Controller, 3000W PV Input, 450V Voc, 60-400V MPPT Range, Pure Sine Wave Output

Original price was: UGX1,800,000.Current price is: UGX1,690,000.

Luminous Rayverter Pro Connect 3KVA/3KW 24V Solar Inverter Specifications:

  • Rated Power: 3000VA / 3000W
  • AC Output Voltage: 230VAC ± 5%
  • Output Waveform: Pure Sine Wave
  • Frequency Range: 50Hz/60Hz (Auto Sensing)
  • Efficiency (Peak): 93%
  • Transfer Time:
    • 10ms (For Personal Computers)
    • 20ms (For Home Appliances)

Battery & Charging:

  • Nominal Battery Voltage: 24VDC
  • Overcharge Protection: 32VDC
  • Maximum AC Charge Current: 100A
  • Battery Equalization Function: Yes (Optimizes Battery Performance & Extends Lifecycle)

MPPT Solar Charge Controller:

  • MPPT Charge Controller Type: MPPT
  • Maximum PV Input Power: 3000W
  • MPPT Voltage Range: 60-400VDC
  • Maximum PV Open Circuit Voltage (Voc): 450VDC
  • Maximum PV Input Current: 100A
  • Maximum Solar Charge Current: 80A

Input & Protection:

  • Selectable Voltage Range:
    • 90-280VAC (For Home Appliances)
    • 170-280VAC (For Personal Computers)
  • Surge Power: 6000VA
  • Protection Features:
    • Overload Protection
    • Short Circuit Protection (Air Switch Protection)
    • Built-in Anti-Dust Kit

Design & Usability:

  • Cooling System: Air Cooling
  • Communication Interface: RS232 / RS485 (Optional WiFi)
  • Operating Temperature: -10°C to 50°C
  • Storage Temperature: -15°C to 60°C
  • Humidity: 5% to 95% Relative Humidity (Non-Condensing)
  • Dimensions (D × W × H): 110 × 288 × 390 mm
  • Net Weight: 7.2 kg
Post on Faacebook
Post on X
Share via WhatsApp
Print
Send via Email

Description

Luminous Rayverter Pro Connect 3KVA/3KW 24V Off-Grid Solar Inverter

Additional information

Weight 7.2 kg
Dimensions 39 × 28.8 × 11 cm

Brand

Luminous Solar

Luminous Solar: Creating a Brighter, More Energized World.

Luminous Power Technologies is a leading and reliable brand specializing in power backup and residential solar solutions. Since its inception in 1988 in India, Luminous has become a global player, providing high-quality products designed to meet the energy needs of homes, businesses, and industries worldwide.

With 7 manufacturing units, over 28 sales offices in India, and a presence in more than 36 countries, Luminous employs over 6000 people and serves more than 60,000 channel partners and millions of customers. The company is renowned for its dedication to quality, innovation, and sustainability, ensuring reliable power during outages and access to clean, renewable energy.

Luminous has earned notable accolades, including the Frost & Sullivan Award for Market Leadership and the MNRE (Ministry of New and Renewable Energy) Award for Outstanding Contribution to Renewable Energy. These awards reflect Luminous’s esteemed position in the power solutions market.

Guided by the motto "Customer Delight through Innovation & Passion," Luminous focuses on execution and teamwork to deliver superior performance, durability, and ease of use. The company continually innovates to enhance comfort and efficiency, offering advanced solar inverters, high-efficiency batteries, and other reliable power solutions.

Experience uninterrupted power and sustainable energy solutions with Luminous – Creating a Brighter, More Energized World.

Luminous Rayverter Pro Connect 3KVA/3KW 24V Off-Grid Solar Inverter; Built-in 100A MPPT Solar Charge Controller, 3000W PV Input, 450V Voc, 60-400V MPPT Range, Pure Sine Wave Output Hybrid Inverters 5
