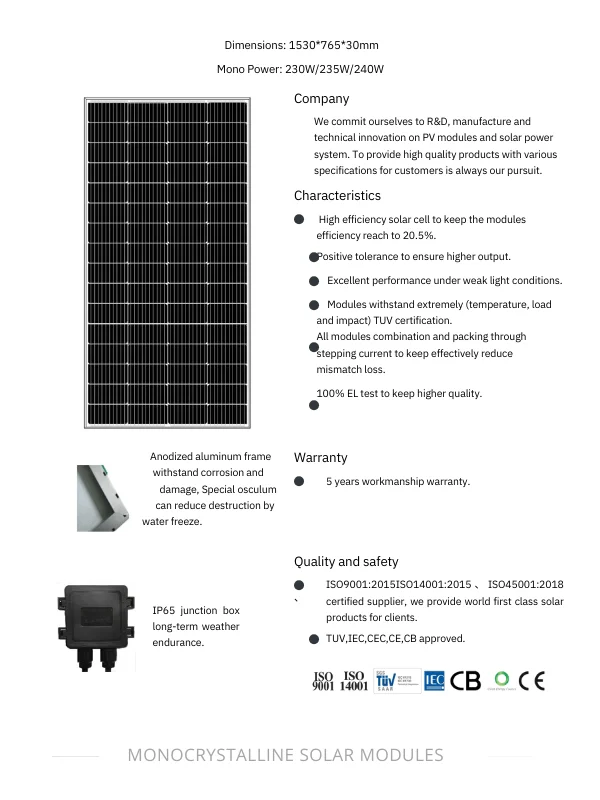

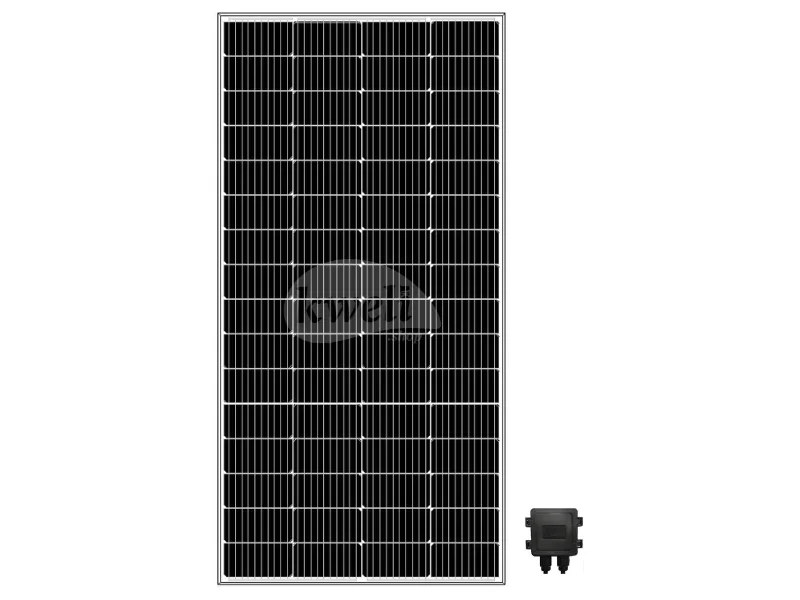

Luminous 230 Watt 12V Monocrystalline Solar Panel – Made in India

• High-efficiency solar cell to keep the efficiency of the module reach to 20.5%.
• Positive tolerance to ensure higher output.
• Excellent performance under weak light conditions.
• Modules withstand extreme (temperature, load and impact) TUV certification.
• All modules combination and packing through stepping current to effectively reduce
  mismatch loss.
• 100% EL test to keep higher quality.

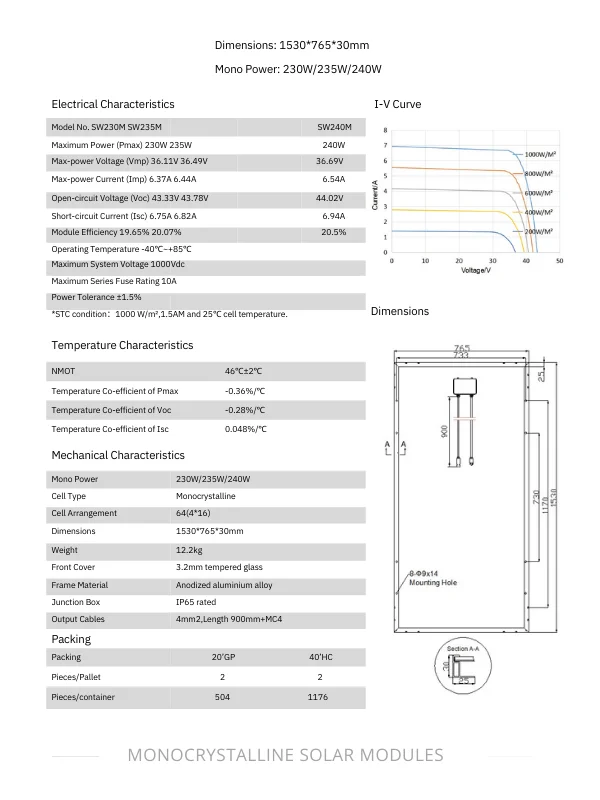

Technical Specifications

• Mono Power: 230W/235W/240W
• Cell Type: Monocrystalline
• Cell Arrangement: 64(4*16)
• Dimensions: 1530*765*30mm
• Weight: 12.2kg
• Front Cover: 3.2mm tempered glass
• Frame Material: Anodized aluminium alloy
• Junction Box: IP65 rated
• Output Cables: 4mm2, Length 900mm+MC4

Packing

• Packing: 20’GP 40’HC
• Pieces/Pallet: 2 2
• Pieces/container: 504 1176

Electrical Characteristics

• Model No: SW230M SW235M SW240M
• Maximum Power (Pmax): 230W 235W 240W
• Max-power Voltage (Vmp): 36.11V 36.49V 36.69V
• Max-power Current (Imp): 6.37A 6.44A 6.54A
• Open-circuit Voltage (Voc): 43.33V 43.78V 44.02V
• Short-circuit Current (Isc): 6.75A 6.82A 6.94A
• Module Efficiency: 19.65% 20.07% 20.5%
• Operating Temperature: -40℃~+85℃
• Maximum System Voltage: 1000Vdc
• Maximum Series Fuse Rating: 10A
• Power Tolerance: ±1.5%
