Luminous 185 Watt 12V Monocrystalline Solar Panel
-33%
Monocrystalline Solar Panels, Solar Panels
Luminous 185 Watt 12V Monocrystalline Solar Panel
Availability:
Out of stock

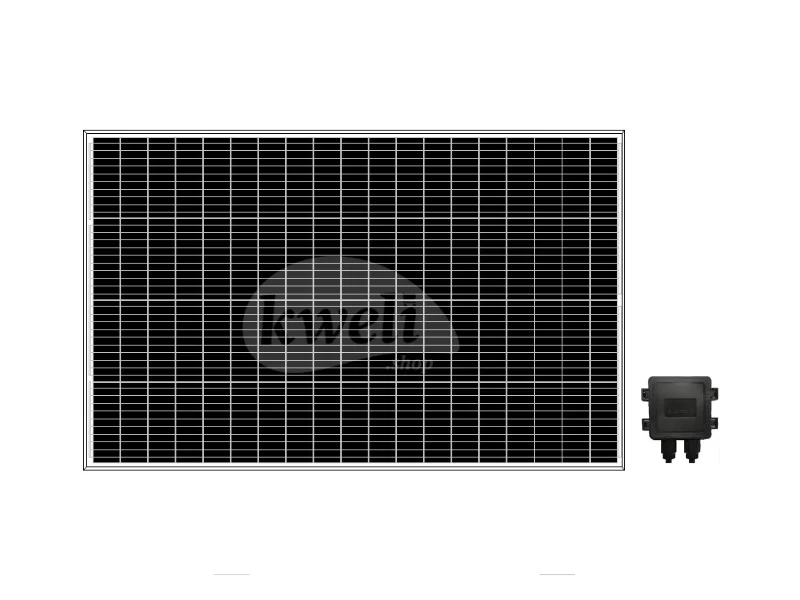

Luminous 185 Watt 12V Monocrystalline Solar Panel

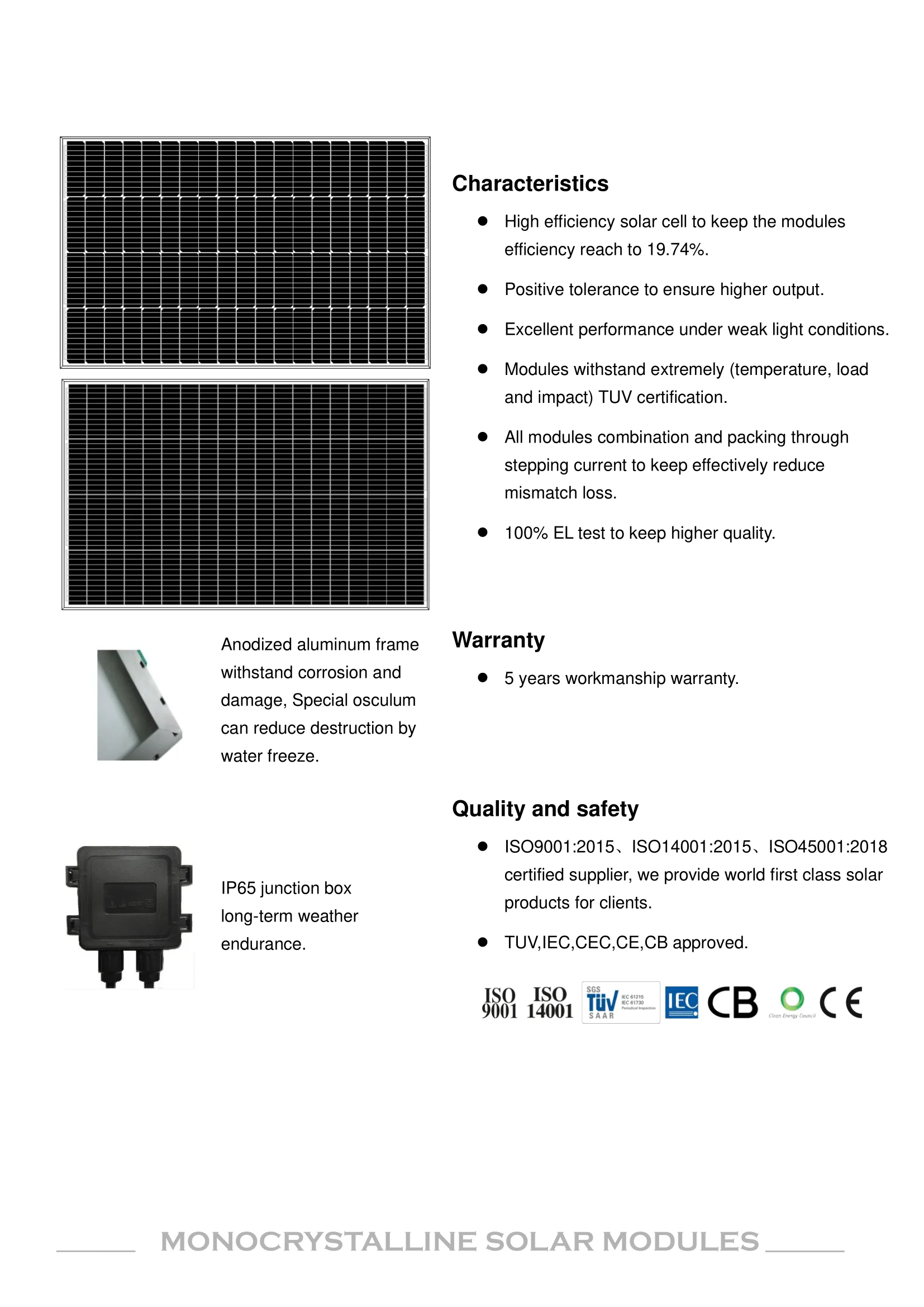

- High-efficiency solar cells to keep the modules efficiency reach to 19.74%.
- Positive tolerance to ensure higher output.
- Excellent performance under weak light conditions.
- Modules withstand extreme (temperature, load and impact) TUV certification.
- All modules combinations and pack through stepping current to effectively reduce mismatch loss.
- 100% EL test to keep higher quality

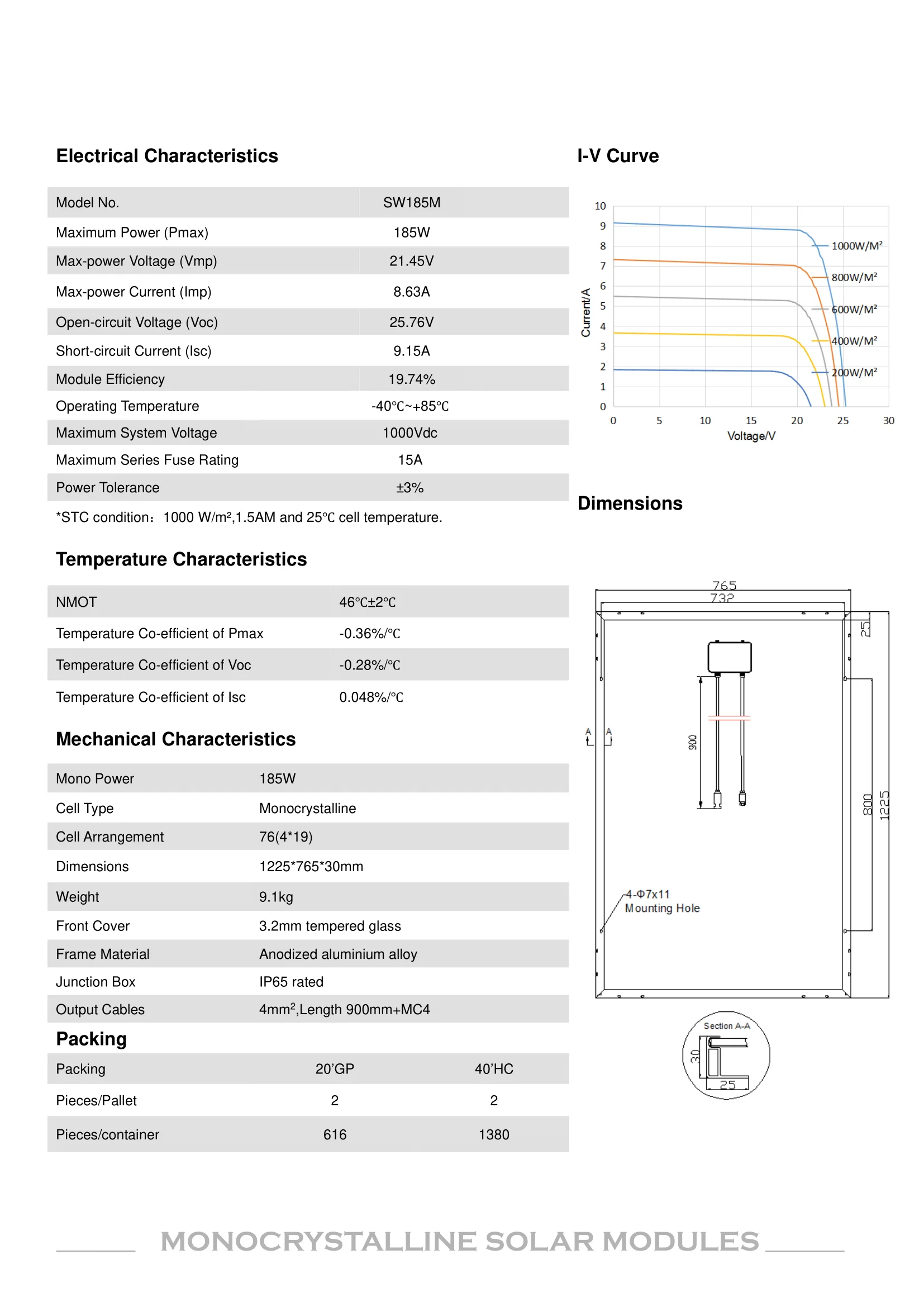

Technical Specifications
- Mono Power 185W
- Cell Type Monocrystalline
- Cell Arrangement 76(4*19)
- Dimensions 1225*765*30mm
- Weight 9.1kg
- Front Cover 3.2mm tempered glass
- Frame Material Anodized aluminium alloy
- Junction Box IP65 rated
- Output Cables 4mm2
- Length 900mm+MC4
- Packing: Packing 20’GP 40’HC
- Pieces/Pallet 2 2
- Pieces/container 616 1380
Temperature Characteristics
- NMOT 46℃±2℃
- Temperature Co-efficient of Pmax -0.36%/℃
- Temperature Coefficient of Voc -0.28%/℃
- Temperature Coefficient of Isc 0.048%/℃
UGX 329,000 UGX 490,000
Out of stock
Based on 0 reviews
Only logged in customers who have purchased this product may leave a review.
