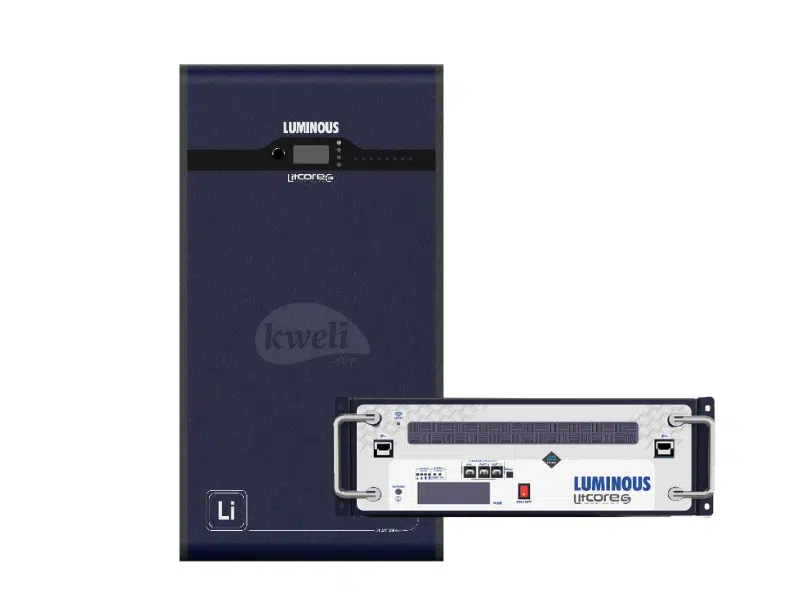

Luminous 100AH 48V 5.12kWh Lithium Phosphate (LiFePO₄) Solar Battery; Built-in BMS, Over 5000 Charge Cycles @25°C, 80% DoD, Scalable Up to 12 Units

Luminous 100AH 48V 5.12kWh Lithium Phosphate (LiFePO₄) Solar Battery specs.

General Specifications

• Battery Type: Lithium Iron Phosphate (LiFePO₄)
• Rated Capacity: 100Ah
• Nominal Voltage: 51.2V
• Usable Energy: 5.12kWh
• Cycle Life: ≥5000 Cycles at 80% DoD

Electrical Specifications

• Operating Voltage Range: 41.6V – 57.6V
• Charge Voltage: 57.6V
• Max Continuous Charge Current: 100A
• Max Continuous Discharge Current: 100A
• Efficiency: ≥90%

Communication & Protection

• Communication Ports: USB, RS485, CAN
• Protection Features: Overvoltage (OV), Undervoltage (UV), Overcurrent (OC), Over-temperature (OT), Short Circuit (SC)

Environmental & Design

• Operating Temperature Range: Charge: 0°C to 45°C, Discharge: -20°C to 55°C
• Storage Temperature: Up to 8 months: -10°C to 35°C, Up to 3 months: -10°C to 45°C, Up to 7 days: -10°C to 65°C
• Humidity: ≤95% Relative Humidity (Non-Condensing)
• Monthly Self-Discharge: ≤3%

Physical Specifications

• Weight: 53 ± 2 kg
• Scalability: Supports up to 12 batteries in parallel
• Display: LCD
• Terminal Type: Positive & Negative M6 OT Terminal, Communication RJ45
