Dyness STACK100 5.12kWh 51.2V LiFePO₄ High-Voltage Lithium Battery Module; 100Ah, 1C Charge/Discharge, CAN/RS485, Cable-Free Stackable Design, Scalable to 921.6kWh, 10-Year Warranty

Dyness STACK100 5.12kWh 51.2V LiFePO₄ High-Voltage Lithium Battery Module

• 5.12kWh lithium battery module: Delivers reliable energy storage in a compact high-voltage module format.
• Safe LiFePO₄ chemistry: Built with lithium iron phosphate cells known for safety, stability, and long service life.
• Scalable to 921.6kWh: Starts small and expands into a much larger storage system for bigger energy needs.
• 100Ah capacity at 51.2V: Gives solid storage performance for demanding residential and commercial applications.
• 1C charge and discharge capability: Supports strong charging and discharging performance for practical daily use.
• Cable-free stackable design: Makes installation cleaner, neater, and more straightforward on site.
• CAN and RS485 communication: Supports integration with compatible inverters and energy storage systems.
• Up to 8000+ cycle life: Designed for long-term use where dependable cycling matters.
• Built-in safety protection: Includes a built-in aerosol fire extinguisher for added protection.
• 10-year warranty: Backed by long warranty coverage for greater peace of mind.

Dyness STACK100 5.12kWh 51.2V LiFePO₄ High-Voltage Lithium Battery Module

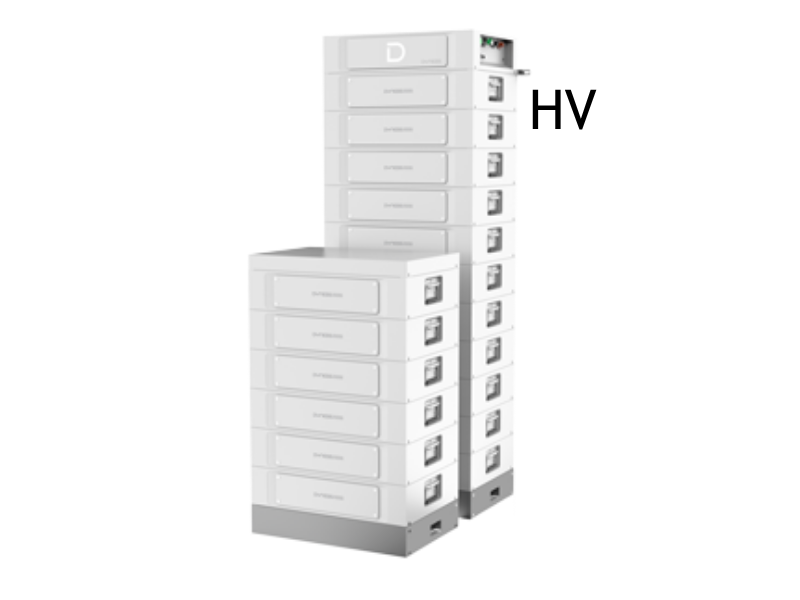

The Dyness STACK100 is a high-voltage LiFePO₄ lithium battery module designed for projects that need dependable storage and room to grow. With 5.12kWh nominal capacity, 51.2V nominal voltage, and 100Ah capacity, it gives you a strong building block for modern solar and backup power systems.

What makes the STACK100 especially attractive is its expandability. A single cluster can be built from 3 to 15 modules, and the system can scale further up to 12 clusters in parallel, reaching a total of 921.6kWh. That makes it suitable not only for larger homes, but also for offices, apartments, schools, shops, and other commercial installations where energy demand may grow over time.

Its cable-free stackable design helps keep installation work cleaner and more organised, while CAN and RS485 communication support easier integration with compatible inverter systems. The battery also supports 1C charge and discharge, giving it the performance needed for real operating conditions rather than just light-duty storage.

The use of LiFePO₄ battery chemistry means better safety, stable performance, and long life. With 95% depth of discharge, 8000+ cycles, and a 10-year warranty, the Dyness STACK100 is built for clients who want a serious storage solution that can serve reliably for years.

• Battery Type: LiFePO₄
• Nominal Energy: 5.12kWh
• Usable Energy: 4.864kWh
• Nominal Voltage: 51.2V
• Nominal Capacity: 100Ah
• Module Configuration per Cluster: 3 to 15 modules
• System Energy Range per Cluster: 15.36kWh to 76.8kWh
• Maximum Scalable Capacity: 921.6kWh
• Parallel Expansion: Up to 12 clusters
• Operating Voltage Range: 134.4V to 864V
• Recommended Charge/Discharge Rate: 0.5C
• Maximum Charge/Discharge Rate: 1C
• Maximum Charge/Discharge Current: 100A
• Peak Discharge Current: 125A for 2 minutes
• Depth of Discharge: 95%
• Communication: CAN / RS485
• Cooling Method: Forced wind cooling
• Protection Level: IP20
• Cycle Life: 8000+ cycles
• Charging Temperature: 0°C to 55°C
• Discharging Temperature: -20°C to 55°C
• User Interface: WiFi + App
• Safety Feature: Built-in aerosol fire extinguisher
• Installation Method: Cable-free stackable design
• Warranty: 10 years
• Dimensions: 590 × 390 × 133 mm
• Weight: 15.3kg
