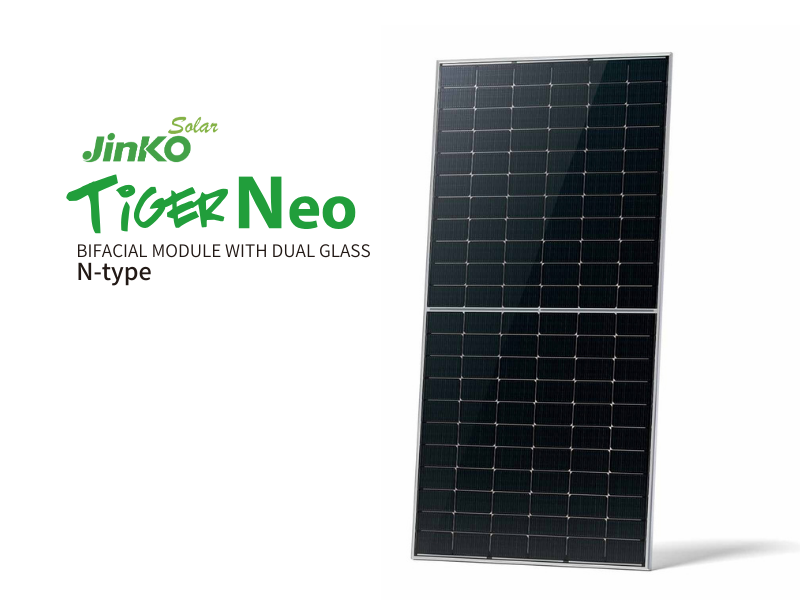

Jinko 625Wp N-Type Bifacial Solar Panel JKM625N
Product Description
The Jinko 625Wp Tiger Neo N-Type Bifacial Solar Panel (JKM625N-66HL4M-BDV) is a high-efficiency dual-glass solar module designed for commercial, industrial, and large residential solar installations. Built with advanced TOPCon N-type cell technology, this panel delivers higher efficiency, improved low-light performance, and lower long-term degradation compared to conventional P-type modules.
Its bifacial dual-glass construction allows the panel to generate electricity from both the front and rear sides, increasing total energy yield when installed over reflective surfaces such as concrete, sand, or light-coloured roofs. This improves overall system output and lowers the long-term cost of solar energy.
The panel is also engineered for durability, with a high mechanical load rating of 5400Pa on the front side and 2400Pa on the rear, making it suitable for demanding environments with strong winds or heavy snow loads. Combined with SMBB technology and Anti-PID protection, the module delivers reliable performance over decades of operation.
With its high efficiency, robust design, and long warranty, the Jinko Tiger Neo 625W panel is an excellent choice for grid-tied, hybrid, and off-grid solar power systems.
Key Features
- N-Type TOPCon Technology – Improved efficiency and reduced degradation.
- Bifacial Dual-Glass Module – Generates additional power from reflected light.
- SMBB Technology – Better current collection and lower electrical losses.
- Anti-PID Protection – Minimises performance loss over time.
- Excellent Low-Light Performance – Produces more energy in cloudy conditions.
- High Mechanical Strength – Designed to withstand heavy environmental loads.
Technical Specifications
Electrical Performance (STC)
- Maximum Power (Pmax): 625W
- Maximum Power Voltage (Vmp): 40.88V
- Maximum Power Current (Imp): 15.29A
- Open Circuit Voltage (Voc): 49.28V
- Short Circuit Current (Isc): 16.14A
- Module Efficiency: 23.14%
- Power Tolerance: 0 ~ +3%
Mechanical Characteristics
- Cell Type: N-type Monocrystalline (TOPCon)
- Number of Cells: 132 (66 × 2)
- Dimensions: 2382 × 1134 × 30 mm
- Weight: 32.4 kg
- Front Glass: 2.0 mm anti-reflection coated glass
- Back Glass: 2.0 mm heat-strengthened glass
- Frame: Anodised aluminium alloy
- Junction Box: IP68 rated
- Output Cable: 4 mm²
Operating Conditions
- Operating Temperature: −40°C to +70°C
- Maximum System Voltage: 1500V DC
- Maximum Series Fuse Rating: 35A
Warranty
- Product Warranty: 12 Years
- Linear Power Warranty: 30 Years
- Annual Degradation: 0.40% after the first year.
Why Buy Solar Panels from Kweli.shop
When you buy solar equipment from Kweli.shop, you are guaranteed:
- Genuine solar products from trusted global manufacturers
- Manufacturer warranty support
- Free delivery within Uganda
- Lifetime after-sales support
