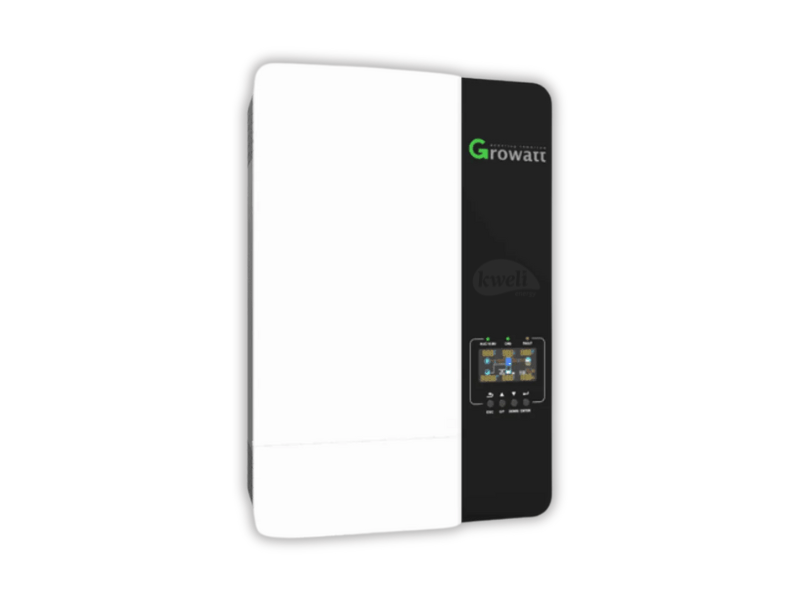

Growatt 3.5kVA 48V Hybrid Inverter SPF 3500 ES; 3.5kW High Frequency Inverter, 450VoC, 120-430VDC, 100A MPPT Solar Charge Controller, Optional WiFi/GPRS, USB

Growatt 3.5kVA 48V Hybrid Inverter SPF 3500 ES; offgrid solar inverter

Features:

• Integrated MPPT Charge Controller: maximises solar energy capture.
• Battery Compatibility: Operates with or without batteries.
• PV Input Voltage: Supports up to 450VDC.
• Remote Monitoring: Optional WiFi/GPRS module for real-time monitoring.
• Grid or Solar Input Priority: Configurable to prioritise grid or solar power.
• Compact Design: Suitable for smaller off-grid setups.
• Pure Sine Wave Output: Ensures high-quality, reliable power.

Specifications:

• Rated Power: 3.5KW
• Nominal DC Input Voltage: 48VDC
• MPPT Voltage Range: 120V-430V
• Maximum Open Circuit Voltage (Voc): 450VDC
• Maximum PV Input Current: 15A
• AC Output Voltage: 230V ± 5% (single phase)
• AC Output Frequency: 50Hz ± 0.5Hz or 60Hz ± 0.5Hz
• Peak Efficiency: 93%
• European Efficiency: 91%
• WIFI/GPRS remote monitoring (optional)
• Battery types: Lead Acid, Lithium
• Dimensions: 375 x 360 x 135mm
• Weight: 10 kg

Protection Features: Includes protection against over-voltage, under-voltage, short circuit, and over-temperature.
