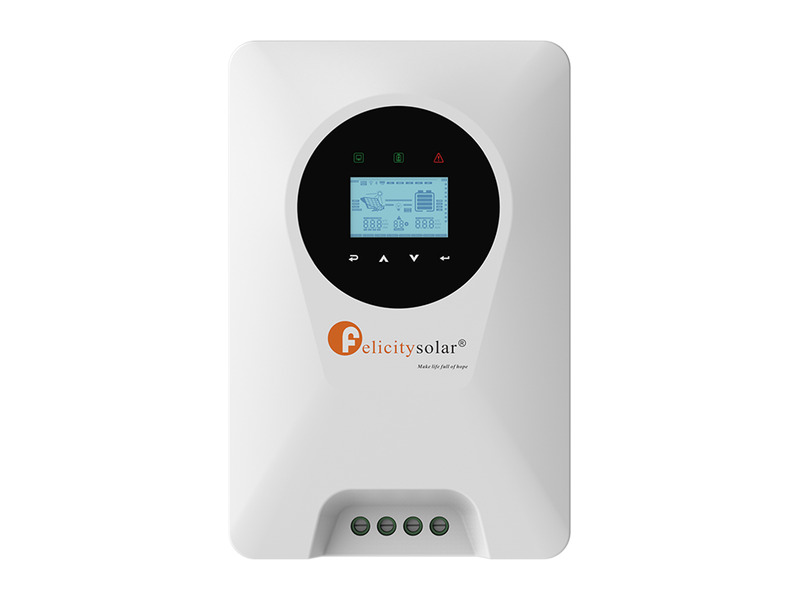

Felicity 60A 12V/24V/48V MPPT Solar Charge Controller SCCM6048-III; 150V PV Max, Up to 3300W PV, Lithium Activation

Felicity 60A 12V/24V/48V MPPT Solar Charge Controller SCCM6048-III

• 60A maximum charging current
• Supports 12V, 24V and 48V battery systems
• 150V maximum PV input voltage
• Up to 825W PV input at 12V
• Up to 1650W PV input at 24V
• Up to 3300W PV input at 48V
• MPPT solar charging technology
• Lithium battery activation function
• Suitable for medium off-grid solar arrays
• 1-year manufacturer warranty

The Felicity SCCM6048-III is a 60A MPPT controller supporting 12V, 24V and 48V battery banks. Its 150V PV input ceiling makes it suitable for longer series strings than the smaller 24V-class controllers.

Use with compatible system voltage, charging architecture and protection equipment. Confirm inverter or controller compatibility before installation.

Select PV string length from module Voc, not only operating voltage. Maintain adequate voltage margin below the 150V controller maximum.
