Description

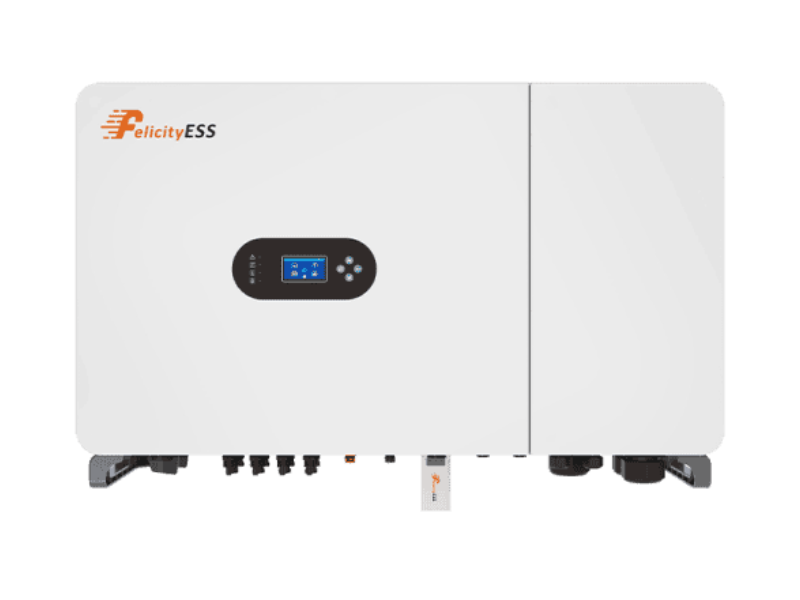

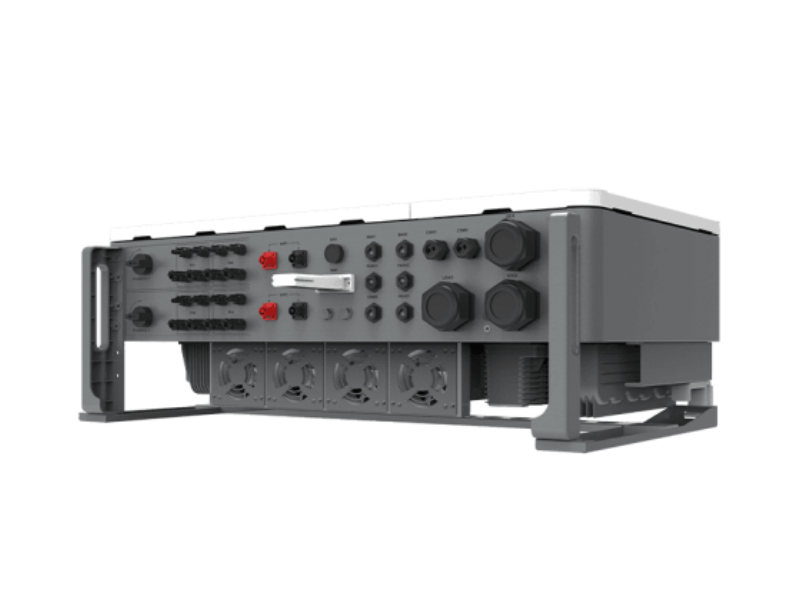

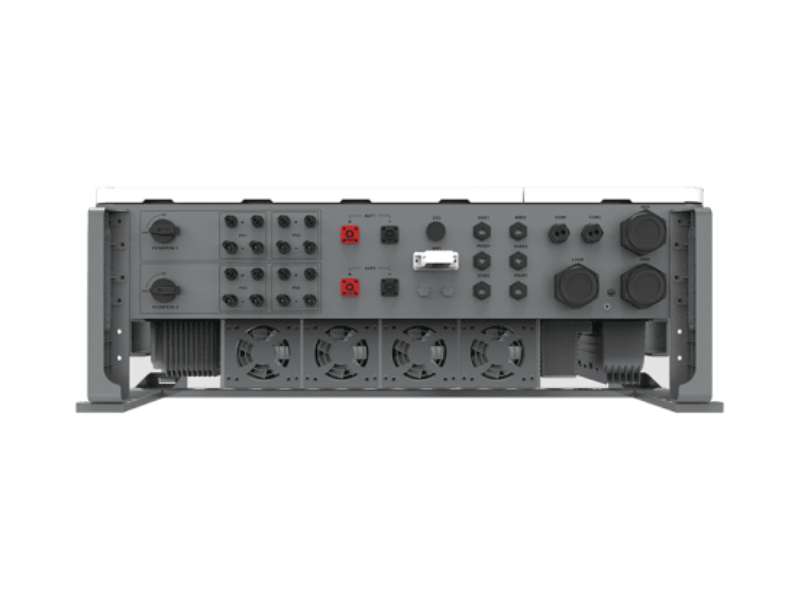

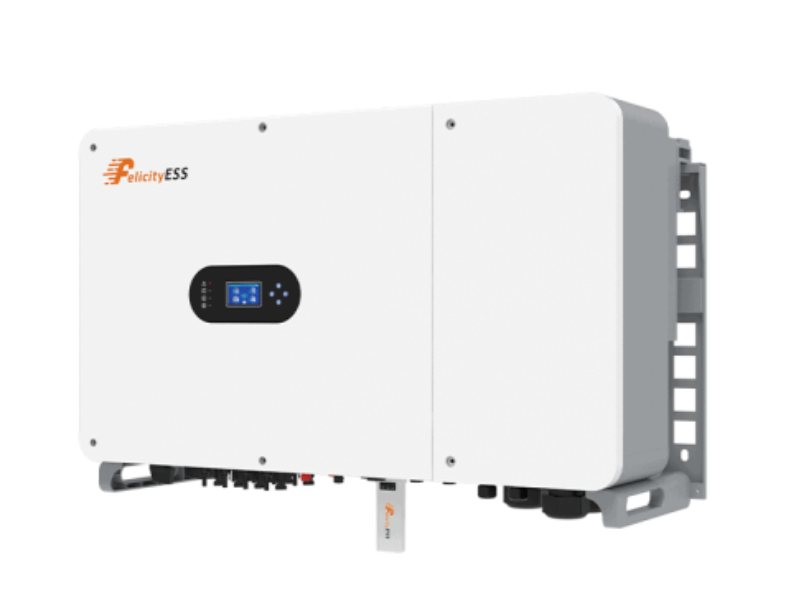

Felicity 50kVA/50kW 3-Phase High Voltage Hybrid Solar Inverter T-REX-50KHP3G01
Technical Specifications
General
- Model: T-REX-50KHP3G01
- Brand: Felicity Solar
- Type: Three-phase high voltage hybrid inverter
- Rated Power Output: 50kW / 50kVA
- Maximum Efficiency: 98.4%
- European Efficiency: 97.6%
- Power Factor: 0.8 lag – 0.8 lead
- THD: <3%
PV Input (DC)
- Maximum PV Power: 75kWp
- Maximum PV Voltage: 1000V DC
- MPPT Voltage Range: 250–850V DC
- Number of MPPTs: 2
- Input Current per MPPT: 30A
- Maximum PV Short Circuit Current: 40A
Battery (DC)
- Battery Voltage Range: 180–750V DC
- Maximum Charge/Discharge Current: 120A
- Compatible Battery Types: Lithium-ion / Lead-acid
AC Output (Grid & Backup)
- Nominal Output Voltage: 400V AC (3-phase, 4-wire + PE)
- Nominal Frequency: 50Hz / 60Hz
- Switch Time (Grid to Battery): ≤10ms
- Backup Output Power: 50kW continuous
Communication & Control
- Interfaces: RS485, CAN, Wi-Fi, optional Ethernet
- Monitoring: Smart Cloud platform and mobile app
- Energy Management System (EMS): Peak shaving, zero export, and time-of-use scheduling
Protection & Safety
- Built-in SPDs (Type II) for AC/DC
- Anti-Islanding (EN 62116 / VDE 0126-1-1)
- Insulation & residual current protection
- Comprehensive electronic protection
Design & Installation
- Cooling: Intelligent forced air cooling
- Enclosure Protection: IP65 (outdoor installation)
- Operating Temperature: –25°C to +60°C
- Relative Humidity: 0–95% (non-condensing)
- Dimensions (W×H×D): 840×600×250mm
- Weight: 82kg
Ideal Applications
- Commercial and industrial hybrid solar systems
- Hospitals, schools, and institutions with critical power needs
- Microgrids and distributed renewable energy systems
- Factories, workshops, and off-grid estates
