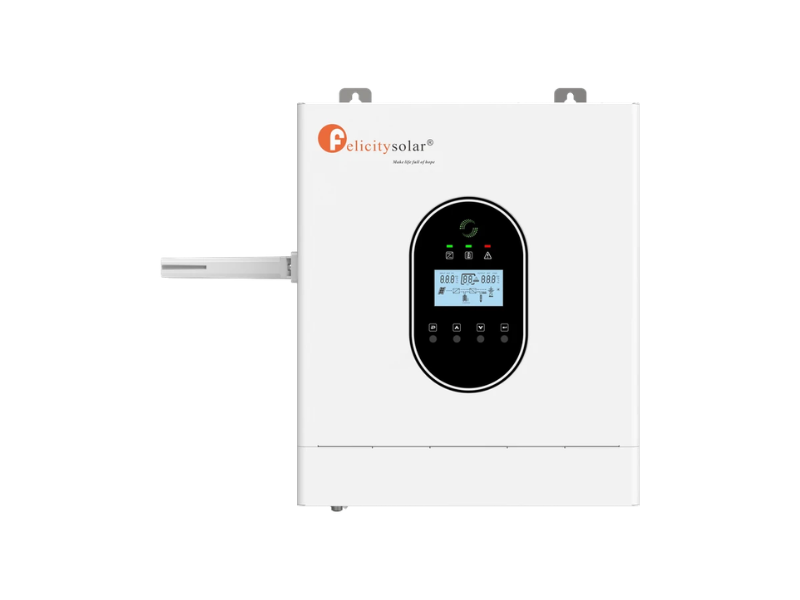

Felicity 1kVA/1kW 12V Single-Phase Off-Grid Solar Inverter IVCM1012-PRO; 800W PV Input, 105V Voc, 15–90V PV Range, 35A PV Input, 60A MPPT Solar Charging, 80A Max Combined Charging

• Rated output power: 1000VA / 1000W
• Nominal battery voltage: 12V
• Phase: Single-phase
• Output waveform: Pure sine wave
• Maximum PV input power: 800W
• Maximum PV open-circuit voltage: 105V
• PV working voltage range: 15–90V
• Maximum PV input current: 35A
• Solar charge controller: Built-in MPPT
• Maximum solar charging current: 60A

Felicity 1kVA/1kW 12V Single-Phase Off-Grid Solar Inverter IVCM1012-PRO integrates solar PV charging, battery management and AC power conversion. Review the verified model-specific ratings below when sizing solar strings, battery systems and protection equipment.

General Specifications

• Rated output power: 1000VA / 1000W
• Nominal battery voltage: 12V
• Phase: Single-phase
• Output waveform: Pure sine wave

Solar PV Input

• Maximum PV input power: 800W
• Maximum PV open-circuit voltage: 105V
• PV working voltage range: 15–90V
• Maximum PV input current: 35A
• Solar charge controller: Built-in MPPT

Battery & Charging

• Maximum solar charging current: 60A
• Maximum combined PV + grid charging current: 80A

AC Input & Output

• AC input: Utility / generator
• AC input operating range: 90–280Vac

Key Functions

• Cold start
• LCD-configurable charging and source priority
• Overload, over-temperature and short-circuit protection

Match the actual array cold-weather Voc, operating voltage, string current and PV wattage to these limits. Select compatible batteries, charge/discharge current capability, AC wiring, DC protection, surge protection and earthing. Confirm the exact hardware revision before commissioning.
