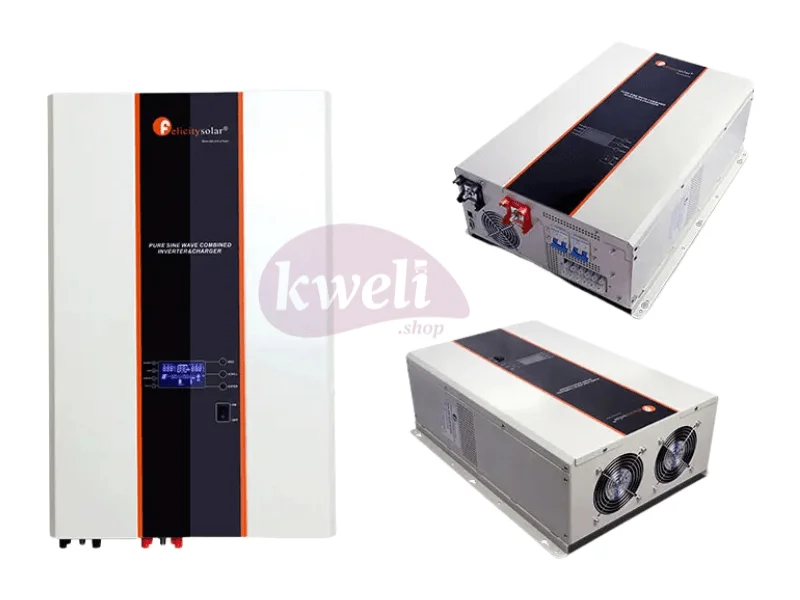

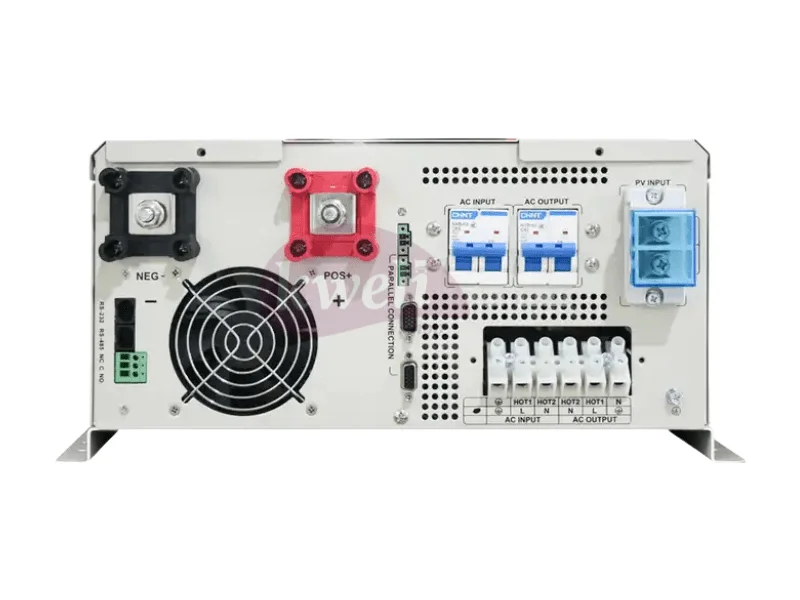

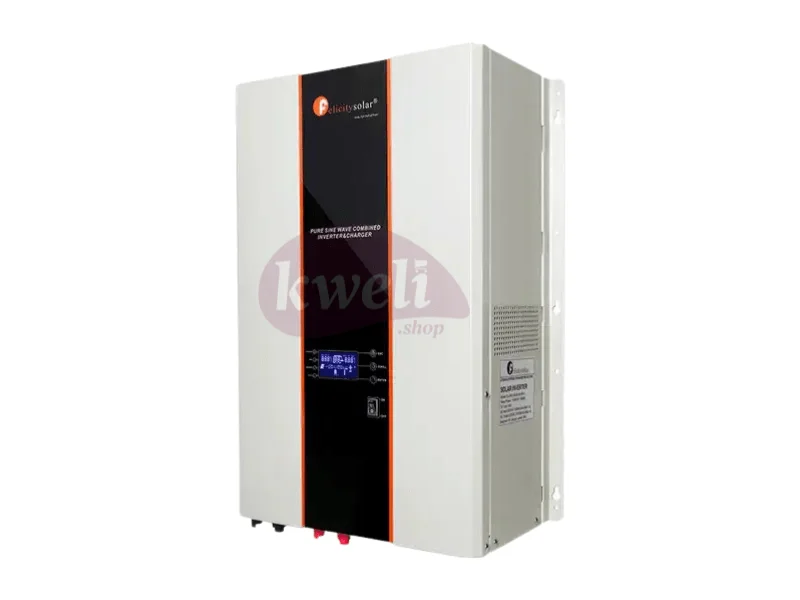

Felicity 10kVA/8kW 48V Pure Sine Wave Inverter IVPM10048
-20%
Felicity Inverters, Inverter-Chargers, Inverters
Felicity 10kVA/8kW 48V Pure Sine Wave Inverter IVPM10048 with 120A MPPT Solar Charge Controller
Availability:
Out of stock
Felicity 10kVA/8kW 48V Pure Sine Wave Inverter IVPM10048
- Model: IVPM10048
- Max. Load: 8000 watts
- DC Input Voltage: 48V
- AC Output Voltage: 220V
- Output Frequency: 50/60HZ
- Max battery charging current: 80A
- Pure sine wave inverter
- Built-in MPPT solar charge controller 120A
- Selectable charging current based on applications
- Configurable AC/Solar input priority via LCD setting
- Compatible with mains voltage or generator power
- Over-Load Protection(SMPS load): Air switch protection
- Output Short Circuit Protection: Air switch protection
- Smart battery charger design for optimized battery performance
- Optional Remote Control Panel available
UGX5,990,000 UGX7,490,000
Out of stock
Based on 0 reviews
Only logged in customers who have purchased this product may leave a review.
Related products
-
Inverters

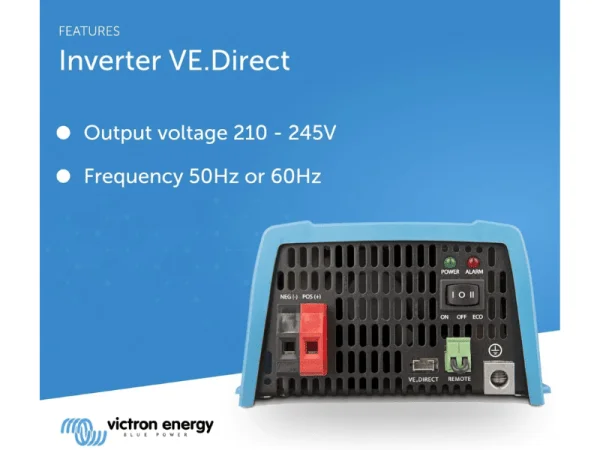

Victron Energy Inverter 800VA 12V; Pure Sinewave Inverter, NEMA GFCI, Metal Casing
Victron Energy Inverter, 800VA 12V
- This Victron Energy Inverter allows you to power domestic equipment requiring 120VAC or 230VAC, using leisure or automotive batteries rated at 12-Volt DC
- The pure sine wave output delivers 800-watt Continuous power, 1500-watt peak power with high efficiency, 1-watt draw in zero-load power ECO mode
- This inverter can be operated and monitored with computers, tablets and smartphones because of the VE. Direct communication port. Cables and dongles are sold separately
- High start-up power is used to start loads such as power converters for LED lamps or electric tools. In ECO mode, the inverter will switch to standby when the load decreases
- Employing the hybrid HF technology, the result is a top-quality product with compact dimensions, light in weight and is capable of supplying power, problem-free, to any load
SKU: n/a -
Hybrid Inverters, Inverters, SRNE Inverters
SRNE 3kVA/3kW 24V Hybrid Inverter HF2430S60-100; Built-in 60A MPPT Solar Charge Controller 1400Wp/100Voc/30-95V, Pure Sine Wave Output
-18%
Hybrid Inverters, Inverters, SRNE InvertersSRNE 3kVA/3kW 24V Hybrid Inverter HF2430S60-100; Built-in 60A MPPT Solar Charge Controller 1400Wp/100Voc/30-95V, Pure Sine Wave Output
SRNE 3kVA/3kW 24V Hybrid Inverter HF2430S60-100
General Specifications
- Model: HF2430S60-100
- Rated Power: 3kVA / 3kW
- Nominal Battery Voltage: 24V
- Inverter Type: Pure Sine Wave
- Cooling: Forced air cooling with variable-speed fan
Inverter Mode
- Rated Output Voltage: 230Vac ±5%
- Output Frequency: 50Hz ±0.3Hz / 60Hz ±0.3Hz
- Efficiency: >92%
- Peak Power: 6,000W
- Overload Protection:
- 102% < Load < 125%: Shutdown after 5 minutes
- 125% < Load < 150%: Shutdown after 10 seconds
- Load >150%: Shutdown after 5 seconds
- Output Short Circuit Protection: Circuit breaker
AC Mode
- Rated Input Voltage: 220/230Vac
- Input Voltage Range: (170Vac~280Vac) ±2% / (90Vac-280Vac) ±2%
- Input Frequency: 50Hz / 60Hz (Auto Detection)
- Bypass Mode Efficiency: >95%
- Bypass Overload Current: 30A
- AC Reverse Protection: Available
- Conversion Time (Bypass to Inverter): 10ms (typical)
MPPT Solar Charge Controller
- Maximum PV Open Circuit Voltage (Voc): 100Vdc
- MPPT Operating Voltage Range: 30V – 95Vdc
- PV Input Voltage Range: 30V – 100Vdc
- Maximum PV Input Power: 1400W
- Maximum PV Input Current: 60A
- MPPT Efficiency: 99.9%
- PV Charging Short Circuit Protection: Blown fuse
- Reverse Polarity Protection: Available
Battery & Charging
- Battery Voltage Range: 18V – 33Vdc
- Battery Type Compatibility: Lead-acid and Lithium
- Maximum AC Charge Current: 60A
- Charge Current Accuracy: ±5A
- Overcharge Protection: Circuit breaker and blown fuse
- Lithium Battery Activation: Supported via both PV and Mains
Design & Connectivity
- User Interface: LCD Display + LED Indicators + Touch Buttons
- Communication Interfaces: USB, RS485 (Supports Bluetooth, WiFi, GPRS), CAN
- Dry Node Control: Available
- Dimensions (L × W × D): 378mm × 280mm × 103mm
- Net Weight: 6.2kg
Environmental & Safety
- Operating Temperature Range: -15°C to 55°C
- Storage Temperature Range: -25°C to 60°C
- Humidity Range: 5% to 95% (Conformal coating protection)
- Noise Level: ≤60dB
- Protection Features:
- Overload Protection
- Short Circuit Protection
- Over-Voltage/Under-Voltage Protection
- Battery Reverse Polarity Protection
- Intelligent Power Saving Mode
Certification
- Safety Standard: CE (EN62109-1)
- EMC Compliance: EN61000
SKU: n/a -
Inverter-Chargers, Inverters, Victron Quattro Inverter/Chargers
Victron Quattro 48/5000/70-100/100 Inverter Charger; 48V 5kVA Inverter, 4kW @ 25 °C, Two AC inputs/outputs, Split phase
-14%
Inverter-Chargers, Inverters, Victron Quattro Inverter/ChargersVictron Quattro 48/5000/70-100/100 Inverter Charger; 48V 5kVA Inverter, 4kW @ 25 °C, Two AC inputs/outputs, Split phase
Victron Quattro 48/5000/70-100/100 Inverter Charger
- Two AC Inputs with Integrated Transfer Switch: This can be connected to two independent AC sources (e.g., a public grid and a generator) and will automatically connect to the active source.
- Two AC outputs:
- The main output has no-break functionality, ensuring an uninterrupted power supply to connected loads.
- The second output is active only when AC is available, useful for non-critical loads.
- Split Phase and Three Phase Capabilities:
- Can be configured for split-phase AC output.
- Can be connected in a three-phase configuration, with up to 4 sets of three 15 kVA units for extensive power requirements.
- PowerControl and PowerAssist Features:
- PowerControl manages limited generator or grid power.
- PowerAssist boosts power by supplementing it with battery power during peak loads.
- Solar Integration: Can be used in off-grid or grid-connected PV systems, providing AC power even during a grid failure.
- Remote Monitoring and Control: Supports various monitoring and control options via smartphone, tablet, laptop, or the VRM online portal.
Specifications:
- Battery Voltage: 48 V
- Continuous Output Power:
- At 25 °C: 5,000 VA / 4,000 W
- At 40 °C: 3,700 W
- At 65 °C: 3,000 W
- Peak Power: 10,000 W
- Maximum Continuous Output Current: 19 A
- Efficiency: Up to 94%
- Charger Output:
- Charge Voltage Absorption: 57.6 V
- Charge Voltage Float: 55.2 V
- Storage Mode: 52.8 V
- Charge Current: 70 A
- Dimensions: 470 x 350 x 280 mm
- Weight: 30 kg
- Operating Temperature: -20 to +60 ˚C
- Protection: Includes protection features such as short circuit, overload, high/low battery voltage, and high-temperature protection.
SKU: n/a -
Hybrid Inverters, Inverters, Luminous Inverters, Solar, Backup & UPS
Luminous Rayverter Pro Connect 3KVA/3KW 24V Off-Grid Solar Inverter; Built-in 100A MPPT Solar Charge Controller, 3000W PV Input, 450V Voc, 60-400V MPPT Range, Pure Sine Wave Output
-6%
Hybrid Inverters, Inverters, Luminous Inverters, Solar, Backup & UPSLuminous Rayverter Pro Connect 3KVA/3KW 24V Off-Grid Solar Inverter; Built-in 100A MPPT Solar Charge Controller, 3000W PV Input, 450V Voc, 60-400V MPPT Range, Pure Sine Wave Output
Luminous Rayverter Pro Connect 3KVA/3KW 24V Solar Inverter Specifications:
- Rated Power: 3000VA / 3000W
- AC Output Voltage: 230VAC ± 5%
- Output Waveform: Pure Sine Wave
- Frequency Range: 50Hz/60Hz (Auto Sensing)
- Efficiency (Peak): 93%
- Transfer Time:
- 10ms (For Personal Computers)
- 20ms (For Home Appliances)
Battery & Charging:
- Nominal Battery Voltage: 24VDC
- Overcharge Protection: 32VDC
- Maximum AC Charge Current: 100A
- Battery Equalization Function: Yes (Optimizes Battery Performance & Extends Lifecycle)
MPPT Solar Charge Controller:
- MPPT Charge Controller Type: MPPT
- Maximum PV Input Power: 3000W
- MPPT Voltage Range: 60-400VDC
- Maximum PV Open Circuit Voltage (Voc): 450VDC
- Maximum PV Input Current: 100A
- Maximum Solar Charge Current: 80A
Input & Protection:
- Selectable Voltage Range:
- 90-280VAC (For Home Appliances)
- 170-280VAC (For Personal Computers)
- Surge Power: 6000VA
- Protection Features:
- Overload Protection
- Short Circuit Protection (Air Switch Protection)
- Built-in Anti-Dust Kit
Design & Usability:
- Cooling System: Air Cooling
- Communication Interface: RS232 / RS485 (Optional WiFi)
- Operating Temperature: -10°C to 50°C
- Storage Temperature: -15°C to 60°C
- Humidity: 5% to 95% Relative Humidity (Non-Condensing)
- Dimensions (D × W × H): 110 × 288 × 390 mm
- Net Weight: 7.2 kg
SKU: n/a
