Dyness STACK100 230.4kWh Industrial High-Voltage LiFePO₄ Lithium Battery System; 100Ah, 3 Clusters in Parallel, 1C Charge/Discharge, CAN/RS485, Cable-Free Stackable Design, Built-in Aerosol Fire Extinguisher, 10-Year Warranty

Dyness STACK100 230.4kWh Industrial High-Voltage LiFePO₄ Lithium Battery System

• 230.4kWh total storage capacity for large commercial and industrial energy storage needs
• Built from 3 STACK100 clusters in parallel for higher-capacity system expansion
• Industrial high-voltage lithium battery system for demanding real-world applications
• Safe LiFePO₄ battery chemistry for strong safety, stability, and long service life
• 100Ah battery architecture within the STACK100 high-voltage platform
• 1C charge and discharge capability for strong operating performance
• CAN and RS485 communication for integration with compatible inverter and control systems
• Cable-free stackable design for cleaner and more organised installation
• Built-in aerosol fire extinguisher for added internal fire protection
• 10-year warranty with long cycle life for dependable long-term use

Dyness STACK100 230.4kWh Industrial LiFePO₄ High-Voltage Lithium Battery System

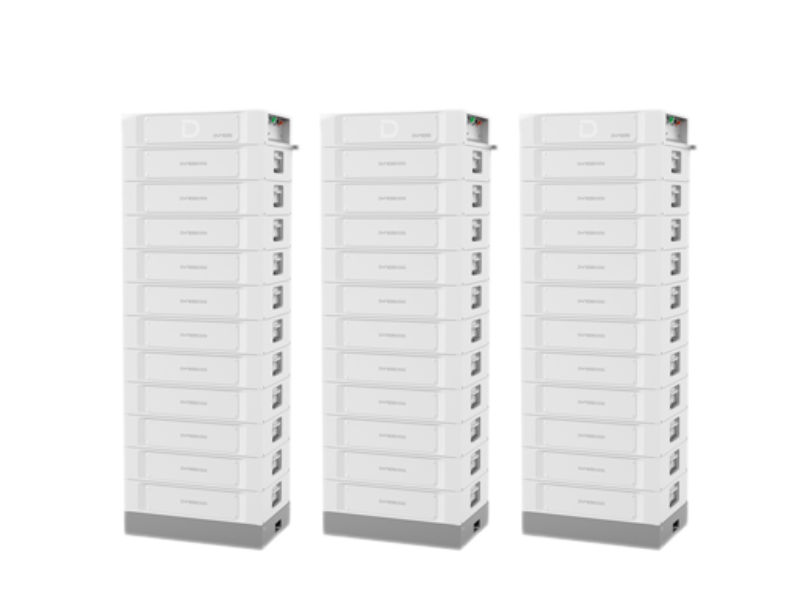

The Dyness STACK100 230.4kWh is an industrial high-voltage lithium battery system designed for large commercial and industrial energy storage applications. Built from 3 STACK100 clusters in parallel, it delivers substantial storage capacity for sites that need dependable backup power, solar energy storage, or broader energy management support.

It combines LiFePO₄ battery chemistry, 1C charge and discharge capability, CAN/RS485 communication, and a cable-free stackable design to support serious energy storage projects. With built-in aerosol fire protection, long service life, and a scalable system platform, it is a strong choice for businesses and facilities that need reliable large-scale battery storage.

• Battery Type: LiFePO₄
• Maximum System Capacity: 230.4kWh
• System Configuration: 3 clusters in parallel
• Nominal Capacity: 100Ah
• Maximum Energy per Cluster: 76.8kWh
• Modules per Cluster: Up to 15
• Module Voltage / Capacity: 51.2V / 100Ah
• Charge/Discharge Rate: 1C
• Maximum Charge/Discharge Current: 100A
• Communication: CAN / RS485
• Installation Method: Cable-free stackable design
• Fire Protection: Built-in aerosol fire extinguisher
• Cooling Method: Forced wind cooling
• Protection Level: IP20
• Cycle Life: 8000+ cycles
• Warranty: 10 years
