Dyness DL5.0F 5.12kWh 51.2V LiFePO₄ Lithium Solar Battery; 100Ah, 1C Discharge, 8000+ Cycles, IP20, Optional Self-Heating, Scalable to 50 Units (256kWh)

• 5.12kWh LiFePO₄ battery for residential and small commercial storage.
• 51.2V low-voltage architecture with 100Ah nominal capacity.
• Supports 1C discharge for high-load applications.
• 8000+ cycle life under manufacturer test conditions.
• Expandable up to 50 units in parallel - 256kWh total capacity.
• Wall-mounted, floor-mounted and rack-mounted installation.
• Compatible with standard 19-inch racks.
• Optional automatic self-heating for low-temperature operation.
• Optional intelligent fire-extinguishing system.
• IP20 enclosure.

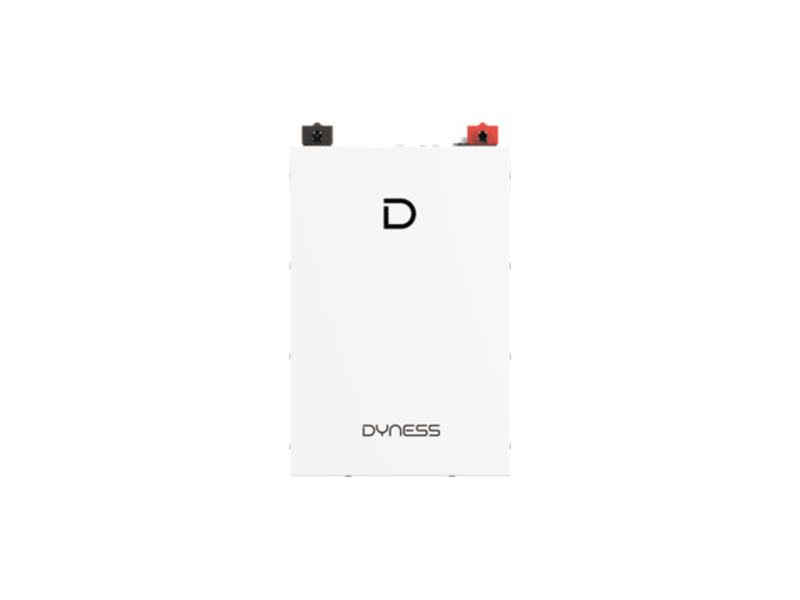

The Dyness DL5.0F is a 5.12kWh low-voltage LiFePO₄ battery designed for residential and small commercial solar-storage systems. Its compact module-free design supports flexible wall, floor and rack installation.

• Model: DL5.0F
• Battery Chemistry: LiFePO₄
• Nominal Energy: 5.12kWh
• Nominal Voltage: 51.2V
• Capacity: 100Ah
• Discharge Rate: Up to 1C
• Cycle Life: ≥8000 cycles
• Expansion: Up to 50 units in parallel
• Dimensions: 345 × 548 × 146mm
• Weight: approx. 41kg
• Protection: IP20

Designed for compatible low-voltage hybrid inverters and Dyness residential ESS platforms.
