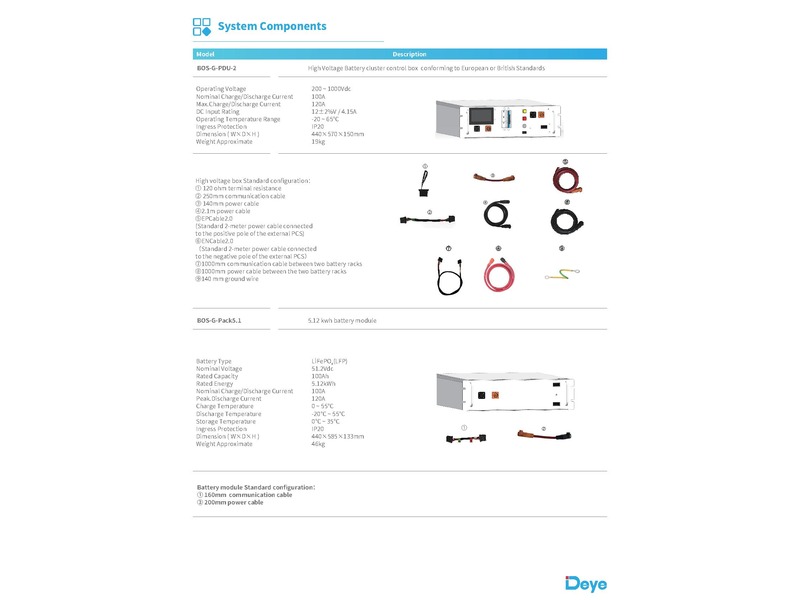

Deye BOS-G Pro High-Voltage Battery Control Box BOS-G-PDU-2; 200–1000Vdc, 100A Nominal, 120A Max, CAN/RS485, IP20

• High-voltage battery cluster control box for BOS-G Pro systems.
• 200–1000Vdc operating voltage range.
• 100A nominal charge/discharge current.
• 120A maximum charge/discharge current.
• CAN2.0 / RS485 communication within the BOS-G Pro architecture.
• IP20 enclosure.
• Supplied with standard power, communication and termination cabling according to Deye configuration.
• Compatible with BOS-G-Pack5.1 battery modules.
• Required for BOS-G Pro rack-mounted high-voltage battery clusters.
• Designed for qualified C&I energy-storage installation.

The Deye BOS-G-PDU-2 is the high-voltage battery cluster control box used with BOS-G Pro rack-mounted battery systems. It manages the high-voltage battery string and provides the external PCS/inverter connection interface.

• Model: BOS-G-PDU-2
• Operating Voltage: 200–1000Vdc
• Nominal Charge/Discharge Current: 100A
• Maximum Charge/Discharge Current: 120A
• DC Input Rating: 12±2%V / 4.15A
• Operating Temperature: -20 to 65°C
• Ingress Protection: IP20
• Dimensions: 440 × 570 × 150mm
• Weight: approx. 19kg

For Deye BOS-G Pro systems using BOS-G-Pack5.1 modules and approved Deye high-voltage hybrid inverter/PCS configurations.
