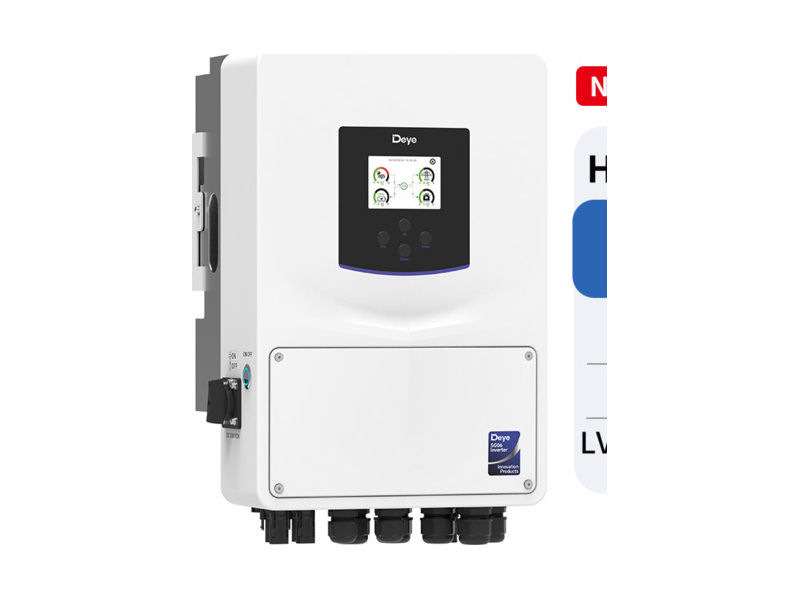

Deye 5kW 48V Single-Phase Hybrid Solar Inverter SUN-5K-SG06LP1-EU-CM2; 8kW PV Input/10kWp Access, 500V Voc, 150–425V MPPT, 2 MPPT, 18A + 18A PV Input, 120A Battery Charge/Discharge, IP65

• Rated AC output: 5kW
• Battery system: Low-voltage, nominal 48V class
• Phase: Single-phase
• Maximum PV input power: 8kW
• Maximum PV access power: 10kWp
• Maximum PV open-circuit voltage: 500V
• MPPT operating range: 150–425V
• Maximum operating PV input current: 18A + 18A
• Number of MPPT trackers: 2
• Battery voltage range: 40–60V

Deye 5kW 48V Single-Phase Hybrid Solar Inverter SUN-5K-SG06LP1-EU-CM2 combines solar PV, battery storage and grid or generator input for energy management and backup power. The PV access rating and usable maximum PV input power are stated separately below.

General Specifications

• Rated AC output: 5kW
• Battery system: Low-voltage, nominal 48V class
• Phase: Single-phase

Solar PV Input

• Maximum PV input power: 8kW
• Maximum PV access power: 10kWp
• Maximum PV open-circuit voltage: 500V
• MPPT operating range: 150–425V
• Maximum operating PV input current: 18A + 18A
• Number of MPPT trackers: 2

Battery & Charging

• Battery voltage range: 40–60V
• Maximum battery charging current: 120A
• Maximum battery discharging current: 120A

AC Input & Output

• AC system: Single-phase grid-interactive hybrid

Key Functions

• Colour LCD
• IP65 protection
• Generator energy storage support
• Lithium and lead-acid battery compatibility

Check PV module voltage at minimum design temperature, MPPT operating voltage, PV string input current, maximum PV input power and maximum PV access capacity as separate limits. Verify battery voltage, battery charge/discharge current, phase configuration and protection before installation. For older hardware revisions, confirm the rating plate and matching manufacturer datasheet.
