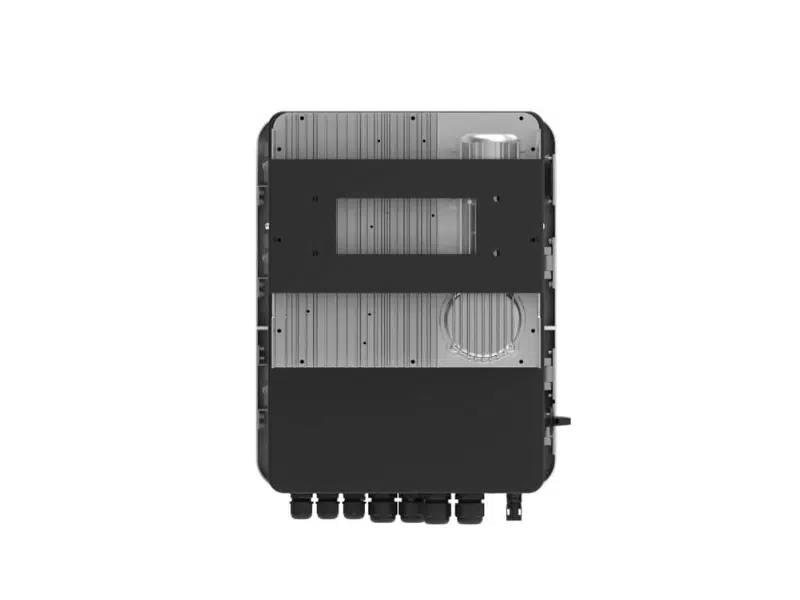

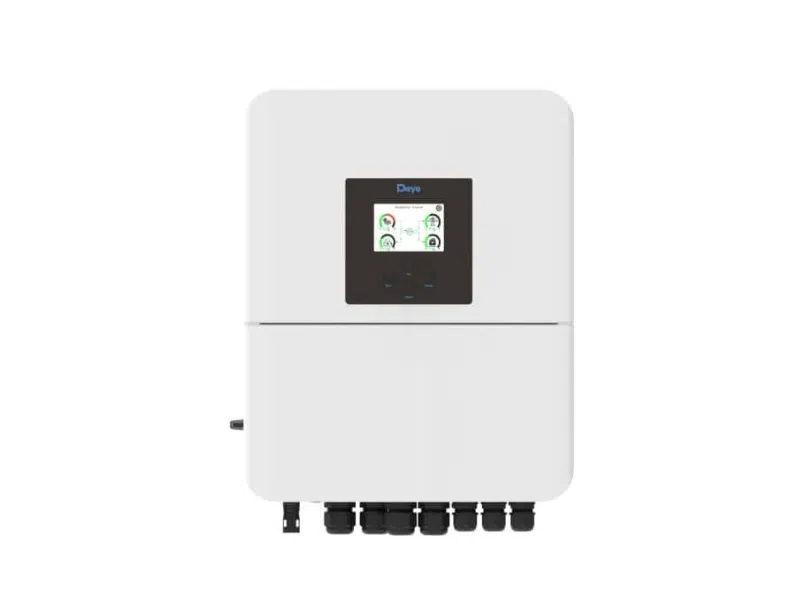

Deye 3kVA/3kW 24V Single Phase Hybrid Inverter SUN-3K-SG04LP1-24-EU Datasheet
Battery Specifications
- Battery Type: Lithium-ion or Lead-acid
- Battery Voltage Range: 20–30V (24V nominal)
- Max Charging Current: 140A
- Max Discharging Current: 140A
- Charging Strategy: Self-adaptive to BMS
- Number of Battery Inputs: 1
PV / Solar Input Specifications
- Max PV Access Power: 6,000W
- Max PV Input Power: 4,800W
- Max PV Input Voltage: 500Vdc
- Start-up Voltage: 125V
- MPPT Voltage Range: 150–425V
- Rated PV Input Voltage: 370V
- MPPT Trackers: 1
- Strings per MPPT: 1
- Max Operating PV Input Current: 13A
- Max Input Short Circuit Current: 17A
AC Output Specifications
- Rated Output Power: 3,000W
- Max Apparent Power: 3,300VA
- Rated Output Voltage: 220/230V (Single Phase)
- Rated Frequency: 50/60Hz
- Max Continuous AC Passthrough: 35A
- Peak Power (Off-grid): 2× rated power for 10 seconds
- Power Factor Adjustment Range: 0.8 leading to 0.8 lagging
Hybrid & System Integration
- Supports solar, battery, grid and generator integration
- Stores energy from diesel generator
- AC coupling support for retrofitting existing solar systems
- Parallel operation up to 16 units
- Six programmable battery charge and discharge time periods
Protection & General Specifications
- Ingress Protection Rating: IP65
- Surge Protection: Type II (DC and AC)
- Anti-islanding protection
- DC reverse polarity protection
- AC overcurrent and short-circuit protection
- Residual current detection
- Cooling Method: Natural Cooling
- Noise Level: <45 dB
- Operating Temperature Range: -40°C to +60°C
- Permissible Altitude: Up to 2000m
- Weight: 17kg
- Dimensions: 330 × 433 × 228 mm
