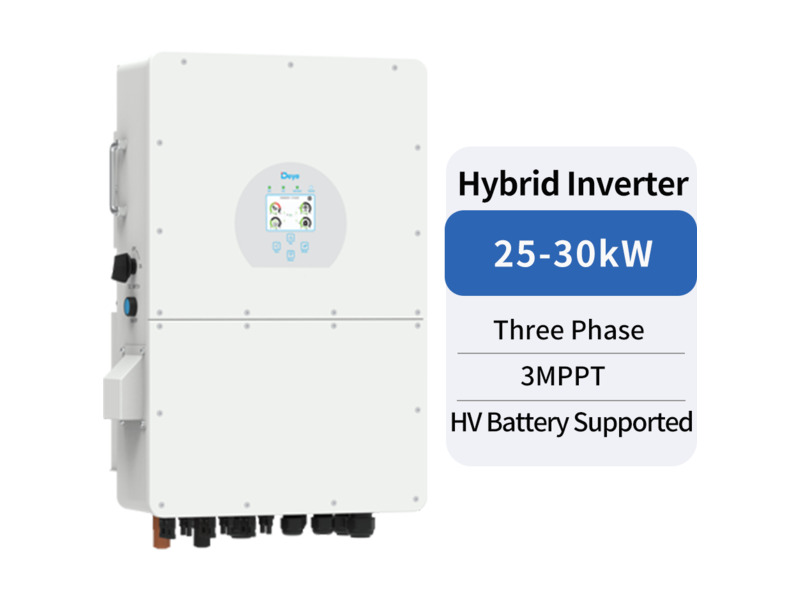

Deye 30kW High-Voltage Three-Phase Hybrid Solar Inverter SUN-30K-SG02HP3-EU-AM3; 48kW PV Input/60kWp Access, 1000V Voc, 150–850V MPPT, 3 MPPT, 36A × 3 PV Input, 75A Battery Charge/Discharge, IP65

• Rated AC output: 30kW
• Battery system: High-voltage lithium (160–700V)
• Phase: Three-phase
• Maximum PV input power: 48kW
• Maximum PV access power: 60kWp
• Maximum PV open-circuit voltage: 1000V
• MPPT operating range: 150–850V
• Maximum PV operating current: 36A × 3
• MPPT trackers: 3
• Battery voltage range: 160–700V

Deye 30kW High-Voltage Three-Phase Hybrid Solar Inverter SUN-30K-SG02HP3-EU-AM3 integrates solar PV input, battery storage and AC power conversion for appropriately sized power systems.

General Specifications

• Rated AC output: 30kW
• Battery system: High-voltage lithium (160–700V)
• Phase: Three-phase

Solar PV Input

• Maximum PV input power: 48kW
• Maximum PV access power: 60kWp
• Maximum PV open-circuit voltage: 1000V
• MPPT operating range: 150–850V
• Maximum PV operating current: 36A × 3
• MPPT trackers: 3

Battery & Charging

• Battery voltage range: 160–700V
• Maximum battery charging current: 75A
• Maximum battery discharging current: 75A

AC Input & Output

• Rated AC supply: 230/400V three-phase

Key Functions

• IP65
• Grid-interactive hybrid
• Generator storage support

Confirm PV open-circuit voltage, MPPT range, PV array capacity and maximum PV input current for the actual site and string layout. Check battery voltage, charging/discharging current, AC wiring and protective devices against the manufacturer manual before installation.
