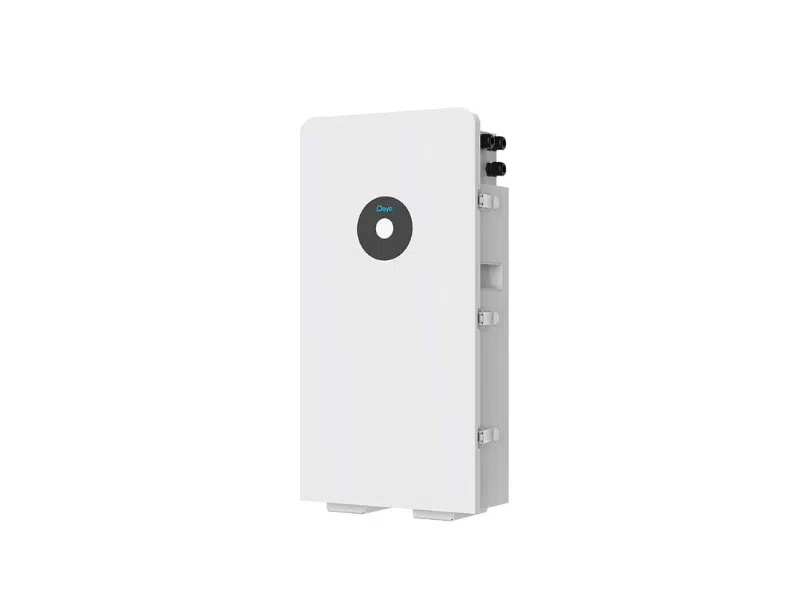

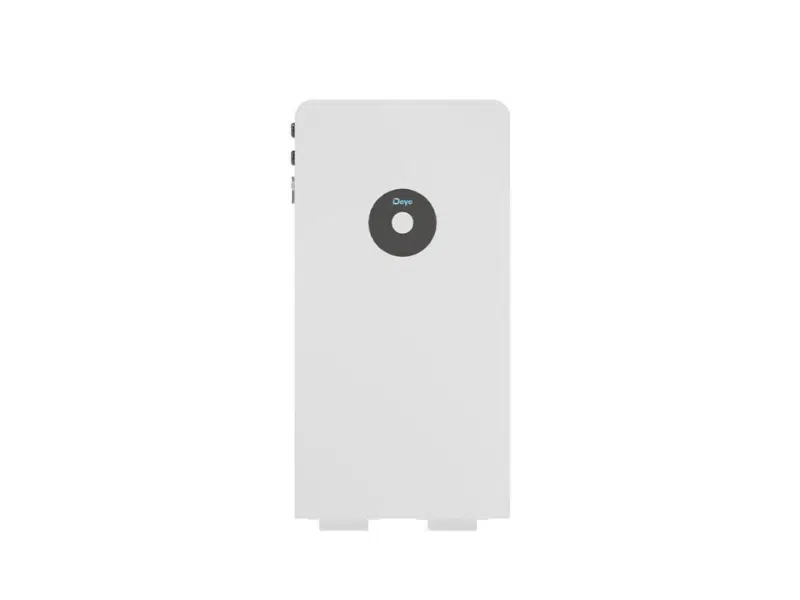

Deye 2.56kWh 25.6V LiFePO₄ Lithium Solar Battery RW-L2.5A datasheet
Electrical Specifications
- Battery Chemistry: LiFePO₄
- Nominal Voltage: 25.6V
- Operating Voltage Range: 22.4 – 28.8V
- Capacity: 100Ah
- Nominal Energy: 2.56kWh
- Usable Energy (90% DoD): 2.3kWh
- Recommended Depth of Discharge: 90%
- Max Continuous Charge Current: 100A
- Max Continuous Discharge Current: 120A
- Peak Current: 200A (10 seconds)
- Cycle Life: ≥6000 cycles (25°C, 0.5C/0.5C, 90% DoD, 70% EOL)
Scalability & System Integration
- Maximum Parallel Units: 32
- Maximum Total Capacity: 81.92kWh
- Communication Ports: CAN2.0, RS485
- Compatible with Deye hybrid inverters
- Battery auto-networking (no DIP switches required)
Installation & Environmental Specifications
- Installation Type: Wall-mounted / Floor-mounted
- Ingress Protection Rating: IP65
- Operating Temperature:
- Charge: 0°C to 55°C
- Discharge: -20°C to 55°C
- Recommended Operating Temperature: 15°C – 35°C
- Storage Temperature: 0°C – 35°C
- Relative Humidity: ≤95%
- Permissible Altitude: ≤2000m
- Weight: 32kg
- Dimensions (W × H × D): 350 × 680 × 160 mm
Warranty & Certification
- Warranty: 10 Years
- Certifications: UN38.3, MSDS
