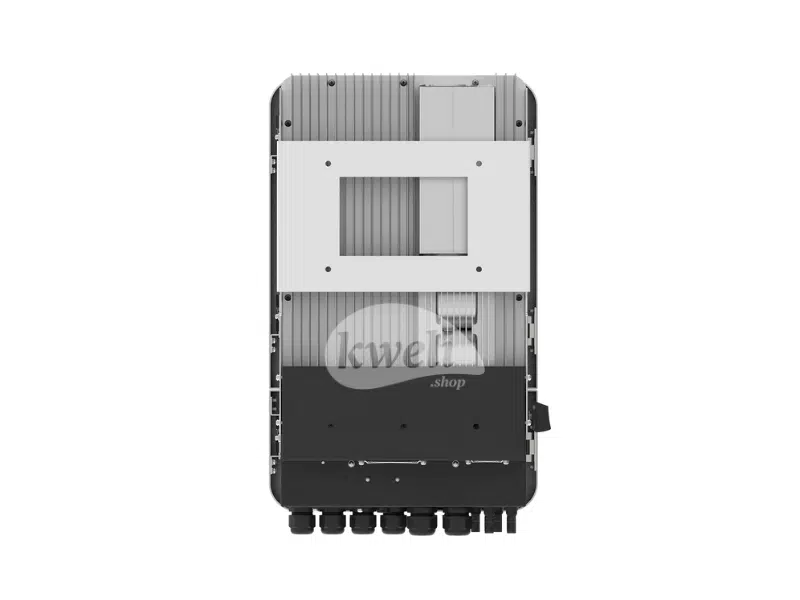

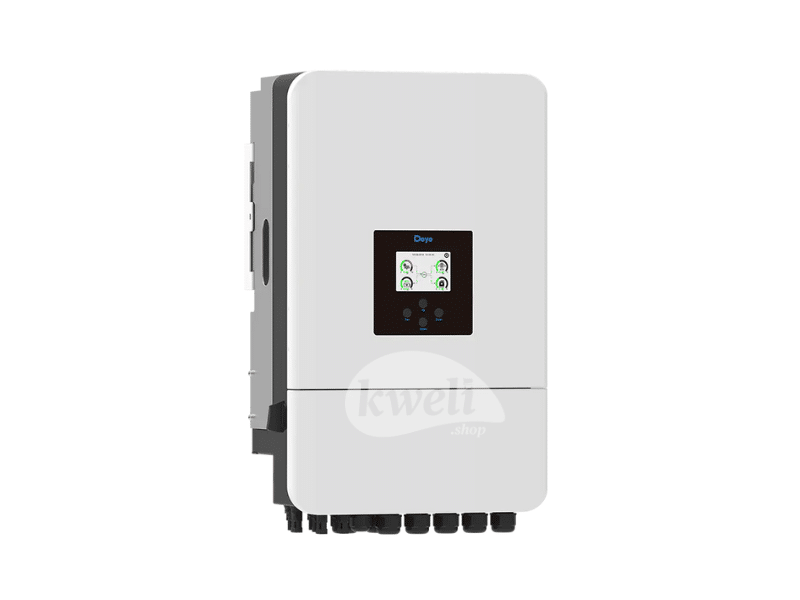

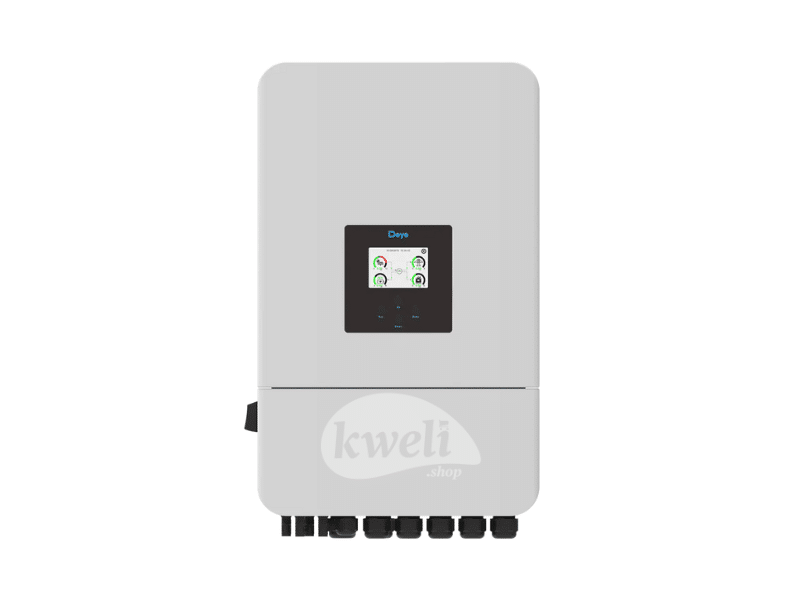

Deye 10kVA/10kW 48V Single Phase Hybrid Inverter
Model: SUN-10K-SG05LP1-EU-SM2
General Specifications
- Rated Output Power: 10 kVA / 10 kW
- Battery Voltage: 48V (Lead-acid or Lithium-ion)
- Battery Voltage Range: 40–60 VDC
- Max. Charging Current: 210A
- Max. Discharging Current: 210A
- Number of Battery Inputs: 1
- Topology: Transformerless (Non-isolated)
- Output Waveform: Pure sine wave
PV Input Data
- Max. PV Access Power: 20,000 W
- Max. PV Input Power: 16,000 W
- Max. PV Input Voltage: 500 VDC
- Start-up Voltage: 125 V
- MPPT Voltage Range: 150–425 VDC
- Rated PV Input Voltage: 370 VDC
- No. of MPPT Trackers / Strings: 2 / (2+2)
- Max. Operating PV Input Current: 26 A + 26 A
- Max. Short-Circuit Current: 34 A + 34 A
AC Input / Output Data
- Rated AC Power (On-grid/Off-grid): 10,000 W
- Max. AC Power: 11,000 W
- Rated AC Current (Output): 45.5 A / 43.5 A
- Max. AC Current (Output): 50 A / 47.9 A
- Max. Continuous AC Passthrough (grid → load): 50 A
- Peak Power (Off-grid): 2 × rated power (10s)
- Power Factor Adjustment: 0.8 leading to 0.8 lagging
- Rated Voltage: 220/230 V AC (±15%)
- Rated Frequency: 50 Hz / 60 Hz (±5 Hz)
- Grid Connection Form: L + N + PE
- THDi: <3%
- DC Injection Current: <0.5%
Efficiency
- Max. Efficiency: 97.6%
- Euro Efficiency: 96.5%
- MPPT Efficiency: >99%
Features & Protection
- Display: Colorful touch LCD
- IP Rating: IP65 (indoor/outdoor use)
- Monitoring: GPRS / WiFi / Bluetooth / 4G / LAN (optional)
- Integrated Protection: DC reverse polarity, AC overcurrent & overvoltage, thermal, DC/AC short-circuit, anti-islanding, insulation impedance detection, residual current detection
- Surge Protection: Type II (DC), Type III (AC)
- Parallel Operation: Up to 16 units (on-grid or off-grid)
- Battery Management: 6 programmable time periods for charging/discharging
- Generator Support: Compatible with diesel generator input
Design & Usability
- Cooling: Intelligent air cooling
- Noise: <30 dB
- Ingress Protection: IP65
- Cabinet Size (W×H×D): 366 × 589.5 × 237 mm (excluding connectors & brackets)
- Weight: 26.8 kg
- Operating Temperature: –40°C to +60°C (derating above 45°C)
- Altitude: ≤2000 m
- Warranty: 5 Years / 10 Years (site-dependent)
