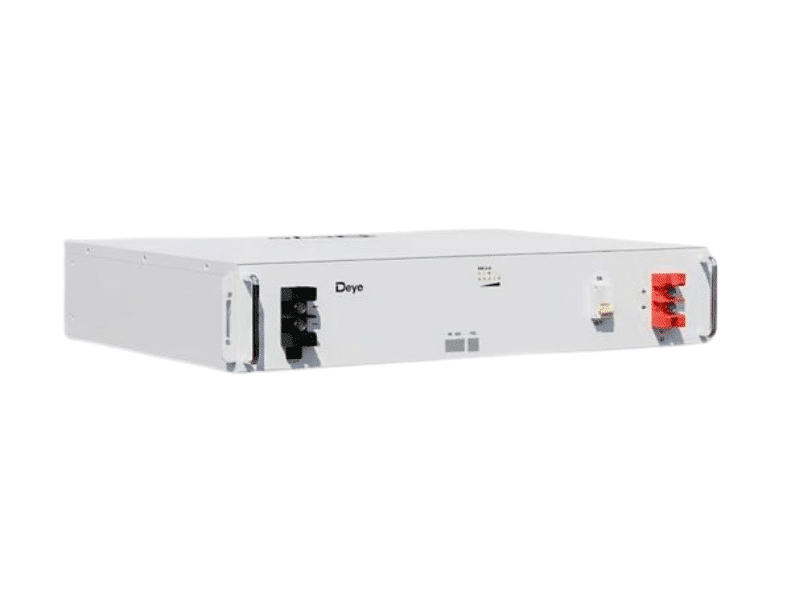

Deye 10.24kWh 51.2V LiFePO₄ Lithium Battery SE-G10.2 datasheet
Electrical Specifications
- Battery Chemistry: LiFePO₄
- Nominal Voltage: 51.2V
- Operating Voltage Range: 44.8 – 57.6V
- Capacity: 200Ah
- Nominal Energy: 10.24kWh
- Recommended Depth of Discharge: 80%
- Max Continuous Charge Current: 100A
- Max Continuous Discharge Current: 100A
- Peak Charge/Discharge Current: 200A (10 seconds)
Scalability & System Integration
- Maximum Parallel Units: 64
- Maximum Total Energy (64 units): 655.36kWh
- Communication Ports: CAN2.0, RS485
- Compatible with Deye hybrid inverters
- Suitable for rack cabinets (≥600mm depth)
- Stackable modular configuration
Safety & Protection
- Built-in intelligent BMS
- Cell voltage balancing and temperature monitoring
- Overcharge, over-discharge and short-circuit protection
- Communication-based inverter coordination
Environmental & Installation
- Installation Type: Rack-mounted (indoor installation recommended)
- Ingress Protection Rating: IP20
- Operating Temperature:
- Charge: 0°C to 55°C
- Discharge: -20°C to 55°C
- Storage Temperature: 0°C to 35°C
- Relative Humidity: ≤95%
- Permissible Altitude: ≤2000m
Physical Specifications
- Dimensions (W × H × D): 710 × 540 × 133 mm
- Weight: 85 kg
Warranty & Lifecycle
- Warranty Period: 5 Years
- Cycle Life: ≥6000 cycles (25°C, 0.2C, 80% DoD, 70% EOL)
- Certification: UN38.3, MSDS
