5 YEARS WARRANTY

Chloride Solar 100Ah 51.2V 5.12kWh Lithium Solar Battery CS-5100S; Built-in BMS, Over 6,000 Cycles @25°C, 80% DoD

Original price was: UGX4,900,000.Current price is: UGX4,390,000.

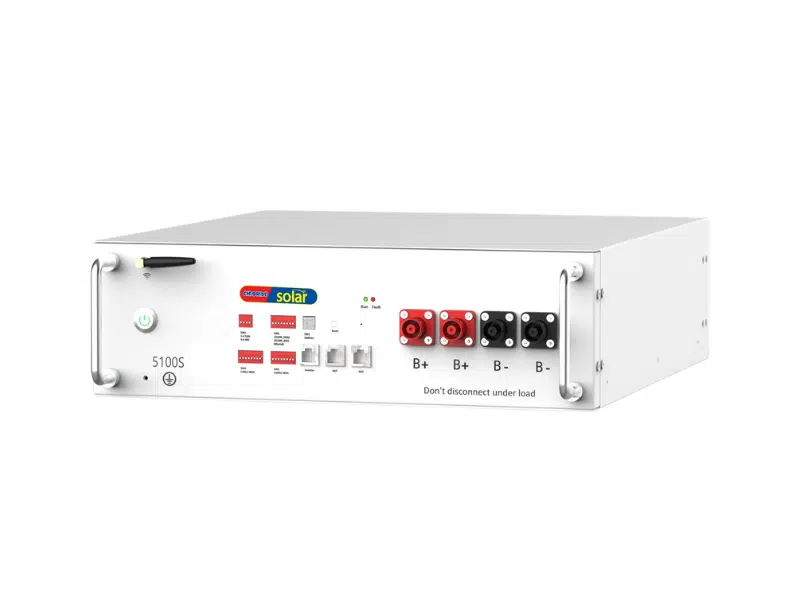

Chloride Solar 100Ah 51.2V 5.12kWh Lithium Solar Battery CS-5100S

  • Model: CS-5100S
  • Battery Type: Lithium Iron Phosphate (LiFePO₄)
  • Nominal Voltage: 51.2V
  • Voltage Range: 48V – 56V
  • Nominal Capacity: 100Ah
  • Total Energy Capacity: 5.12kWh
  • Usable Capacity: 4.61kWh
  • Charge/Discharge Current (Recommended / Max): 50A / 100A
  • Cycle Life: Over 6,000 cycles @80% DoD, 25°C
  • Operating Temperature – Charging: 0°C to 50°C
  • Operating Temperature – Discharging: -10°C to 50°C
  • Storage Temperature: -20°C to 60°C
  • Humidity: 0% – 95% (non-condensing)
  • Cooling Type: Natural convection (ambient cooling)
  • Installation Method: Wall mount or cabinet mount
  • Dimensions (W × H × D): 442 × 500 × 133 mm
  • Weight: 46 kg
  • Altitude Limit: < 2,000 metres
  • IP Rating: IP20
  • Parallel Support: Up to 8 units
  • Warranty: 10 years
  • Certifications: CE, TUV (IEC 62619, IEC 62040), UN3480

Post on Faacebook
Post on X
Share via WhatsApp
Print
Send via Email

Description

Designed for performance and reliability, the Chloride Solar CS-5100S delivers 5.12kWh of energy with over 6,000 cycles at 80% DoD. This 100Ah 51.2V LiFePO₄ battery is wall-mountable, WiFi-enabled for app-based monitoring, and easy to install. Ideal for residential solar and backup power systems.

Key features

  • High-safety Lithium Iron Phosphate (LFP) chemistry
  • Built-in Battery Management System (BMS) for protection and performance
  • Supports up to 8 units in parallel without additional settings or equipment
  • Integrated WiFi modem with app support and OTA (over-the-air) firmware upgrades
  • Quick and easy wall-mount installation with buckle fixing system
  • High-precision SOC (State of Charge) with accurate voltage and current sampling—prevents sudden SOC jumps
  • Designed for long service life and low maintenance in residential applications

Brand

Chloride Solar
