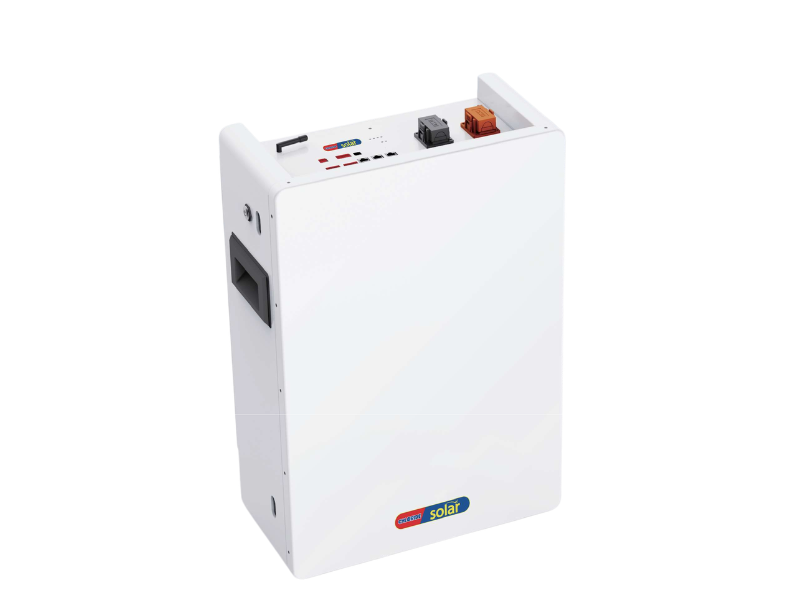

Chloride Solar 10.24kWh 51.2V LiFePO₄ Lithium Solar Battery CS-10H; Built-in BMS, 200Ah, 10kW Max Discharge, IP20, CAN/RS485, Wall-Mounted, Scalable up to 8 Units (81.92kWh)

Chloride Solar 10.24kWh 51.2V LiFePO₄ Lithium Solar Battery CS-10H

• 10.24 kWh lithium iron phosphate (LiFePO₄) energy storage module.
• 51.2V low-voltage system compatible with 48V hybrid inverters.
• 8.7 kWh usable energy under standard operating conditions.
• Built-in intelligent BMS with accurate voltage and current sampling.
• 10kW maximum discharge power for high-load support.
• 200Ah rated capacity for stable energy delivery.
• Expandable up to 8 units (81.92kWh total system capacity).
• CAN / RS485 communication for inverter integration.
• IP20-rated wall-mounted metal enclosure for indoor installation.
• ≥6000 cycle life at 80% depth of discharge with 10-year warranty support.

Chloride Solar 10.24kWh 51.2V LiFePO₄ Lithium Solar Battery CS-10H

• Model: CS-10H
• Battery Chemistry: LiFePO₄ (Lithium Iron Phosphate)
• Total Energy: 10.24kWh
• Usable Energy (DC): 8.7kWh
• Rated Capacity: 200Ah
• Nominal Voltage: 51.2Vdc
• Voltage Range: 48–56Vdc
• Maximum Discharge Power: 10kW
• Cycle Life: 6000 cycles @ 80% DoD
• Parallel / Series Support: Up to 8 units
• Communication: CAN / RS485
• Cooling Type: Ambient cooling
• IP Rating: IP20
• Installation: Wall-mounted
• Dimensions (W × D × H): 700 × 500 × 235 mm
• Weight: 87 ±1kg
• Operating Temperature (Charge): 0°C to 45°C
• Operating Temperature (Discharge): -10°C to 55°C
• Relative Humidity: 0–95% (non-condensing)
• Case Material: Metal
• Safety Certification: UN3480, CE
• Warranty: 10 Years
