Machine Type

A3 Monochrome Laser Multifunctional

Core Functions

Print, Copy, Scan, Send and Optional Fax

Control Panel

7 inch TFT LCD WVGA color Touch panel

Memory

Standard: 2.0GB RAM

Storage

Use area: 30GB (eMMC)

Interface Connection

NETWORK
Standard: 1000Base-T/100Base-TX/10Base-T, Wireless LAN (IEEE 802.11 b/g/n)

OTHERS
Standard: USB 2.0 (Host) x3, USB 2.0 (Device) x1

Paper Supply Capacity (A4, 80gsm)

Standard: 330 sheets
Maximum: 580 sheets (with Cassette Feeding Module-AK1)

Paper Output Capacity (A4, 80 gsm)

Standard: 250 sheets
Maximum: 250 sheets

Finishing Capabilities

Standard model: Collate, Group

Supported Media Types

Multi-purpose Tray:
Thin, Plain, Recycled, Color, Heavy, Bond, Transparency, Label, Pre-punched, Envelope

Paper Cassette:
Plain, Recycled, Color, Pre-punched

Supported Media Sizes

Multi-purpose tray:
Standard size: A3, A4, A4R, A5, A5R, B4, B5, B5R, Envelopes [No. 10(COM 10), Monarch, ISO-C5, DL]
Custom Size/Free Size: Min.95.0 x139.7 mm up to 297.0 x431.8 mm

Paper Cassette:
Standard size: A3, A4, A4R, A5R, B4, B5, B5R

Supported Media Weights

Multi-purpose tray: 60 to 157 gsm
Paper Cassettes: 64 to 90 gsm
Duplex: 60 to 90 gsm

Warm-up Time
(Quick start mode:ON)

4 Seconds or Less^*1
From Sleep Mode: 10 seconds or less
12 Seconds or Less^*2

Dimensions (W x D x H)

With Platen Cover-AA1: 627 x 665 x 516 mm
With DADF-AZ2: 627 x 692 x 616 mm

Installation Space (W x D)

1065 x 1285 mm

Weight

With Platen Cover-AA1: Approx. 34.9 kg including toner
With DADF-AZ2: Approx. 39.9 kg including toner

Print Speed (ppm)

Up to 25 ppm (A4), Up to 12 ppm (A3), Up to 11 ppm (A4R)

Print Resolution (dpi)

600 x 600

Page Description Languages

Standard: UFRII
Optional: PCL6, Adobe®PostScript®3™

Direct Print

Supported file types:
RUI: PDF, EPS, TIFF/JPEG, XPS
USB Memory: PDF, TIFF/JPEG, XPS
Network Place: PDF, TIFF/JPEG, XPS

Printing from Mobile and Cloud

AirPrint, Mopria, Google Cloud Print, Canon Business PRINT and uniFLOW Online

Fonts

PCL fonts: 93 Roman, 10 Bitmap fonts, 2 OCR fonts, Andalé Mono WT J/K/S/T^*3 (Japanese, Korean, Simplified and Traditional Chinese), Barcode fonts^*4
PS fonts: 136 Roman

Print Features

Secure Print, Secure Watermark, Header/Footer, Page Layout, Two-sided Printing, Mixed Paper Sizes/Orientations, Toner Reduction, Poster Printing, Forced hold printing, Print Date, Scheduled Printing, Printing Using a Virtual Printer

Operating System

UFRII: Windows® 7 / 8.1 / 10 / Server 2008 / Server 2008 R2 / Server 2012 / Server 2012 R2 / Server 2016 / Server 2019, MAC OS X (10.10 or later)
PCL: Windows® 7 / 8.1 / 10 / Server 2008 / Server 2008 R2 / Server 2012 / Server 2012 R2 / Server 2016 / Server 2019
PS: Windows® 7 / 8.1 / 10 / Server 2008 / Server 2008 R2 / Server 2012 / Server 2012 R2 / Server 2016 / Server 2019, MAC OS X (10.10 or later)
PPD: Windows® 7 / 8.1 / 10, MAC OS X (10.10 or later)

Copy Speed (BW)

Up to 25 ppm (A4), up to 12 ppm (A3), up to 11 ppm (A4R)

First-Copy-Out Time (A4) (BW)

Approx. 7.4 seconds or less

Copy Resolution (dpi)

600 × 600

Multiple Copies

Up to 9,999 copies

Copy Density

Automatic or Manual (9 Levels)

Magnification

25% – 400% (1% Increments)
Preset reduction/enlargement: 25%, 50%, 61%, 70%, 81%, 86%, 100%, 115%, 122%, 141%, 200%, 400%

Copy Features

Preset R/E Ratios by Area, Two-Sided, Density Adjustment, Original Type Selection, Interrupt Mode, Book to Two Pages, Two-sided Original, Sort, Job Build, N on 1, Different Size Originals, Sharpness, Erase Frame, Gutter, Copy ID Card, Free Size Original, Reserved copy, Copy Sample

Type

Optional:
Duplexing Automatic Document Feeder [2-sided to 2-sided] (DADF-AZ2) or Platen Cover (Platen Cover-AA1)

Document Feeder Paper Capacity (80 gsm)

DADF-AZ2: 50 Sheets

Acceptable Originals and Weights

Platen: Sheet, Book

Document Feeder media weight:
1-sided scanning: 37 to 128 gsm (BW/CL)
2-sided scanning: 52 to 128 gsm (BW/CL)

Only 1-sheet feeding is supported in 37-52 and 105-128 gsm.

Supported Media Sizes

Platen: Max. scanning size: 297.0 x 432.0 mm
Document Feeder media size:
A3, A4, A4R, A5, A5R, B4, B5, B5R
Custom size: 139.7 x 148.5 mm to 297.0 x 432.0 mm

Scan Speed (ipm: BW/CL; A4)

DADF-AZ2:
1-sided Scanning: 35/25 (300 dpi, send), 25/13 (600 dpi, copy)
2-sided Scanning: 12/8 (300 dpi, send), 8/4 (600 dpi, copy)

Scan Resolution (dpi)

Scan for Copy: up to 600 x 600
Scan for Send:
(Push,BW) up to 600 x 600, (Pull,BW) up to 600 x 600
(Push,CL) up to 300 x 300, (Pull,CL) up to 300 x 300
Scan for Fax: up to 600 x 600

Pull Scan Specifications

Color Network ScanGear2. For both TWAIN and WIA
Supported OS: Windows® 7/8.1/10
Windows® Server 2008/Server 2008 R2/Server 2012/Server 2012 R2/Server 2016

Scan Method

Push scan, Pull scan, Scan to Network, Scan to memory media (USB Memory Key), Scan to Mobile Devices, Scan to cloud-based services (uniFLOW)

Destination

Standard: E-mail/Internet FAX (SMTP), SMB3.0, FTP WebDAV
Optional: Super G3 FAX

Address Book

LDAP (2,000)/Local (1,600)/Speed dial (200)

Send Resolution (dpi)

Push: 100 x 100, 150 x 150, 200 x 100 (Standard), 200 x 200 (Fine), 200 x 400^*5 (SuperFine), 300 x 300, 400 x 400^*5 (UltraFine), 600 x 600^*5

Pull: 75 x 75, 100 x 100, 150 x 150, 200 x 200, 300 x 300, 400 ｘ 400^*5, 600 x 600^*5

Communication Protocol

File: FTP (TCP/IP), SMB (TCP/IP), WebDAV
Email/iFax: SMTP (send), POP3 (receive)

File Format

Standard: TIFF (MMR), JPEG^*6, PDF (Compact, PDF/A-1b, Encrypted), XPS (Compact), PDF/XPS (Device Signature）
Optional: PDF (Trace & Smooth), PDF/XPS (User Signature), PDF/XPS (Searchable), Office Open XML (PowerPoint, Word)

Universal Send Features

Original Type Selection, Two-sided Original, Different-size Originals, Density Adjustment, Sharpness, Erase Frame, Job Build, Sender’s Name (TTI), Delayed Send, Preview, Job Done Notice, File Name, Subject/Message, Reply-to, E-mail Priority, TX Report, Original Content Orientation

Maximum Number of Connection Lines

1

Modem Speed

Super G3: 33.6 kbps
G3: 14.4 kbps

Compression Method

MH, MR, MMR, JBIG

Resolution (dpi)

400 x 400 (Ultrafine), 200 x 400 (Superfine), 200 x 200 (Fine/Photo), 200 x 100 (Normal)

Sending / Receiving Size

Sending: A3, A4, A4R, A5^*8, A5R^*8, B4, B5^*7, B5R^*8
Receiving: A3, A4, A4R, A5R, B4, B5, B5R

FAX / Memory

Up to 30,000 pages

Speed Dials

Max. 200

Group Dials / Destinations

Max. 199 dials

Sequential Broadcast

Max. 256 addresses

Memory Backup

Yes

Fax Features

Sender’s Name (TTI), Direct Send, Delayed Send, Preview, Job Done Notice, TX Report, TX Reservation, Interrupt Transmission, Sequential Broadcasting, Password/Subaddress Sending, Confidential Mailbox

Authentication and Access Control

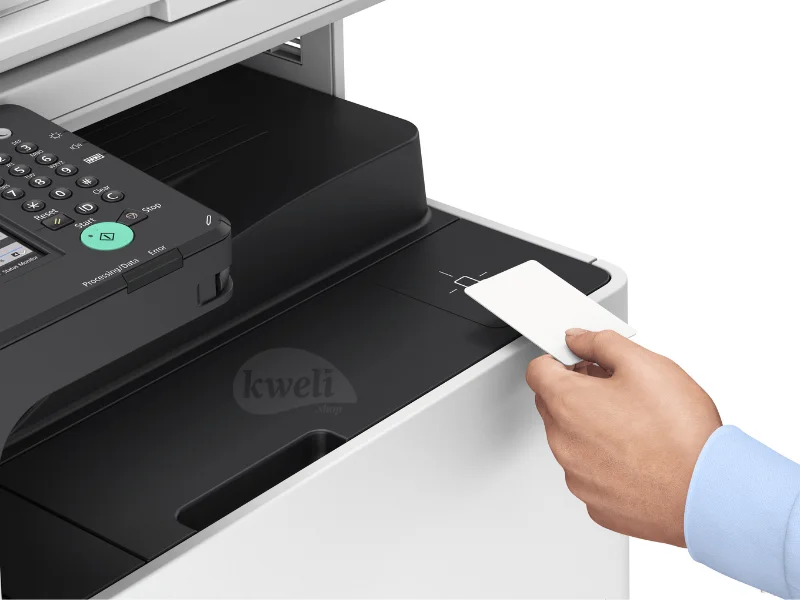

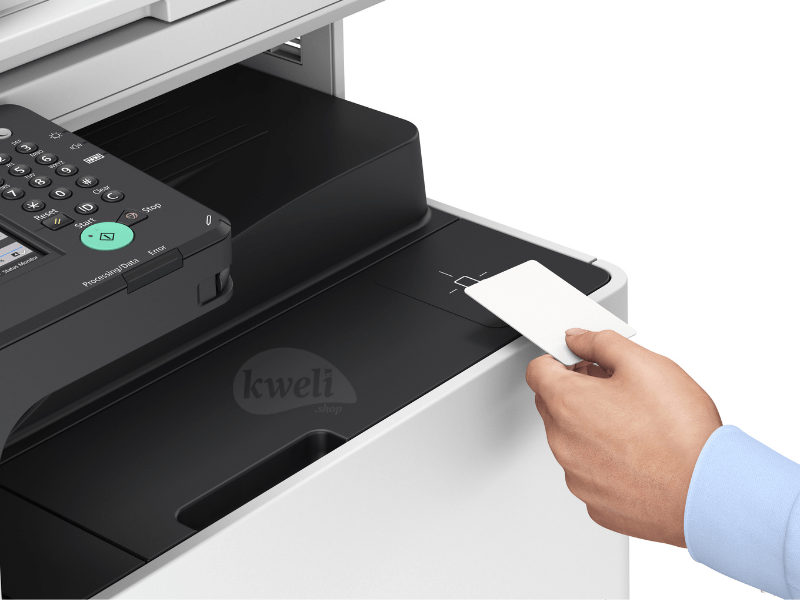

User Authentication (Picture Login, Picture and PIN Login, Function Level Login, Mobile Login), Department ID Authentication (Department ID and PIN Login, Function Level Login), uniFLOW Online Express (PIN Login, Picture Login, Picture and PIN Login, Card Login, Card and PIN Login, Username and Password Login, Department ID and PIN Login, Function Level Login), Access Management System (Access Control)

Document

Print Security (Secure Print, Encrypted SecurePrint, Forced Hold Printing, uniFLOW Secure Print^*9), Receive Data Security (Confidential Fax Inbox Forwarding Received Documents Automatically), Scan Security (Encrypted PDF, Device Signature PDF/XPS, User Signature PDF/XPS^*10), Send Data Security (Confirming FAX number, Allow/Restrict Fax Driver Transmissions, S/MIME Support)

Network

TLS, IPSec, IEEE802.1X authentication, SNMPv3, Firewall Functionality(IP/MAC Address Filtering), Dual Network Support (Wired LAN/Wireless LAN), Enabling/Disabling (Network Applications, Remote UI, USB Interface), G3 FAX separation from LAN, USB Port separation from LAN, Scan and Send -Virus Concerns for E-mail Reception)

Device

Standard Storage Initialize, Protecting MFP Software Integrity, Verify System at Startup

Device Management and Auditing

Administrator Password, Digital Certificate and Key Management, Audit Log, Cooperating with External Security Audit System (Security Information and Event Management), Security Policy Setting

Operating Environment

Temperature: 10 to 30ºC
Humidity: 20 to 80 % RH (Relative Humidity)

Power Source

220-240V 50/60Hz 2.7A

Power Consumption

Maximum: Approx. 1,500 W
Standby: Approx. 22.1 W^*11
Sleep Mode: Approx. 1 W^*12, Approx. 2 W^*13

Toner Cartridge/s

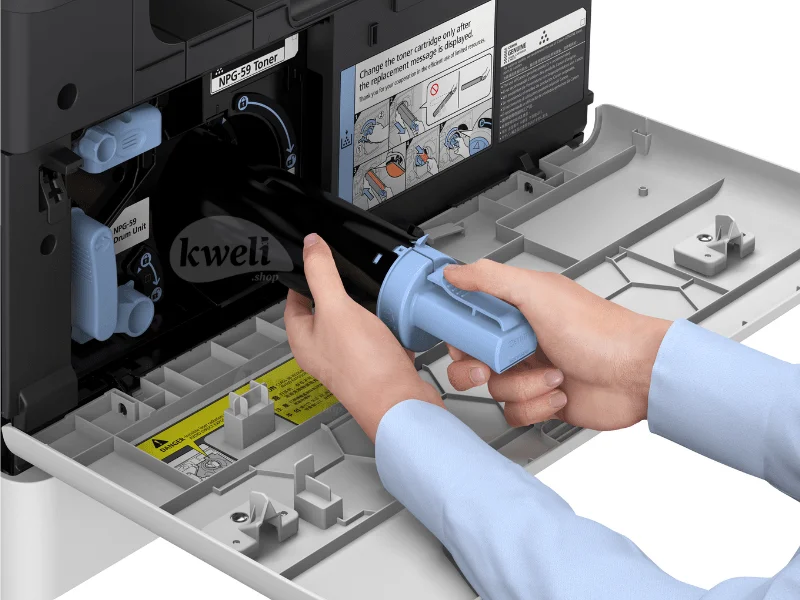

NPG-59 Black Toner

Toner (Estimated Yield @ 6% Coverage)

Black: 10,200 impressions (A4)

Tracking and Reporting

uniFLOW Online Express

Remote Management Tools

iW Management Console
eMaintenance
Content Delivery System

Scanning software

ScanGear

Optimisation Tools

Canon Driver Configuration Tool

Document Publishing

iW Desktop

Cassette Feeding Module-AK1

Cassette Feeding Module-AK1
Paper Capacity: 250 sheets (80gsm)
Paper Type: Plain, Recycled, Color, Pre-punched
Paper Size: A3, A4, A4R, A5, B4, B5, B5R
Custom Size: –
Paper Weight: 64 to 90 gsm
Power Source: Main Unit
Dimensions (W x D x H): 581 x 575 x 92 mm
Weight: Approx. 5.8kg

Others

DADF-AZ2
Platen Cover-AA1

Print Accessories

PCL International Font Set-A1
PS Printer Kit-CM1
PCL Printer Kit-CM1

Send Options

Universal Send Digital User Signature Kit-C1
Universal Send Advanced Feature Set-H1

Barcode Printing

Barcode Printing Kit-D1

System Accessories

Copy Control Interface Kit-D1

Fax Accessories

Super G3 FAX Board-BE1
Remote Fax Kit-A1
