Description

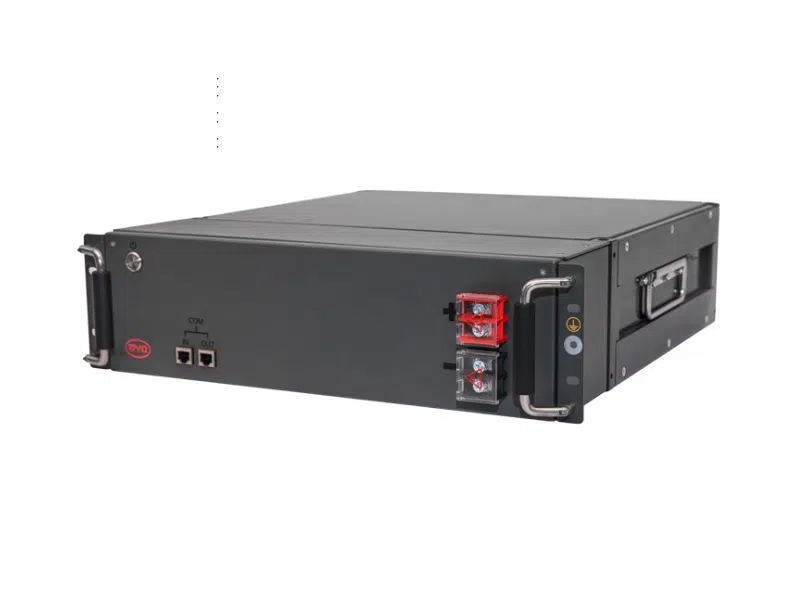

BYD 5.0kWh 51.2V LiFePO₄ Lithium Solar Battery LV Flex Lite
Electrical Specifications
- Battery Chemistry: Lithium Iron Phosphate (cobalt-free)
- Nominal Voltage: 51.2 V
- Operating Voltage Range: 43.2 – 57.6 V
- Capacity: 100Ah
- Usable Energy: 5.0 kWh
- Max Continuous Output Current: 70A
- Peak Output Current: 105A (5 seconds)
- Round-Trip Efficiency: ≥95%
Scalability & System Integration
- Maximum Parallel Units: 64
- Maximum Total Usable Capacity: 320 kWh
- Communication Interface: CAN
- Requires BYD Battery-Box Premium LV BMU
- Compatible with approved inverter list (refer to BYD compatibility guide)
- Installation Method: With or without rack (3U format)
Environmental & Installation
- Enclosure Protection Rating: IP20
- Operating Temperature Range: -10°C to +50°C
- Installation Options: Rack-mounted / Vertical stacking
- Weight: 47 kg
- Dimensions (H × W × D): 132 × 482 × 521 mm
Certifications
- IEC62619
- CE
- UN38.3
- IEC62040
