Showing all 23 resultsSorted by price: high to low
-
Inverter-Chargers, Inverters, Victron Quattro Inverter/Chargers
Victron Quattro 48/10000/140-100/100 Inverter Charger; 48V 10kVA Inverter, 8kW @ 25 °C, Two AC inputs/outputs, Split phase
-31%
Inverter-Chargers, Inverters, Victron Quattro Inverter/ChargersVictron Quattro 48/10000/140-100/100 Inverter Charger; 48V 10kVA Inverter, 8kW @ 25 °C, Two AC inputs/outputs, Split phase
Victron Quattro 48/10000/140-100/100 Inverter Charger
- Two AC Inputs with Integrated Transfer Switch: This can be connected to two independent AC sources (e.g., a public grid and a generator) and will automatically connect to the active source.
- Two AC outputs:
- The main output has no-break functionality, ensuring an uninterrupted power supply to connected loads.
- The second output is active only when AC is available, useful for non-critical loads.
- Split Phase and Three Phase Capabilities:
- Can be configured for split-phase AC output.
- Can be connected in a three-phase configuration, with up to 4 sets of three 15 kVA units for extensive power requirements.
- PowerControl and PowerAssist Features:
- PowerControl manages limited generator or grid power.
- PowerAssist boosts power by supplementing it with battery power during peak loads.
- Solar Integration: Can be used in off-grid or grid-connected PV systems, providing AC power even during a grid failure.
- Remote Monitoring and Control: Supports various monitoring and control options via smartphone, tablet, laptop, or the VRM online portal.
Specifications:
- Battery Voltage: 48 V
- Continuous Output Power:
- At 25 °C: 10,000 VA / 8,000 W
- At 40 °C: 6,500 W
- At 65 °C: 4,500 W
- Peak Power: 20,000 W
- Maximum Continuous Output Current: 37 A
- Efficiency: Up to 96%
- Charger Output:
- Charge Voltage Absorption: 57.6 V
- Charge Voltage Float: 55.2 V
- Storage Mode: 52.8 V
- Charge Current: 140 A
- Dimensions: 470 x 350 x 280 mm
- Weight: 51 kg
- Operating Temperature: -20 to +60 ËšC
- Protection: Includes protection features such as short circuit, overload, battery voltage too high/low, and temperature protection.
SKU: n/a -
MPPT Charge controllers, Solar Charge Controllers, Victron Solar Charge Controllers
Victron SmartSolar Charge Controller MPPT RS 450/200 Tr Isolated; 450V/200A 48V Charge Controller with Bluetooth
-6%
MPPT Charge controllers, Solar Charge Controllers, Victron Solar Charge ControllersVictron SmartSolar Charge Controller MPPT RS 450/200 Tr Isolated; 450V/200A 48V Charge Controller with Bluetooth
Victron SmartSolar Charge Controller MPPT RS 450 200 Tr Isolated
- Rated charge current: 200 amps
- Maximum PV Open Circuit Voltage: 450 volts
- Battery voltage: 48V
- Ultra-fast Maximum Power Point Tracking (MPPT) Solar Charge Controller
The MPPT RS SmartSolar is a 48V solar charge controller with up to 450 VDC PV input and 200 A output. It is used in on-grid and off-grid solar applications where maximum battery charging power is required. - Multiple independent MPPT tracking inputs: With multiple MPPT trackers, you can optimise your solar panel design for maximum performance for your specific location.
- Isolated PV connections for additional safety: Full galvanic isolation between PV and battery connections provides additional overall system safety.
- Wide MPPT voltage range: 65–450 VDC PV operating range, with a 120 VDC PV startup voltage.
- Lightweight, efficient and quiet: Thanks to high-frequency technology and a new design this powerful charger weighs only 13.7 kg for the 200 A model. In addition to this, it has excellent efficiency, low standby power, and a very quiet operation.
- Display and Bluetooth: The display reads battery and controller parameters. The parameters can be accessed with a smartphone or other Bluetooth-enabled device. In addition, Bluetooth can be used to set up the system and to change settings with VictronConnect.
- PV isolation resistance monitoring for peace of mind at higher voltages: The MPPT RS continuously monitors the PV array and can detect if there are faults that reduce the isolation of the panels to unsafe levels.
- VE.Can and VE.Direct port: for connection to a GX device for system monitoring, data logging, and remote firmware updates. VE.Can allows for up to 25 units to be connected together in parallel and synchronise their charging.
- I/O Connections: programmable relay, temperature sensor, auxiliary, digital input and voltage sensor connections. The remote input can accept the Victron small BMS and other BMS with an allow-to-charge signal.
SKU: n/a -
Inverter-Chargers, Inverters, Victron Quattro Inverter/Chargers
Victron Quattro 48/5000/70-100/100 Inverter Charger; 48V 5kVA Inverter, 4kW @ 25 °C, Two AC inputs/outputs, Split phase
-14%
Inverter-Chargers, Inverters, Victron Quattro Inverter/ChargersVictron Quattro 48/5000/70-100/100 Inverter Charger; 48V 5kVA Inverter, 4kW @ 25 °C, Two AC inputs/outputs, Split phase
Victron Quattro 48/5000/70-100/100 Inverter Charger
- Two AC Inputs with Integrated Transfer Switch: This can be connected to two independent AC sources (e.g., a public grid and a generator) and will automatically connect to the active source.
- Two AC outputs:
- The main output has no-break functionality, ensuring an uninterrupted power supply to connected loads.
- The second output is active only when AC is available, useful for non-critical loads.
- Split Phase and Three Phase Capabilities:
- Can be configured for split-phase AC output.
- Can be connected in a three-phase configuration, with up to 4 sets of three 15 kVA units for extensive power requirements.
- PowerControl and PowerAssist Features:
- PowerControl manages limited generator or grid power.
- PowerAssist boosts power by supplementing it with battery power during peak loads.
- Solar Integration: Can be used in off-grid or grid-connected PV systems, providing AC power even during a grid failure.
- Remote Monitoring and Control: Supports various monitoring and control options via smartphone, tablet, laptop, or the VRM online portal.
Specifications:
- Battery Voltage: 48 V
- Continuous Output Power:
- At 25 °C: 5,000 VA / 4,000 W
- At 40 °C: 3,700 W
- At 65 °C: 3,000 W
- Peak Power: 10,000 W
- Maximum Continuous Output Current: 19 A
- Efficiency: Up to 94%
- Charger Output:
- Charge Voltage Absorption: 57.6 V
- Charge Voltage Float: 55.2 V
- Storage Mode: 52.8 V
- Charge Current: 70 A
- Dimensions: 470 x 350 x 280 mm
- Weight: 30 kg
- Operating Temperature: -20 to +60 ËšC
- Protection: Includes protection features such as short circuit, overload, high/low battery voltage, and high-temperature protection.
SKU: n/a -
MPPT Charge controllers, Solar Charge Controllers, Victron Solar Charge Controllers
Victron SmartSolar Charge Controller MPPT RS 450/100 – Tr Isolated; 450V/100A 48V Charge Controller with Bluetooth
-7%
MPPT Charge controllers, Solar Charge Controllers, Victron Solar Charge ControllersVictron SmartSolar Charge Controller MPPT RS 450/100 – Tr Isolated; 450V/100A 48V Charge Controller with Bluetooth
Victron SmartSolar Charge Controller MPPT RS 450 100 – Tr
- Rated charge current: 100 amps
- Maximum PV Open Circuit Voltage: 450 volts
- Ultra-fast Maximum Power Point Tracking (MPPT) Solar Charge Controller
The MPPT RS SmartSolar is a 48V solar charge controller with up to 450 VDC PV input and 100 A output. It is used in on-grid and off-grid solar applications where maximum battery charging power is required. - Multiple independent MPPT tracking inputs: With multiple MPPT trackers, you can optimise your solar panel design for maximum performance for your specific location.
- Isolated PV connections for additional safety: Full galvanic isolation between PV and battery connections provides additional overall system safety.
- Wide MPPT voltage range: 65–450 VDC PV operating range, with a 120 VDC PV startup voltage.
- Lightweight, efficient and quiet: Thanks to high-frequency technology and a new design this powerful charger weighs only 7.9 kg for the 100 A model. In addition to this, it has excellent efficiency, low standby power, and a very quiet operation.
- Display and Bluetooth: The display reads battery and controller parameters. The parameters can be accessed with a smartphone or other Bluetooth-enabled device. In addition, Bluetooth can be used to set up the system and to change settings with VictronConnect.
- PV isolation resistance monitoring for peace of mind at higher voltages: The MPPT RS continuously monitors the PV array and can detect if there are faults that reduce the isolation of the panels to unsafe levels.
- VE.Can and VE.Direct port: for connection to a GX device for system monitoring, data logging, and remote firmware updates. VE.Can allows for up to 25 units to be connected together in parallel and synchronise their charging.
- I/O Connections: programmable relay, temperature sensor, auxiliary, digital input and voltage sensor connections. The remote input can accept the Victron smallBMS, and other BMS with an allow-to-charge signal.
SKU: n/a -
Inverter-Chargers, Victron MultiPlus Inverter/Chargers
Victron MultiPlus 3kVA/2.4kW 24V Inverter Charger 24/3000/70-50 230; 2.4kW Continuous Load, Pure Sine Wave, 70A Battery Charger, 50A Transfer Switch
-22%
Inverter-Chargers, Victron MultiPlus Inverter/ChargersVictron MultiPlus 3kVA/2.4kW 24V Inverter Charger 24/3000/70-50 230; 2.4kW Continuous Load, Pure Sine Wave, 70A Battery Charger, 50A Transfer Switch
Victron MultiPlus 3kVA/2.4kW 24V Inverter Charger 24/3000/70-50 230
- Inverter Power Output (VA): 3,000 VA
- Continuous Output Power (W): 2,400 W (at 25°C)
- Peak Power: 6,000 W
- Input Voltage Range (DC): 19 – 33 V
- Nominal Battery Voltage: 24V
- Output Voltage (AC): 230 V ± 2%
- Output Frequency: 50 Hz or 60 Hz ± 0.1%
Battery Charger
- Charge Voltage (Absorption): 28.8 V
- Charge Voltage (Float): 27.6 V
- Storage Mode Voltage: 26.4 V
- Charge Current: 70 A
- Starter Battery Charge Current: 4 A
- Temperature Sensor: Included
Compatible Battery Types
- Lead-Acid Batteries: AGM, Gel, and Flooded types.
- Lithium-Ion Batteries: Compatible with lithium systems, supporting external Battery Management Systems (BMS).
Transfer Switch
- AC Transfer Capacity: 50 A
Efficiency
- Maximum Efficiency: 94%
- Zero Load Power Consumption:
- In AES Mode: 15 W
- In Search Mode: 8 W
Environmental Specifications
- Operating Temperature Range: -40°C to +65°C (fan-assisted cooling)
- Humidity (Non-condensing): Max. 95%
Physical Specifications
- Dimensions (HxWxD): 362 x 258 x 218 mm
- Weight: 19 kg
- Enclosure Material & Colour: Aluminium, Blue (RAL 5012)
- Protection Category: IP21
SKU: n/a -
Inverter-Chargers, Victron MultiPlus Inverter/Chargers
Victron MultiPlus 3kVA/2.4kW 48V Inverter Charger 48/3000/35-50 230V VE.Bus; 2.4kW Continuous Load, Pure Sine Wave, 35A Battery Charger, 50A Transfer Switch
-42%
Inverter-Chargers, Victron MultiPlus Inverter/ChargersVictron MultiPlus 3kVA/2.4kW 48V Inverter Charger 48/3000/35-50 230V VE.Bus; 2.4kW Continuous Load, Pure Sine Wave, 35A Battery Charger, 50A Transfer Switch
Victron MultiPlus 3kVA/2.4kW 48V Inverter Charger 48/3000/35-50 230V VE.Bus
General Specifications
- Inverter Power Output (VA): 3,000 VA
- Continuous Output Power (W): 2,400 W (at 25°C)
- Peak Power: 6,000 W
- Input Voltage Range (DC): 38 – 64 V
- Nominal Battery Voltage: 48V
- Output Voltage (AC): 230 V ± 2%
- Output Frequency: 50 Hz or 60 Hz ± 0.1%
Battery Charger
- Charge Voltage (Absorption): 57.6 V
- Charge Voltage (Float): 55.2 V
- Storage Mode Voltage: 52.8 V
- Charge Current: 35 A
- Starter Battery Charge Current: 4 A
- Temperature Sensor: Included
Compatible Battery Types
- Lead-Acid Batteries: AGM, Gel, and Flooded types.
- Lithium-Ion Batteries: Compatible with lithium systems, supporting external Battery Management Systems (BMS).
Transfer Switch
- AC Transfer Capacity: 50 A
Efficiency
- Maximum Efficiency: 94%
- Zero Load Power Consumption:
- In AES Mode: 15 W
- In Search Mode: 8 W
Environmental Specifications
- Operating Temperature Range: -40°C to +65°C (fan-assisted cooling)
- Humidity (Non-condensing): Max. 95%
Physical Specifications
- Dimensions (HxWxD): 362 x 258 x 218 mm
- Weight: 19 kg
- Enclosure Material & Colour: Aluminium, Blue (RAL 5012)
- Protection Category: IP21
SKU: n/a -
MPPT Charge controllers, Solar Charge Controllers, Victron Solar Charge Controllers
Victron SmartSolar Charge Controller MPPT 250/100Tr VE.Can; 250V 100A 12/24/36/48 Charge Controller with Bluetooth
-33%
MPPT Charge controllers, Solar Charge Controllers, Victron Solar Charge ControllersVictron SmartSolar Charge Controller MPPT 250/100Tr VE.Can; 250V 100A 12/24/36/48 Charge Controller with Bluetooth
Victron SmartSolar Charge Controller MPPT 250/100Tr VE.Can
- Rated charge current: 100A
- Maximum PV Open Circuit Voltage: 250V
- Ultra-fast Maximum Power Point Tracking (MPPT): Improves energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.
- Advanced Maximum Power Point Detection in case of partial shading conditions: The innovative SmartSolar algorithm will always maximise energy harvest by locking to the optimum MPP.
- Outstanding conversion efficiency: No cooling fan. Maximum efficiency exceeds 99%.
- Flexible charge algorithm: Fully programmable charge algorithm, and eight pre-programmed algorithms, selectable with a rotary switch.
- Extensive electronic protection: over-temperature protection and power derating when the temperature is high, PV short circuit and PV reverse polarity protection, and PV reverse current protection.
- Bluetooth Smart built-in: The wireless solution to set up, monitor, update, and synchronise SmartSolar Charge Controllers.
- Internal temperature sensor and optional external battery voltage, temperature, and current sensing via Bluetooth: A Smart Battery Sense, a BMV-712 Smart Battery Monitor, or a SmartShunt can be used to communicate battery voltage and temperature (and current, in the case of a BMV-712 or a SmartShunt) to one or more SmartSolar Charge Controllers.
- VE.Direct or VE.Can: For a wired data connection to a Colour Control GX, other GX products, PC, or other devices.
- Synchronized parallel charging with VE.Can or Bluetooth: Up to 25 units can be synchronised with VE.Can, and up to 10 units with Bluetooth.
- Fully discharged battery recovery function will initiate charging even if the battery has been discharged to zero volts. will reconnect to a fully discharged Li-ion battery with an integrated disconnect function.
- Remote on-off: To connect, for example, to a VE.BUS BMS.
- Programmable relay: can be programmed to trip on an alarm or other events.
- Optional: SmartSolar pluggable LCD display.
SKU: n/a -
Inverters, Inverters Only (DC-AC), Victron Phoenix Inverters
Victron Energy Phoenix Inverter 2000VA 12V Smart 230V; Pure Sinewave Inverter, Bluetooth, Metal Casing
-27%
Inverters, Inverters Only (DC-AC), Victron Phoenix InvertersVictron Energy Phoenix Inverter 2000VA 12V Smart 230V; Pure Sinewave Inverter, Bluetooth, Metal Casing
Victron Energy Phoenix Inverter 2000VA 12V Smart 230V
The Inverter Smart is an efficient and reliable inverter. Built on our proven and field-tested inverter platform, it has a slimmer design and a full metal casing. Models are available in 1600VA, 2000VA, 3000VA, and 5000VA for 12, 24, or 48V systems.
It’s powerful enough to supply the most common plug-in appliances in your car, boat, caravan, or home. A toroidal transformer provides a high peak power surge capacity, stable voltage, frequency and high-quality sine-wave. Â
Installation is simpler than ever before with terminals now more accessible for the installer, enabling a more professional finish.Â
Bluetooth is built-in and makes setting up your high-power inverter easier.
Configure alarms, alarm relays, voltage cut-off, output voltage, frequency, eco-mode, and more, all from within VictronConnect.SKU: n/a -
Victron MultiPlus Inverter/Chargers, Inverter-Chargers

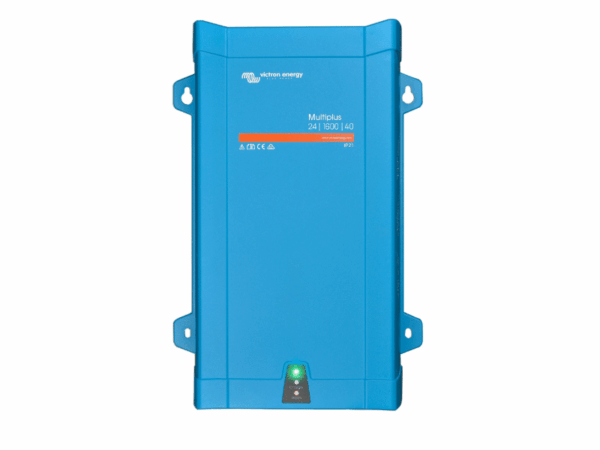

Victron MultiPlus 24/1600/40-16 230V Inverter/Charger; 24V, 1600VA/1300W, 40A Battery Charger, 16A Transfer Switch
-7%
Victron MultiPlus Inverter/Chargers, Inverter-ChargersVictron MultiPlus 24/1600/40-16 230V Inverter/Charger; 24V, 1600VA/1300W, 40A Battery Charger, 16A Transfer Switch
Victron MultiPlus 24/1600/40-16 230V Inverter/Charger
- Pure Sine Wave Output: Reliable AC power for sensitive electronics and appliances.
- Inverter & Charger in One: 1600VA (1300W) inverter with integrated 40A multi-stage battery charger.
- UPS Function: Fast transfer (<20 ms) ensures uninterrupted power during outages.
- PowerAssist & PowerControl: Supplements grid or generator power and prevents overload.
- Flexible System Expansion: Parallel operation (up to 6 units) and 3-phase configuration options.
- Smart Battery Charging: Adaptive algorithm with bulk, absorption, float, and storage modes.
- Remote Monitoring & Control: Via VE.Bus, GX devices (e.g. Cerbo GX) and VRM Portal.
- Comprehensive Protection: Overload, short circuit, high/low battery voltage, and over-temperature safeguards.
SKU: n/a -
MPPT Charge controllers, Solar Charge Controllers, Victron Solar Charge Controllers
Victron SmartSolar Charge Controller MPPT 150/100Tr VE.Can; 150V 100A 12/24/36/48 Charge Controller with Bluetooth
-24%
MPPT Charge controllers, Solar Charge Controllers, Victron Solar Charge ControllersVictron SmartSolar Charge Controller MPPT 150/100Tr VE.Can; 150V 100A 12/24/36/48 Charge Controller with Bluetooth
Victron SmartSolar Charge Controller MPPT 150/100Tr VE.Can
-
Ultra-fast MPPT: Enhances energy harvest by up to 30% compared to PWM controllers and up to 10% compared to slower MPPT controllers, especially in varying light conditions.
-
Advanced MPPT Detection: Optimises energy harvest under partial shading conditions by ensuring the controller locks onto the optimal MPP, avoiding suboptimal points.
-
High Efficiency: No cooling fan is required; efficiency exceeds 98%.
-
Flexible Charge Algorithm: Fully programmable with eight pre-set algorithms, offering customisation for different battery types.
-
Robust Protection: Includes over-temperature, PV short circuit, reverse polarity, and current protection.
-
Bluetooth Smart Built-in: Enables wireless setup, monitoring, updates, and synchronisation with other Victron devices.
-
Wired Connectivity: Options for VE.Direct or VE.Can connect to other systems or monitoring devices.
-
Battery Recovery Function: Capable of charging batteries discharged to zero volts and reconnecting to fully discharged Li-ion batteries with integrated disconnect functions.
-
Programmable Relay: Allows for custom alarms or event-triggered actions.
-
Optional LCD Display: Easily attachable to the front of the controller for on-site monitoring
- Â
ÂSKU: n/a -
-
MPPT Charge controllers, Solar Charge Controllers, Victron Solar Charge Controllers
Victron SmartSolar Charge Controller MPPT 150/70Tr VE.Can; 150V 70A 12/24/36/48 Charge Controller with Bluetooth
-26%
MPPT Charge controllers, Solar Charge Controllers, Victron Solar Charge ControllersVictron SmartSolar Charge Controller MPPT 150/70Tr VE.Can; 150V 70A 12/24/36/48 Charge Controller with Bluetooth
Victron SmartSolar Charge Controller MPPT 150/70Tr VE.Can
- Rated charge current: 70A
- Maximum PV Open Circuit Voltage: 150V
- Ultra-fast MPPT: Enhances energy harvest by up to 30% compared to PWM controllers and up to 10% compared to slower MPPT controllers, especially in varying light conditions.
- Advanced MPPT Detection: Optimises energy harvest under partial shading conditions by ensuring the controller locks onto the optimal MPP, avoiding suboptimal points.
- High Efficiency: No cooling fan is required; efficiency exceeds 98%.
- Flexible Charge Algorithm: Fully programmable with eight pre-set algorithms, offering customisation for different battery types.
- Robust Protection: Includes over-temperature, PV short circuit, reverse polarity, and current protection.
- Bluetooth Smart Built-in: Enables wireless setup, monitoring, updates, and synchronisation with other Victron devices.
- Wired Connectivity: Options for VE.Direct or VE.Can connect to other systems or monitoring devices.
- Battery Recovery Function: Capable of charging batteries discharged to zero volts and reconnecting to fully discharged Li-ion batteries with integrated disconnect functions.
- Programmable Relay: Allows for custom alarms or event-triggered actions.
- Optional LCD Display: Easily attachable to the front of the controller for on-site monitoring
ÂSKU: n/a -
Inverters, Inverters Only (DC-AC), Solar, Backup & UPS, Victron Phoenix Inverters
Victron Phoenix 1200VA 48V Inverter VE.Direct; 1000W Continuous Power, 2200W Peak, Pure Sine Wave, ECO Mode, Remote On/Off
-33%
Inverters, Inverters Only (DC-AC), Solar, Backup & UPS, Victron Phoenix InvertersVictron Phoenix 1200VA 48V Inverter VE.Direct; 1000W Continuous Power, 2200W Peak, Pure Sine Wave, ECO Mode, Remote On/Off
The Victron Phoenix 48/1200 Inverter VE.Direct is a high-efficiency pure sine wave inverter that converts 48V DC battery power into clean 230V AC output. With a continuous output of 1000W (1200VA) and peak power of 2200W, it is ideal for running sensitive electronics and demanding appliances in off-grid, backup, or mobile applications. It includes VE.Direct for advanced configuration and monitoring, ECO mode for energy savings, and a remote on/off terminal for flexible control.
- Model: Victron Phoenix Inverter 48/1200 VE.Direct
- Continuous Output Power at 25°C: 1200VA
- Output Power at 40°C: 1000W
- Peak Power: 2200W
- Input Voltage Range: 36.8V – 62.0V DC
- Output Voltage / Frequency: 230VAC ±3%, 50Hz or 60Hz ±0.1% (adjustable)
- Max Efficiency: 92%
- Zero-load Power Consumption: 10W (1.5W in ECO mode)
- DC Connection: Screw terminals
- Max Cable Cross-Section: 25 mm² / AWG 4
- Dimensions (H x W x D): 117 x 232 x 327 mm
- Weight: 7.4 kg
- Cooling: Fan-assisted
- IP Rating: IP21
- Operating Temperature: –40°C to +65°C (derates above 40°C)
SKU: n/a -
Inverters, Inverters Only (DC-AC), Solar, Backup & UPS, Victron Phoenix Inverters
Victron Phoenix 1200VA 24V Inverter VE.Direct; 1000W Continuous Power, 2200W Peak, Pure Sine Wave, ECO Mode, Remote On/Off
-16%
Inverters, Inverters Only (DC-AC), Solar, Backup & UPS, Victron Phoenix InvertersVictron Phoenix 1200VA 24V Inverter VE.Direct; 1000W Continuous Power, 2200W Peak, Pure Sine Wave, ECO Mode, Remote On/Off
The Victron Phoenix 24/1200 Inverter VE.Direct is a high-capacity pure sine wave inverter designed to convert 24V DC power into clean 230V AC output for use with sensitive electronics and demanding appliances. It delivers 1000W of continuous output (1200VA) and up to 2200W peak power. With VE.Direct connectivity, remote on/off capabilities, and ECO mode, it’s a robust and intelligent solution for off-grid, mobile, or backup systems.
- Model: Victron Phoenix Inverter 24/1200 VE.Direct
- Continuous Output Power at 25°C: 1200VA
- Output Power at 40°C: 1000W
- Peak Power: 2200W
- Input Voltage Range: 18.4V – 34.0V DC
- Output Voltage / Frequency: 230VAC ±3%, 50Hz or 60Hz ±0.1% (user configurable)
- Max Efficiency: 91%
- Zero-load Power Consumption: 8W (1.5W in ECO mode)
- DC Connection: Screw terminals
- Max Cable Cross-Section: 25 mm² / AWG 4
- Dimensions (H x W x D): 117 x 232 x 327 mm
- Weight: 7.4 kg
- Cooling: Fan-assisted
- IP Rating: IP21
- Operating Temperature: –40°C to +65°C (derating above 40°C)
SKU: n/a -
Inverters
Victron Energy Inverter 800VA 12V; Pure Sinewave Inverter, NEMA GFCI, Metal Casing
Victron Energy Inverter, 800VA 12V
- This Victron Energy Inverter allows you to power domestic equipment requiring 120VAC or 230VAC, using leisure or automotive batteries rated at 12-Volt DC
- The pure sine wave output delivers 800-watt Continuous power, 1500-watt peak power with high efficiency, 1-watt draw in zero-load power ECO mode
- This inverter can be operated and monitored with computers, tablets and smartphones because of the VE. Direct communication port. Cables and dongles are sold separately
- High start-up power is used to start loads such as power converters for LED lamps or electric tools. In ECO mode, the inverter will switch to standby when the load decreases
- Employing the hybrid HF technology, the result is a top-quality product with compact dimensions, light in weight and is capable of supplying power, problem-free, to any load
SKU: n/a -
Inverters, Inverters Only (DC-AC), Solar, Backup & UPS, Victron Phoenix Inverters
Victron Phoenix 500VA 24V Inverter VE.Direct; 400W Continuous Power, 900W Peak, Pure Sine Wave, ECO Mode, Remote On/Off
-2%
Inverters, Inverters Only (DC-AC), Solar, Backup & UPS, Victron Phoenix InvertersVictron Phoenix 500VA 24V Inverter VE.Direct; 400W Continuous Power, 900W Peak, Pure Sine Wave, ECO Mode, Remote On/Off
The Victron Phoenix 24/500 Inverter VE.Direct is a high-quality pure sine wave inverter designed to provide stable 230V AC power from a 24V DC battery source. Delivering 400W of continuous power and 900W of peak capacity, this inverter is ideal for small appliances and sensitive electronics in off-grid, mobile, or backup setups. It features VE.Direct connectivity for configuration and monitoring, energy-saving ECO mode, and a remote on/off terminal for system integration.
- Model: Victron Phoenix Inverter 24/500 VE.Direct
- Continuous Output Power at 25°C: 500VA
- Output Power at 40°C: 400W
- Peak Power: 900W
- Input Voltage Range: 18.4V – 34.0V DC
- Output Voltage / Frequency: 230VAC ±3%, 50Hz or 60Hz ±0.1% (user configurable)
- Max Efficiency: 90%
- Zero-load Power Consumption: 6.5W (1.5W in ECO mode)
- DC Connection: Screw terminals (no special tools required)
- Dimensions (H x W x D): 86 x 172 x 275 mm
- Weight: 3.9 kg
- Cooling: Fan-assisted
- IP Rating: IP21
- Operating Temperature: –40°C to +65°C (with derating above 40°C)
SKU: n/a -
Inverters, Inverters Only (DC-AC), Solar, Backup & UPS, Victron Phoenix Inverters
Victron Phoenix 375VA 48V Inverter VE.Direct; 300W Continuous Power, 700W Peak, Pure Sine Wave, ECO Mode, Remote On/Off
-8%
Inverters, Inverters Only (DC-AC), Solar, Backup & UPS, Victron Phoenix InvertersVictron Phoenix 375VA 48V Inverter VE.Direct; 300W Continuous Power, 700W Peak, Pure Sine Wave, ECO Mode, Remote On/Off
The Victron Phoenix 48/375 Inverter VE.Direct is a reliable pure sine wave inverter that delivers clean 230V AC power from a 48V DC battery. With a continuous output of 300W and peak power of 700W, it is suitable for powering small appliances and sensitive electronics in off-grid, backup, and mobile applications. The inverter supports VE.Direct communication for remote monitoring and configuration, ECO mode for improved energy efficiency, and a remote on/off terminal for integration into control systems.
- Model: Victron Phoenix Inverter 48/375 VE.Direct
- Continuous Output Power at 25°C: 375VA
- Output Power at 40°C: 300W
- Peak Power: 700W
- Input Voltage Range: 36.8V – 62.0V DC
- Output Voltage / Frequency: 230VAC ±3%, 50Hz or 60Hz ±0.1% (configurable)
- Max Efficiency: 90%
- Zero-load Power Consumption: 8.5W (1.4W in ECO mode)
- DC Connection: Screw terminals (tool-free installation)
- Dimensions (H x W x D): 86 x 165 x 260 mm
- Weight: 3.0 kg
- Cooling: Natural convection
- IP Rating: IP21
- Operating Temperature: –40°C to +65°C (derating above 40°C)
SKU: n/a -
Inverters, Inverters Only (DC-AC), Solar, Backup & UPS, Victron Phoenix Inverters
Victron Phoenix 500VA 12V Inverter VE.Direct; 400W Continuous Power, 900W Peak, Pure Sine Wave, ECO Mode, Remote On/Off
-9%
Inverters, Inverters Only (DC-AC), Solar, Backup & UPS, Victron Phoenix InvertersVictron Phoenix 500VA 12V Inverter VE.Direct; 400W Continuous Power, 900W Peak, Pure Sine Wave, ECO Mode, Remote On/Off
The Victron Phoenix 500VA 12V Inverter VE. Direct is a pure sine wave inverter designed for reliable power delivery in off-grid, mobile, and backup systems. With 400 400W of continuous output and a 900W peak, it is perfect for small appliances, electronics, and other sensitive devices. This version includes a built-in UK socket and offers advanced connectivity via the VE. Direct communication port for real-time monitoring and configuration.
- Model: Victron Phoenix 12/500UK-230V
- Continuous Output Power at 25°C: 500VA
- Continuous Output Power at 40°C: 400W
- Peak Power: 900W
- Input Voltage Range: 9.2V – 17V DC
- Output Voltage / Frequency: 230V ±3%, 50Hz or 60Hz ±0.1%
- Efficiency: Up to 90%
- Zero-load Consumption: 6W (1W in ECO mode)
- Socket Type: UK (BS 1363)
- DC Connection: Screw terminals (tool-free)
- Dimensions (H x W x D): 86 x 172 x 275 mm
- Weight: 3.9 kg
- Cooling: Fan-assisted
- IP Rating: IP21
- Operating Temp: –40°C to +65°C (with derating above 40°C)
SKU: n/a -
Inverters, Inverters Only (DC-AC), Solar, Backup & UPS, Victron Phoenix Inverters
Victron Phoenix 375VA 24V Inverter VE.Direct; 300W Continuous Power, 700W Peak, Pure Sine Wave, ECO Mode, Remote On/Off
-11%
Inverters, Inverters Only (DC-AC), Solar, Backup & UPS, Victron Phoenix InvertersVictron Phoenix 375VA 24V Inverter VE.Direct; 300W Continuous Power, 700W Peak, Pure Sine Wave, ECO Mode, Remote On/Off
The Victron Phoenix 24/375 Inverter VE.Direct is a high-quality pure sine wave inverter that converts 24V DC battery power into clean 230V AC electricity. Designed for reliability and versatility, it delivers 300W of continuous output and up to 700W peak power, making it ideal for powering sensitive electronics and small appliances in mobile, off-grid, or backup applications. The inverter features VE.Direct communication for monitoring and configuration, ECO mode for energy savings, and a remote on/off terminal for flexible control.
- Model: Victron Phoenix Inverter 24/375 VE.Direct
- Continuous Output Power at 25°C: 375VA
- Output Power at 40°C: 300W
- Peak Power: 700W
- Input Voltage Range: 18.4V – 34.0V DC
- Output Voltage / Frequency: 230VAC ±3%, 50Hz or 60Hz ±0.1% (user configurable)
- Max Efficiency: 89%
- Zero-load Power Consumption: 6.1W (1.4W in ECO mode)
- DC Connection: Screw terminals (no special tools needed)
- Dimensions (H x W x D): 86 x 165 x 260 mm
- Weight: 3.0 kg
- Cooling: Natural convection
- IP Rating: IP21
- Operating Temperature: –40°C to +65°C (derates above 40°C)
SKU: n/a -
MPPT Charge controllers, Solar Charge Controllers, Victron Solar Charge Controllers
Victron SmartSolar Charge Controller MPPT 100/30; 100V 30A 12/24V Charge Controller with Bluetooth
-30%
MPPT Charge controllers, Solar Charge Controllers, Victron Solar Charge ControllersVictron SmartSolar Charge Controller MPPT 100/30; 100V 30A 12/24V Charge Controller with Bluetooth
Victron SmartSolar Charge Controller MPPT 100/30
- Rated Charge Current: 30 A,Â
- Maximum PV Open Circuit Voltage: 100 V
- Ultra-fast MPPT: Improves energy harvest by up to 30% compared to PWM controllers.
- Advanced MPPT Detection: Maximises energy harvest even in partial shading conditions.
- High Efficiency: Features an outstanding conversion efficiency of over 98% without the need for a cooling fan.
- Flexible Charge Algorithm: Fully programmable with multiple pre-set algorithms.
- Extensive Protection: Includes over-temperature, PV short circuit, PV reverse polarity, and reverse current protection.
- Bluetooth Smart Built-in: Allows for wireless setup, monitoring, updates, and synchronisation.
- VE.Direct Port: For wired connections to various devices.
- Battery Recovery Function: Can initiate charging for batteries discharged to zero volts and reconnect to fully discharged Li-ion batteries.
SKU: n/a -
Inverters, Inverters Only (DC-AC), Solar, Backup & UPS, Victron Phoenix Inverters
Victron 375VA 12V Phoenix Inverter VE.Direct; Pure Sine Wave, 300W Continuous Power, 700W Peak, ECO Mode, Remote On/Off, Bluetooth Monitoring Option
-12%
Inverters, Inverters Only (DC-AC), Solar, Backup & UPS, Victron Phoenix InvertersVictron 375VA 12V Phoenix Inverter VE.Direct; Pure Sine Wave, 300W Continuous Power, 700W Peak, ECO Mode, Remote On/Off, Bluetooth Monitoring Option
The Victron Phoenix 12/375 is a compact, high-performance pure sine wave inverter designed for powering AC loads from a 12V battery. With its reliable performance, configurable features, and VE. Direct connectivity, it’s ideal for off-grid, mobile, and backup applications.
- Model: Victron Phoenix Inverter 12/375 VE.Direct
- Rated Continuous Power (at 25°C): 375VA
- Continuous Output at 40°C: 300W
- Peak Power: 700W
- Output Voltage / Frequency: 230VAC ±3%, 50Hz or 60Hz ±0.1% (configurable)
- Input Voltage Range: 9.2V – 17V DC
- Efficiency: Up to 89%
- Zero-load Power Consumption: 5.6W (0.9W in ECO mode)
- Dimensions (H x W x D): 86 x 165 x 260 mm
- Weight: 3.0 kg
- DC Connection: Screw terminals (tool-free)
- AC Output Options: Schuko, IEC-320, UK, or AU/NZS socket
- IP Rating: IP21
- Operating Temperature: –40°C to +65°C (with derating above 40°C)
SKU: n/a -
Inverters, Inverters Only (DC-AC), Solar, Backup & UPS, Victron Phoenix Inverters
Victron Phoenix 250VA 24V Inverter VE.Direct; 200W Continuous Power, 400W Peak, Pure Sine Wave, ECO Mode, Remote On/Off
-11%
Inverters, Inverters Only (DC-AC), Solar, Backup & UPS, Victron Phoenix InvertersVictron Phoenix 250VA 24V Inverter VE.Direct; 200W Continuous Power, 400W Peak, Pure Sine Wave, ECO Mode, Remote On/Off
The Victron Phoenix 24/250 Inverter VE.Direct is a compact, pure sine wave inverter designed to deliver reliable 230V AC power from a 24V DC battery. With 200W continuous output (250VA) and 400W peak power, it’s ideal for powering small, sensitive devices in off-grid, mobile, or backup power systems. The inverter includes VE.Direct connectivity for real-time monitoring and configuration and features energy-saving ECO mode and full electronic protection.
- Model: Victron Phoenix Inverter 24/250 VE.Direct
- Continuous Output Power at 25°C: 250VA
- Output Power at 40°C: 200W
- Peak Power: 400W
- Input Voltage Range: 18.4V – 34.0V DC
- Output Voltage / Frequency: 230VAC ±3%, 50Hz or 60Hz ±0.1% (user configurable)
- Efficiency: Up to 88%
- Zero-load Power Consumption: 5.2W (1.3W in ECO mode)
- DC Connection: Screw terminals (tool-free installation)
- Dimensions (H x W x D): 86 x 165 x 260 mm
- Weight: 2.4 kg
- Cooling: Natural convection
- IP Rating: IP21
- Operating Temperature: –40°C to +65°C (derates above 40°C)
SKU: n/a -
Inverters, Inverters Only (DC-AC), Solar, Backup & UPS, Victron Phoenix Inverters
Victron Phoenix 250VA 48V Inverter VE.Direct; 200W Continuous Power, 400W Peak, Pure Sine Wave, ECO Mode, Remote On/Off
-33%
Inverters, Inverters Only (DC-AC), Solar, Backup & UPS, Victron Phoenix InvertersVictron Phoenix 250VA 48V Inverter VE.Direct; 200W Continuous Power, 400W Peak, Pure Sine Wave, ECO Mode, Remote On/Off
The Victron Phoenix 48/250 Inverter VE.Direct delivers reliable 230V AC power from a 48V DC battery system using proven pure sine wave technology. Compact and efficient, this inverter is ideal for powering sensitive electronics and small appliances in off-grid, mobile, or backup systems. It supports VE.Direct connectivity for advanced monitoring and configuration, and features ECO mode for power saving during low-load operation.
- Model: Victron Phoenix Inverter 48/250 VE.Direct
- Continuous Output Power at 25°C: 250VA
- Output Power at 40°C: 200W
- Peak Power: 400W
- Input Voltage Range: 36.8V – 62.0V DC
- Output Voltage / Frequency: 230VAC ±3%, 50Hz or 60Hz ±0.1% (adjustable)
- Max Efficiency: 88%
- Zero-load Power Consumption: 7.9W (2.5W in ECO mode)
- DC Connection: Screw terminals (no special tools required)
- Dimensions (H x W x D): 86 x 165 x 260 mm
- Weight: 2.4 kg
- Cooling: Natural convection
- IP Rating: IP21
- Operating Temperature: –40°C to +65°C (derating above 40°C)
SKU: n/a -
Inverters, Inverters Only (DC-AC), Solar, Backup & UPS, Victron Phoenix Inverters
Victron 250VA 12V Phoenix Inverter VE.Direct; Pure Sine Wave, 200W Continuous Power, 400W Peak, ECO Mode, Remote On/Off, Compact Design
-13%
Inverters, Inverters Only (DC-AC), Solar, Backup & UPS, Victron Phoenix InvertersVictron 250VA 12V Phoenix Inverter VE.Direct; Pure Sine Wave, 200W Continuous Power, 400W Peak, ECO Mode, Remote On/Off, Compact Design
The Victron Phoenix 250VA 12V Inverter is a compact, reliable, pure sine wave inverter designed for small AC loads. Ideal for mobile and off-grid applications, it delivers clean power and supports remote monitoring and configuration through the VE.Direct communication port.
- Continuous Output Power: 200W at 40°C (250VA at 25°C)
- Peak Power: 400W
- Output Voltage / Frequency: 230VAC ±3%, 50Hz or 60Hz (selectable)
- Input Voltage Range: 9.2V – 17.0V DC
- Efficiency: Up to 87%
- Zero-load Power Consumption: 4.2W (0.8W in ECO mode)
- Dimensions (H x W x D): 86 x 165 x 260 mm
- Weight: 2.4 kg
- DC Connection: Screw terminals (no special tools needed)
- AC Output Socket: Schuko or IEC-320 (check model variant)
- Protection: Short circuit, overload, over-voltage, under-voltage, over-temperature
- Cooling: Fan-assisted, with derating above 40°C
- Ingress Protection: IP21
- Operating Temperature: -40°C to +65°C
Â
SKU: n/a
