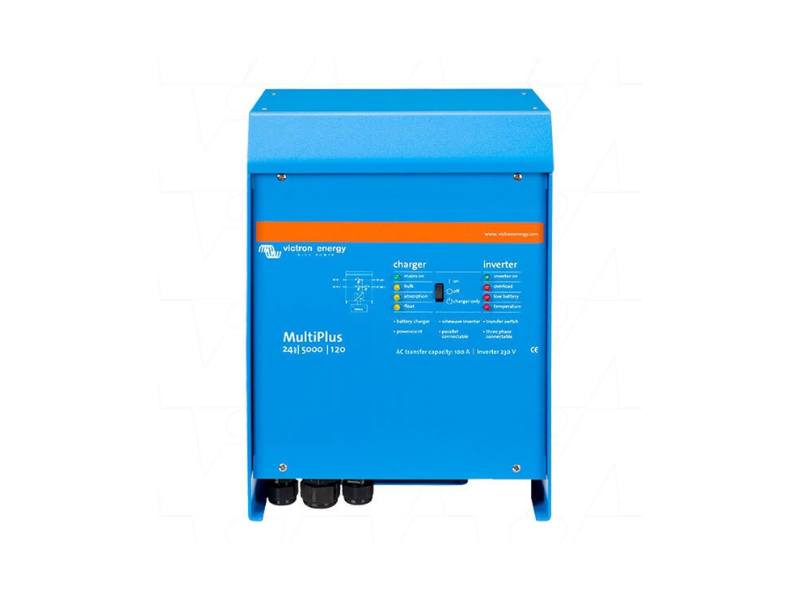

Victron MultiPlus 5000VA/4000W 24V Inverter/Charger 24/5000/120-100; 230V, 120A Charger, 100A Transfer Switch, PowerAssist

Victron MultiPlus 5000VA/4000W 24V Inverter/Charger 24/5000/120-100

• Inverter output: 5000VA / 4000W continuous rated output
• AC output: 230VAC pure sine wave for standard 230V loads
• Battery compatibility: Suitable for 24V battery systems
• Battery charger: 120A adaptive AC battery charger
• Transfer capacity: 100A automatic AC transfer switch
• PowerAssist: Supplements limited grid or generator power with battery power during demand peaks
• PowerControl: Limits AC input demand to avoid overloading a generator or restricted grid supply
• Charging profile: Adaptive multi-stage charging for efficient battery charging and maintenance
• System integration: VE.Bus communication for configuration, monitoring and Victron GX integration
• Expandable system: Supports compatible parallel and three-phase Victron configurations

The Victron MultiPlus 24/5000/120-100 combines a 5kVA pure sine wave inverter, a 120A adaptive battery charger and a 100A transfer switch in one 24V inverter/charger. It is designed for backup, off-grid, marine, mobile and hybrid power systems where high surge capability, generator/grid support and system integration are required.

PowerControl and PowerAssist help manage limited grid or generator capacity, while VE.Bus supports system integration, remote monitoring and parallel or three-phase configurations.

Best For

Large residential backup systems, off-grid homes, commercial backup loads, telecom and industrial applications, marine systems, generator-assisted systems and expandable Victron installations requiring parallel or three-phase operation.

• Model: MultiPlus 24/5000/120-100 230V
• Product code: PMP245021010
• Nominal battery voltage: 24V
• DC input voltage range: 19-33VDC
• Rated apparent power: 5000VA
• Continuous output at 25°C: 4000W
• Continuous output at 40°C: 3700W
• Continuous output at 65°C: 3000W
• Peak power: 10,000W
• AC output: 230VAC ±2%, 50Hz ±0.1%
• Maximum continuous AC output current: 19A
• Maximum efficiency: 94%
• AC input: 187-250VAC, 50/60Hz
• Maximum feed-through current: 100A
• House battery charge current: 120A at 25°C
• Starter battery charge output: 4A
• Auxiliary AC output: Up to 50A; disconnects when external AC is unavailable
• Communications: VE.Bus plus 2 general-purpose communication ports
• Parallel/three-phase operation: Supported
• Enclosure: Aluminium, IP20
• Dimensions: 444 × 328 × 240mm
• Weight: 30kg

Suitable for 24V battery systems and compatible with Victron GX devices for monitoring and control. It can be integrated into systems using grid, generators, solar charging and battery storage. Battery type, bank capacity, BMS requirements, cabling and protection must be correctly engineered for the installation.

This is a 24V, 5kVA inverter/charger with high DC current demand. Confirm the battery bank can safely supply the required current and that DC cabling, fusing, AC protection, earthing and ventilation are designed accordingly. The unit is IP20 and should be installed in a dry, protected environment.
