Description

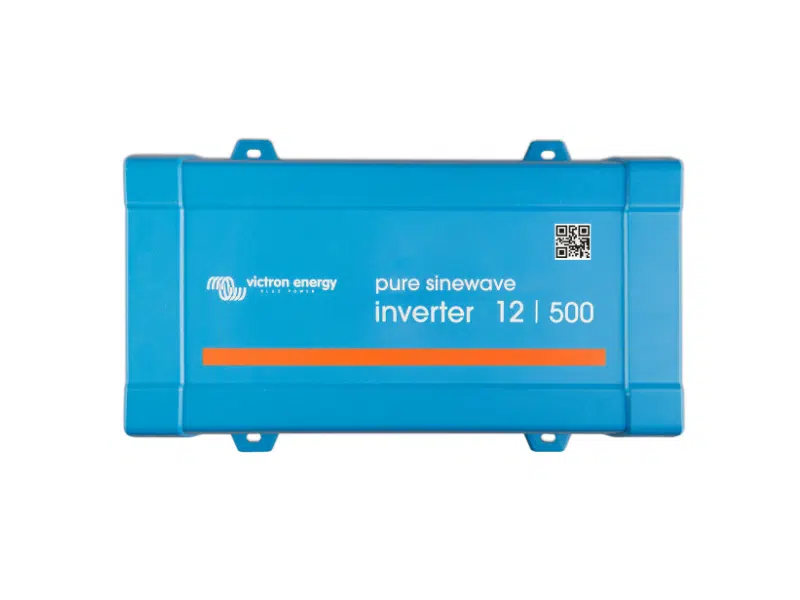

Victron Phoenix 500VA 12V Inverter VE.Direct specifications
- Model: Victron Phoenix 12/500UK-230V
- Continuous Output Power at 25°C: 500VA
- Continuous Output Power at 40°C: 400W
- Peak Power: 900W
- Input Voltage Range: 9.2V – 17V DC
- Output Voltage / Frequency: 230V ±3%, 50Hz or 60Hz ±0.1%
- Efficiency: Up to 90%
- Zero-load Consumption: 6W (1W in ECO mode)
- Socket Type: UK (BS 1363)
- DC Connection: Screw terminals (tool-free)
- Dimensions (H x W x D): 86 x 172 x 275 mm
- Weight: 3.9 kg
- Cooling: Fan-assisted
- IP Rating: IP21
- Operating Temp: –40°C to +65°C (with derating above 40°C)
Key Features:
- Pure Sine Wave Output: For smooth, stable AC power
- VE.Direct Port: Connects to PC, smartphone, or tablet (with optional dongle)
- Remote On/Off Terminal: For system integration or remote switches
- High Surge Capability: Starts devices with high inrush current
- ECO Mode: Saves energy during low-load operation
- Full Protection Suite: Against overload, short circuit, voltage extremes, and overheat
- LED Diagnostics: Fast fault and status feedback
Ideal For:
- Sensitive electronics (laptops, TVs, medical devices)
- Solar and battery backup systems
- Mobile homes, campervans, and marine setups
- Off-grid and rural power applications
