Inverter-Chargers, Inverters, Inverters Only (DC-AC), Victron Phoenix Inverters
Victron Energy Phoenix Inverter 24V 3000 VA Smart 230V; Pure Sinewave Inverter, Bluetooth, Metal Casing
Availability:
Out of stock

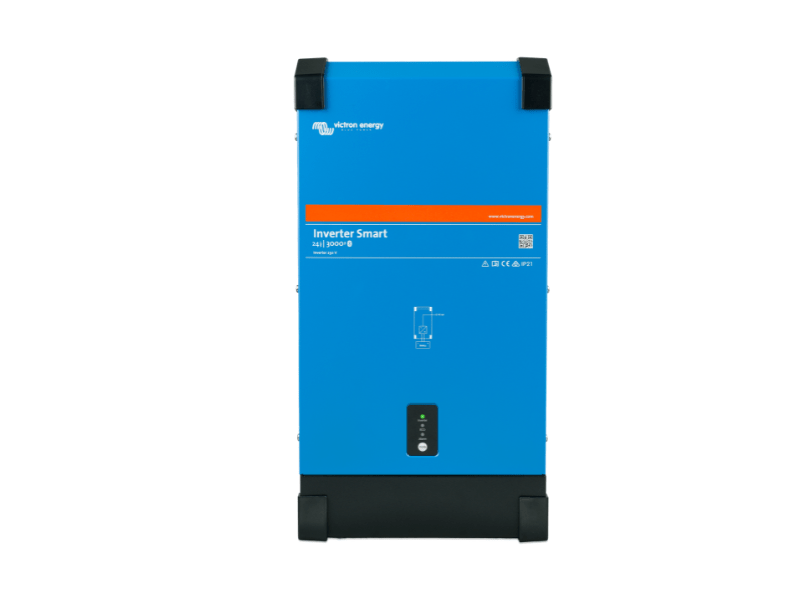

Victron Energy Phoenix Inverter 24V 3000 VA Smart 230V
The Inverter Smart is an efficient and reliable inverter. Built on our proven and field-tested inverter platform, it has a slimmer design and a full metal casing. Models are available in 1600 VA, 2000 VA, and 5000 VA for 12, or 24 systems.
It’s powerful enough to supply the most common plug-in appliances in your home, car, boat, or caravan. A toroidal transformer provides a high peak power surge capacity, stable voltage, frequency and high-quality sine-wave.

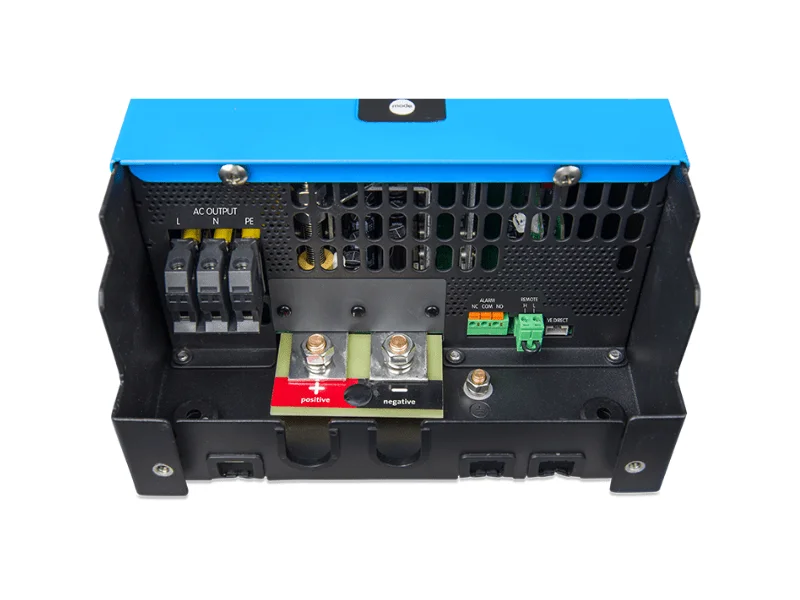

Installation is simpler than ever before, with terminals now more accessible for the installer, enabling a more professional finish.
Bluetooth is built-in and makes setting up your high-power inverter easier.
Configure alarms, alarm relays, voltage cut-off, output voltage, frequency, eco-mode, and more, all from within VictronConnect.
- Input Voltage Range: 18.6 – 34 V
- Output Voltage: 230 VAC ±2%
- Frequency: 50 Hz or 60 Hz ± 0.1%
- Continuous Output Power at 25ºC: 3000 VA (2400 W)
- Continuous Output Power at 40ºC: 2200 W
- Continuous Output Power at 65ºC: 1700 W
- Peak Power: 6000 W
- Dynamic (Load Dependent) DC Low Shutdown: Fully configurable
- Max Efficiency: 94%
- Zero Load Power: 13 W
- Zero Load Power in ECO Mode: 1.9 W
- Operating Temperature Range: -40 to +65 ºC (fan-assisted cooling)
- Humidity (Non-Condensing): Max 95%
- Weight: 19 kg
- Dimensions (HxWxD): 485 x 285 x 150 mm
Additional features;
- Bluetooth Built-in: Fully configurable with a tablet or smartphone
- VE. Direct Communication Port: For remote monitoring and system integration
- Programmable Relay: For general alarm, DC under-voltage, or genset start/stop function
- Remote On/Off: Yes
- Protection:
- a) Output short circuit
- b) Overload
- c) Battery voltage too high
- d) Battery voltage too low
- e) Temperature too high
- f) 230 VAC on inverter output
- g) Input voltage ripple is too high
UGX3,790,000 UGX4,190,000
Out of stock
Based on 0 reviews
Only logged in customers who have purchased this product may leave a review.
Related products
-
Hybrid Inverters, Inverters, SRNE Inverters
SRNE 3kVA/3kW 24V Hybrid Inverter HF2430S60-100; Built-in 60A MPPT Solar Charge Controller 1400Wp/100Voc/30-95V, Pure Sine Wave Output
-18%
Hybrid Inverters, Inverters, SRNE InvertersSRNE 3kVA/3kW 24V Hybrid Inverter HF2430S60-100; Built-in 60A MPPT Solar Charge Controller 1400Wp/100Voc/30-95V, Pure Sine Wave Output
SRNE 3kVA/3kW 24V Hybrid Inverter HF2430S60-100
General Specifications
- Model: HF2430S60-100
- Rated Power: 3kVA / 3kW
- Nominal Battery Voltage: 24V
- Inverter Type: Pure Sine Wave
- Cooling: Forced air cooling with variable-speed fan
Inverter Mode
- Rated Output Voltage: 230Vac ±5%
- Output Frequency: 50Hz ±0.3Hz / 60Hz ±0.3Hz
- Efficiency: >92%
- Peak Power: 6,000W
- Overload Protection:
- 102% < Load < 125%: Shutdown after 5 minutes
- 125% < Load < 150%: Shutdown after 10 seconds
- Load >150%: Shutdown after 5 seconds
- Output Short Circuit Protection: Circuit breaker
AC Mode
- Rated Input Voltage: 220/230Vac
- Input Voltage Range: (170Vac~280Vac) ±2% / (90Vac-280Vac) ±2%
- Input Frequency: 50Hz / 60Hz (Auto Detection)
- Bypass Mode Efficiency: >95%
- Bypass Overload Current: 30A
- AC Reverse Protection: Available
- Conversion Time (Bypass to Inverter): 10ms (typical)
MPPT Solar Charge Controller
- Maximum PV Open Circuit Voltage (Voc): 100Vdc
- MPPT Operating Voltage Range: 30V – 95Vdc
- PV Input Voltage Range: 30V – 100Vdc
- Maximum PV Input Power: 1400W
- Maximum PV Input Current: 60A
- MPPT Efficiency: 99.9%
- PV Charging Short Circuit Protection: Blown fuse
- Reverse Polarity Protection: Available
Battery & Charging
- Battery Voltage Range: 18V – 33Vdc
- Battery Type Compatibility: Lead-acid and Lithium
- Maximum AC Charge Current: 60A
- Charge Current Accuracy: ±5A
- Overcharge Protection: Circuit breaker and blown fuse
- Lithium Battery Activation: Supported via both PV and Mains
Design & Connectivity
- User Interface: LCD Display + LED Indicators + Touch Buttons
- Communication Interfaces: USB, RS485 (Supports Bluetooth, WiFi, GPRS), CAN
- Dry Node Control: Available
- Dimensions (L × W × D): 378mm × 280mm × 103mm
- Net Weight: 6.2kg
Environmental & Safety
- Operating Temperature Range: -15°C to 55°C
- Storage Temperature Range: -25°C to 60°C
- Humidity Range: 5% to 95% (Conformal coating protection)
- Noise Level: ≤60dB
- Protection Features:
- Overload Protection
- Short Circuit Protection
- Over-Voltage/Under-Voltage Protection
- Battery Reverse Polarity Protection
- Intelligent Power Saving Mode
Certification
- Safety Standard: CE (EN62109-1)
- EMC Compliance: EN61000
SKU: n/a -
Inverters
Victron Energy Inverter 800VA 12V; Pure Sinewave Inverter, NEMA GFCI, Metal Casing
Victron Energy Inverter, 800VA 12V
- This Victron Energy Inverter allows you to power domestic equipment requiring 120VAC or 230VAC, using leisure or automotive batteries rated at 12-Volt DC
- The pure sine wave output delivers 800-watt Continuous power, 1500-watt peak power with high efficiency, 1-watt draw in zero-load power ECO mode
- This inverter can be operated and monitored with computers, tablets and smartphones because of the VE. Direct communication port. Cables and dongles are sold separately
- High start-up power is used to start loads such as power converters for LED lamps or electric tools. In ECO mode, the inverter will switch to standby when the load decreases
- Employing the hybrid HF technology, the result is a top-quality product with compact dimensions, light in weight and is capable of supplying power, problem-free, to any load
SKU: n/a -
Hybrid Inverters, Inverter-Chargers, Inverters, TBB Solar Inverters
TBB RiiO Sun II 2kVA 24V All-in-One Solar Inverter; Built-in MPPT Charge Controller (3.6kWp/150Voc), Battery Charger, Pure Sine Wave Output, Transformer-Based Design.
-17%Hybrid Inverters, Inverter-Chargers, Inverters, TBB Solar InvertersTBB RiiO Sun II 2kVA 24V All-in-One Solar Inverter; Built-in MPPT Charge Controller (3.6kWp/150Voc), Battery Charger, Pure Sine Wave Output, Transformer-Based Design.
TBB RiiO Sun II 2kVA 24V All-in-One Solar Inverter
General Specifications:
- Nominal Battery Voltage: 24V
- Continuous Output Power: 2,000 VA (2kVA)
- Maximum Output Power: 2,000 W
- Peak Power: 6,000 W
- Surge Capacity: 300%
- AC Output Voltage: 220/230/240V ± 2%
- AC Output Frequency: 50/60 Hz ± 0.1%
- Harmonic Distortion: <2%
- Load Power Factor: 1.0
MPPT Solar Charge Controller:
- Maximum PV Open Circuit Voltage (Voc): 150V
- MPPT Voltage Range: 40–145V
- Maximum PV Input Current: 36A
- Maximum PV Short Circuit Current: 40A
- Maximum PV Input Power: 3,600 W
- MPPT Efficiency: 98%
Charger:
- Charge Voltage: Absorption: 28.8V, Float: 27.6V
- Battery Compatibility: AGM, GEL, OPzV, Lead-Carbon, Li-ion, Flooded, Traction, Lithium
- Maximum AC Charge Current: 80A
- Temperature Compensation: Yes
Additional Features:
- Protection: Short circuit, overload, high/low battery voltage, high temperature, input voltage out of range, fan block.
- Transfer Time: 2ms (<15ms in weak AC source mode).
- Efficiency: 91% inverter efficiency.
Design and Usability:
- Cooling: Forced fan
- Protection Index: IP21
- Dimensions: 499 x 272 x 144 mm
- Net Weight: 18 kg
- Operating Temperature: -20°C to 65°C
- Relative Humidity: 95% (non-condensing)
SKU: n/a -
Inverter-Chargers, Inverters, Victron Quattro Inverter/Chargers
Victron Quattro 48/5000/70-100/100 Inverter Charger; 48V 5kVA Inverter, 4kW @ 25 °C, Two AC inputs/outputs, Split phase
-14%Inverter-Chargers, Inverters, Victron Quattro Inverter/ChargersVictron Quattro 48/5000/70-100/100 Inverter Charger; 48V 5kVA Inverter, 4kW @ 25 °C, Two AC inputs/outputs, Split phase

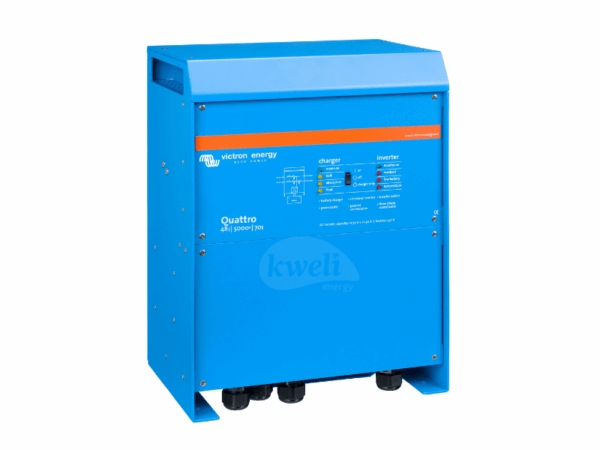

Victron Quattro 48/5000/70-100/100 Inverter Charger
- Two AC Inputs with Integrated Transfer Switch: This can be connected to two independent AC sources (e.g., a public grid and a generator) and will automatically connect to the active source.
- Two AC outputs:
- The main output has no-break functionality, ensuring an uninterrupted power supply to connected loads.
- The second output is active only when AC is available, useful for non-critical loads.
- Split Phase and Three Phase Capabilities:
- Can be configured for split-phase AC output.
- Can be connected in a three-phase configuration, with up to 4 sets of three 15 kVA units for extensive power requirements.
- PowerControl and PowerAssist Features:
- PowerControl manages limited generator or grid power.
- PowerAssist boosts power by supplementing it with battery power during peak loads.
- Solar Integration: Can be used in off-grid or grid-connected PV systems, providing AC power even during a grid failure.
- Remote Monitoring and Control: Supports various monitoring and control options via smartphone, tablet, laptop, or the VRM online portal.
Specifications:
- Battery Voltage: 48 V
- Continuous Output Power:
- At 25 °C: 5,000 VA / 4,000 W
- At 40 °C: 3,700 W
- At 65 °C: 3,000 W
- Peak Power: 10,000 W
- Maximum Continuous Output Current: 19 A
- Efficiency: Up to 94%
- Charger Output:
- Charge Voltage Absorption: 57.6 V
- Charge Voltage Float: 55.2 V
- Storage Mode: 52.8 V
- Charge Current: 70 A
- Dimensions: 470 x 350 x 280 mm
- Weight: 30 kg
- Operating Temperature: -20 to +60 ˚C
- Protection: Includes protection features such as short circuit, overload, high/low battery voltage, and high-temperature protection.
SKU: n/a
