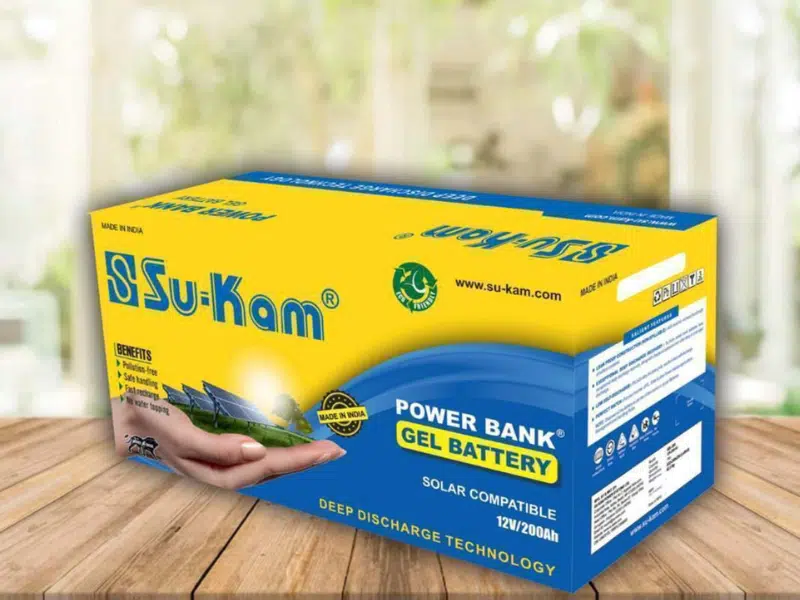

Su-Kam 200Ah 12V Gel Deep-Cycle Battery; AGM Separator Design, PbCaSn Alloy Grids, Long Life up to 10 Years, Maintenance-Free Power Backup

Su-Kam 200Ah 12V Gel Deep-Cycle Battery

• High Energy Capacity: 200Ah, 12V deep-cycle design providing up to 2.4kWh of reliable stored energy for extended backup.
• Long Service Life: Designed to deliver dependable performance for up to 10 years at 25°C.
• Maintenance-Free Operation: Fully sealed Gel/AGM VRLA technology—no topping up or water refilling required.
• Efficient Power Delivery: Consistent voltage and high charge efficiency for solar and inverter systems.
• AGM Separator Advantage: Absorbent Glass Mat separator improves cycle life and prevents micro short circuits.
• Safe & Spill-Proof: Smart exhaust valve and sealed casing allow safe installation in any orientation.
• PbCaSn Alloy Grids: Reduce self-discharge and gassing, ensuring higher efficiency and stability.
• Wide Operating Range: Performs reliably in both high and low temperatures (–20°C to +50°C).
• Versatile Applications: Ideal for solar, inverter, telecom, and industrial backup systems.

Su-Kam 200Ah 12V Gel Deep-Cycle Battery

General Specifications

• Brand: Su-Kam
• Model: SPB200
• Type: Sealed Maintenance-Free (SMF) Gel / AGM Deep-Cycle Battery
• Nominal Voltage: 12V
• Rated Capacity: 200Ah @ 20-hour rate
• Energy Capacity: 2.4kWh
• Design Life: Up to 10 years at 25°C
• Technology: Gel electrolyte with AGM separator
• Plate Alloy: PbCaSn (Lead-Calcium-Tin) alloy

Electrical Characteristics

• Cycle Life: >1500 cycles @ 50% Depth of Discharge
• Float Charge Voltage: 13.6V – 13.8V
• Cycle Use Charge Voltage: 14.4V – 15.0V
• Self-Discharge Rate: <3% per month @ 25°C
• Internal Resistance: ≤5.0 mΩ (fully charged state)
• Operating Temperature Range: –20°C to +50°C
• Charge Efficiency: High, with rapid recovery after deep discharge

Mechanical Data

• Casing Type: Sealed, non-spill ABS enclosure
• Dimensions (L×W×H): 580 × 177 × 240 mm
• Weight: 56.5 kg (approx.)
• Terminal Type: Heavy-duty bolt-on terminals
• Orientation: Can be installed in multiple positions

Safety & Protection

• Design: Smart exhaust valve for controlled gas release
• Protection: Sealed spill-proof construction
• Corrosion Resistance: PbCaSn grid alloy for minimal gassing
• Maintenance: Fully maintenance-free operation
• Environmental Compliance: Low gas emission, recyclable materials

Applications

• Off-grid and hybrid solar systems
• Inverter and UPS backup power
• Telecom base stations
• Industrial and office backup systems
• Rural electrification projects
