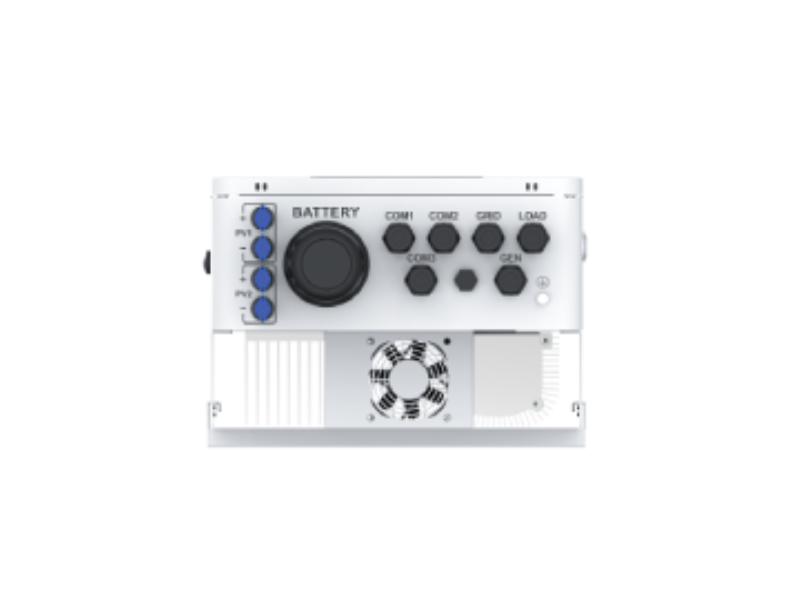

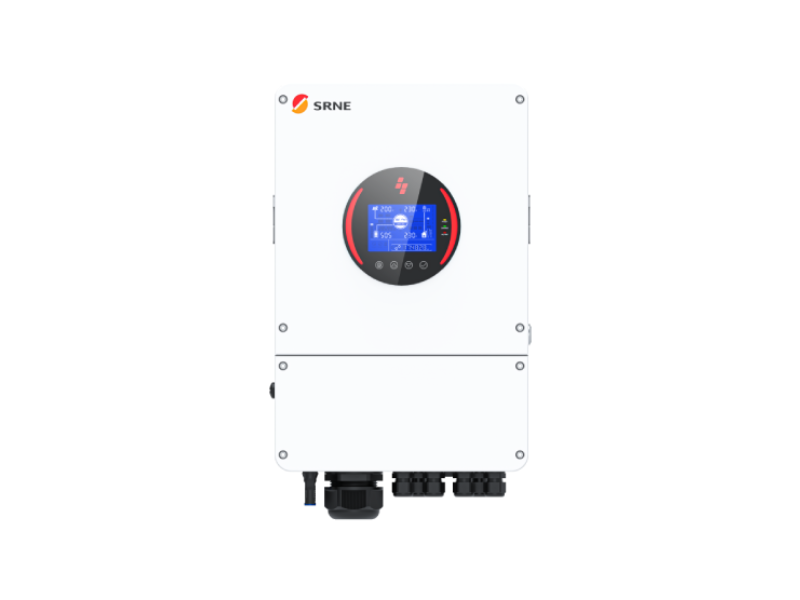

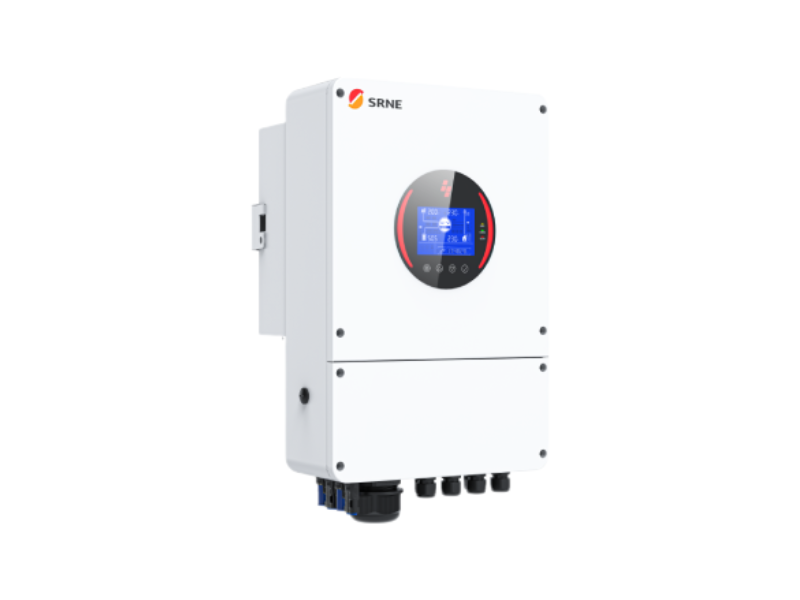

SRNE 6kW 48V Single-Phase Off-Grid Solar Inverter AEP4860S135-H; 12kW PV Input (6kW × 2), 500V Voc, 65–450V MPPT Range, 22A × 2 PV Input, Dual MPPT, 135A Solar Charging, IP65

• Rated output: 6000W
• Nominal battery voltage: 48V
• Phase: Single-phase
• Waveform: Pure sine wave
• Maximum PV input power: 12000W (6000W + 6000W)
• Maximum PV open-circuit voltage: 500V per MPPT
• MPPT operating voltage range: 65–450V
• Maximum PV input current: 22A + 22A
• MPPT trackers: 2
• Maximum solar charging current: 135A

SRNE 6kW 48V Single-Phase Off-Grid Solar Inverter AEP4860S135-H integrates solar PV charging, battery power conversion and AC supply management. The model-specific ratings below must be observed when sizing the solar array and battery bank.

General Specifications

• Rated output: 6000W
• Nominal battery voltage: 48V
• Phase: Single-phase
• Waveform: Pure sine wave

Solar PV Input

• Maximum PV input power: 12000W (6000W + 6000W)
• Maximum PV open-circuit voltage: 500V per MPPT
• MPPT operating voltage range: 65–450V
• Maximum PV input current: 22A + 22A
• MPPT trackers: 2

Battery & Charging

• Maximum solar charging current: 135A
• Maximum grid/generator charging current: 135A

AC Input & Output

• Nominal AC output: 230Vac

Key Functions

• IP65 protection
• 1–6 units parallel supported
• Optional Wi-Fi

Confirm actual PV array cold-weather Voc, PV power, MPPT operating voltage and input current, and ensure compatible battery voltage, battery current capacity, AC wiring and protective devices. Match the manufacturer datasheet to the supplied model revision.
