SRNE 5kW/5.12kWh Lithium All-in-One Backup Power System EOT05S; Charge by Grid, Generator & Solar up to 5500Wp

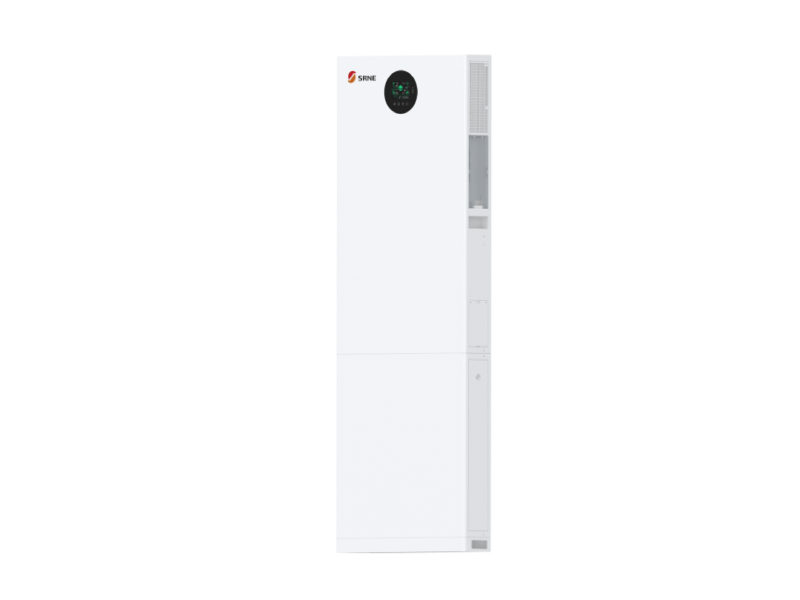

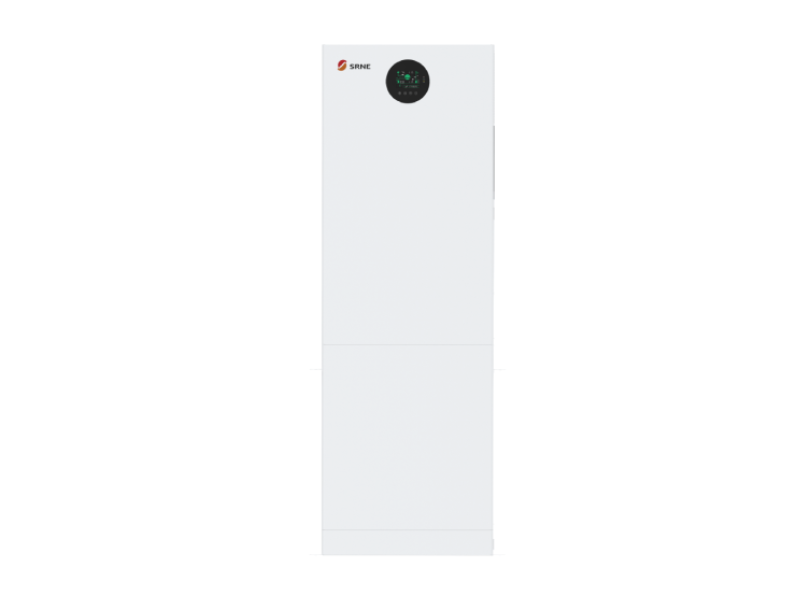

SRNE 5kW/5.12kWh Lithium All-in-One Backup Power System EOT05S

• 5kW all-in-one backup power system
• Built-in 5.12kWh lithium battery
• Combines inverter, battery and MPPT solar charger in one unit
• Charge by grid, generator or solar panels
• Supports solar charging up to 5500Wp
• 100A MPPT solar charging
• Pure sine wave output for sensitive electronics
• Compact integrated design for cleaner installation
• Suitable for homes, offices, shops and small businesses
• Solar-ready system - solar panels are not included

SRNE 5kW/5.12kWh Lithium All-in-One Backup Power System EOT05S

The SRNE 5kW/5.12kWh Lithium All-in-One Backup Power System EOT05S is a compact power backup solution for homes, offices, shops and small businesses that need reliable electricity during power outages.

It combines a 5kW inverter, 5.12kWh lithium battery and MPPT solar charger in one integrated unit. You can charge it from the grid, a compatible generator, or connect compatible solar panels up to 5500Wp for solar charging.

This makes it a practical alternative to buying a separate inverter and battery setup. It is suitable for essential loads such as lights, TVs, fridges, routers, CCTV, computers, office equipment and other moderate appliances within the system’s capacity.

Solar panels are not included. This is a solar-ready backup power system that can be connected to compatible solar panels when required.

Best For

The SRNE EOT05S is best for customers who want a clean, compact backup power system without buying a separate inverter and battery. It is ideal for homes, offices, shops, clinics, small businesses and essential backup loads such as lights, TV, fridge, router, CCTV, laptops, computers and office equipment.

System Overview

• Brand: SRNE
• Model: EOT05S / SR-EOT05S
• Product type: All-in-one backup power system
• Rated output power: 5kW / 5000W
• Battery capacity: 5.12kWh
• Battery type: Lithium battery
• Battery chemistry: LiFePO₄ / Lithium Iron Phosphate
• System design: Integrated inverter, lithium battery and MPPT solar charger
• Solar panels included: No

Inverter Output

• Rated output power: 5000W
• Peak power: Up to 10,000VA
• Output waveform: Pure sine wave
• Output type: Single phase
• Output voltage class: 220V/230V AC
• Suitable loads: Lights, TV, fridge, router, CCTV, computers, office equipment and selected appliances within system limits

Battery

• Battery capacity: 5.12kWh
• Rated battery capacity: 100Ah
• Nominal battery voltage: 51.2V
• Battery chemistry: LiFePO₄ lithium
• Built-in lithium battery protection system
• Long cycle-life design
• Battery expansion: Confirm compatible expansion options before installation

Charging Options

• Grid charging: Supported
• Generator charging: Supported, subject to generator compatibility
• Solar charging: Supported
• Maximum solar PV input: Up to 5500Wp
• Solar charge controller type: MPPT
• Maximum solar charge current: 100A

Monitoring & Installation

• Installation style: All-in-one integrated unit
• WiFi/app monitoring: Optional, depending on supplied accessories or compatible monitoring module
• Recommended installation: Qualified solar technician installation
• Application: Home backup, office backup, shop backup, small business backup and solar-ready power storage

• This unit does not include solar panels.
• It can be charged by grid, compatible generator, or solar panels up to 5500Wp.
• The 5kW output should be matched to the appliances you want to run.
• The 5.12kWh battery capacity determines backup time, depending on your load.
• Heavy appliances such as kettles, irons, heaters, electric cookers, large pumps and large motors can drain the battery quickly or exceed system limits.
• Solar panels, cables, breakers, earthing and protection devices should be sized by a qualified technician.
• Confirm whether the WiFi monitoring accessory is included before advertising it as WiFi-enabled.
