Description

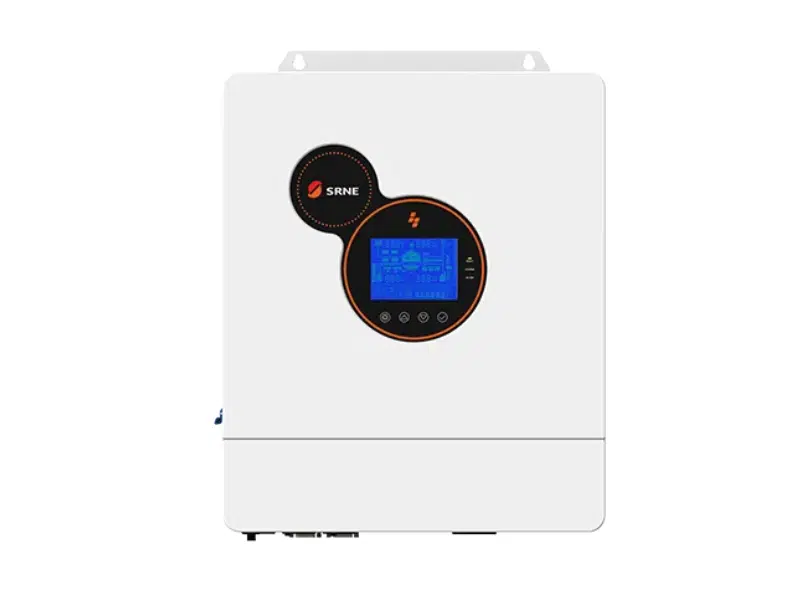

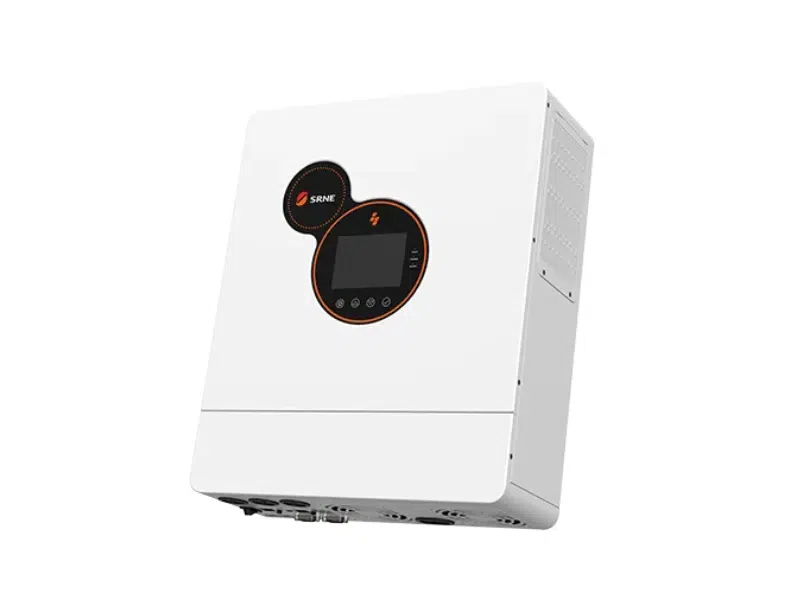

SRNE 5kVA/5kW 48V Hybrid Inverter HYP4850S100-H
- Rated Power: 5kVA / 5kW
- Maximum Power: 10,000VA
- Nominal Battery Voltage: 48V
- Battery Voltage Range: 40-60VDC
- Parallel Capacity: Up to 6 units (for single-phase or three-phase configuration)
- Cooling Method: Intelligent fan cooling
- Protection Degree: IP20 (Indoor use only)
- Weight: 13 kg
- Dimensions: 446.9 x 350 x 133 mm
Inverter Output
- Rated Output Voltage: 230Vac (L/N/PE, Single-Phase)
- AC Frequency: 50/60Hz
- Waveform: Pure sine wave
- Switch Time: 10ms (typical)
- Load Motor Capacity: 4HP
- Maximum Efficiency: 92%
MPPT Solar Charge Controller
- Maximum PV Input Power: 5,500W
- Number of MPPTs: 1
- MPPT Efficiency: 99.9%
- Maximum PV Open Circuit Voltage (Voc): 500VDC
- MPPT Voltage Range: 120-450VDC
- Maximum PV Input Current: 22A
Battery Charger
- Maximum Solar Charging Current: 100A
- Maximum AC Charging Current: 60A
- Maximum Hybrid Charging Current: 100A
- Battery Type Compatibility: Li-ion / Lead-acid / User-defined
Grid/Generator Input
- Input Voltage Range: 90-280VDC
- Input Frequency Range: 50/60Hz
- Bypass Overload Current: 40A
Advanced Features
- Supports operation without batteries
- Parallel operation up to 6 units for increased capacity and three-phase configuration
- Wi-Fi/GPRS remote monitoring (optional external module)
- Time-slot function for energy cost optimization
- Transformerless topology for improved efficiency and lightweight design
- BMS communication support for lithium battery integration
- Aesthetic and compact industrial design for easy installation
Safety & Protection
- PV overvoltage and current limiting protection
- Battery overvoltage and undervoltage protection
- AC output overload and short circuit protection
- Heat sink over-temperature protection
- Reverse polarity protection for PV and battery
- Parallel connection error protection
- Synchronization signal protection in parallel mode
Certifications
- EN61000 / FCC Part15 ClassB / IEC 62109 / IEC 62477 / IEC 62040 / UKCA / PSE
