SRNE 5.12kWh 51.2V Lithium Battery SE05B; LiFePO₄, 100Ah, 80% DoD, 6000 Cycles, Built-in BMS, Parallel up to 16 Units

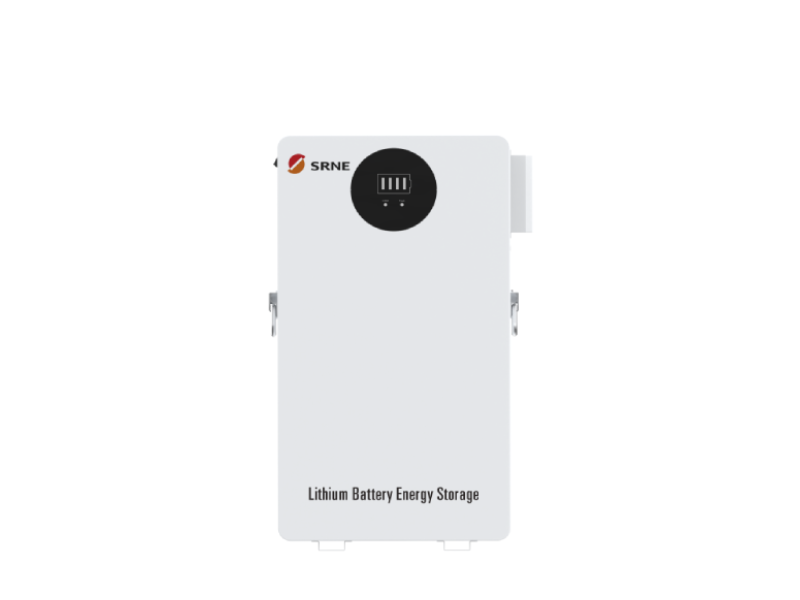

SRNE 5.12kWh 51.2V Lithium Battery SE05B

• 5.12kWh lithium battery for solar and backup power storage
• 51.2V battery system for compatible 48V hybrid and off-grid inverters
• 100Ah rated capacity for home, office and small business backup
• LiFePO₄ / LFP battery chemistry for safe, long-life energy storage
• 6000-cycle design at 80% depth of discharge
• Built-in intelligent BMS for battery management and protection
• 50A standard charge and discharge current
• Up to 100A maximum charge and discharge current
• CAN/RS485/USB communication plus WiFi/Bluetooth monitoring support
• Supports parallel expansion up to 16 units

SRNE 5.12kWh 51.2V Lithium Battery SE05B

The SRNE SE05B 5.12kWh 51.2V Wall Lithium Battery is a compact lithium energy storage battery for solar backup, inverter systems, homes, offices, shops and small businesses.

With 5.12kWh battery energy, 100Ah rated capacity and 51.2V nominal voltage, it is designed for compatible 48V hybrid and off-grid inverter systems. Its LiFePO₄ lithium battery chemistry provides long cycle life, stable performance and better usable capacity than traditional lead-acid battery banks.

The SE05B supports CAN/RS485/USB communication, WiFi/Bluetooth monitoring, and parallel expansion up to 16 units, making it suitable for both single-battery backup systems and expandable solar storage installations.

Best For

The SRNE SE05B is best for homes, offices, shops, clinics, small businesses and solar backup systems that need a compact 5.12kWh lithium battery. It is suitable for essential loads such as lights, TVs, fridges, routers, CCTV, computers, office equipment and other appliances when connected to a properly sized inverter system.

Battery Overview

• Brand: SRNE
• Model: SE05B / SR-SE05B
• Product type: Wall-mount lithium energy storage battery
• Rated voltage: 51.2V
• Rated capacity: 100Ah
• Battery energy: 5.12kWh
• Battery type: Lithium battery
• Battery chemistry: LiFePO₄ / LFP
• Cycle life: 6000 cycles at 80% DoD
• Maximum parallel capacity: Up to 16 units

Charge & Discharge

• Maximum charging voltage: 57.6V
• Over-discharge voltage: 44.8V
• Standard charge current: 50A
• Standard discharge current: 50A
• Maximum charge current: 100A
• Maximum discharge current: 100A
• Peak charge/discharge current: 120A for 3 seconds

Communication & Monitoring

• Communication: CAN / RS485 / USB
• BMS communication: Supported, subject to inverter compatibility
• WiFi monitoring: Supported
• Bluetooth monitoring: Supported
• App monitoring: Supported

Installation & Physical Details

• Installation type: Wall mount/floor mount
• Weight: 44kg
• Dimensions: 646 × 396 × 150mm
• Cooling method: Natural cooling
• Protection degree: IP30
• Charging temperature range: 0°C to 45°C
• Discharging temperature range: -10°C to 45°C
• Storage condition: 6 months at 25°C, 3 months at 35°C, 1 month at 45°C

Standards

• Transportation: UN38.3, MSDS
• Safety: IEC 62619:2017, EN IEC 61000-6

The SRNE SE05B is designed for 48V-class inverter systems that support 51.2V lithium batteries. It can work with compatible hybrid and off-grid inverters, subject to correct battery voltage settings, charge/discharge current limits and communication protocol support.

For lithium communication, confirm that your inverter supports the battery’s CAN/RS485 protocol. Where direct communication is not available, some inverters may still allow configuration using user-defined lithium battery settings.

This battery is suitable for compatible SRNE inverters and other inverter brands that support 51.2V LiFePO₄ battery banks.

• This is a battery only. It does not include an inverter or solar panels.
• Confirm that your inverter supports 51.2V / 48V-class lithium batteries.
• For lithium communication, confirm CAN/RS485 compatibility with your inverter brand and model.
• Battery backup time depends on your connected appliances and total power consumption.
• For longer backup, the battery can be expanded in parallel up to 16 compatible units.
• The IP30 protection rating means it should be installed indoors or in a protected equipment area.
• Installation should include correct battery cables, breakers, protection devices, earthing and inverter battery settings.
• Use a qualified solar technician for installation and configuration.
