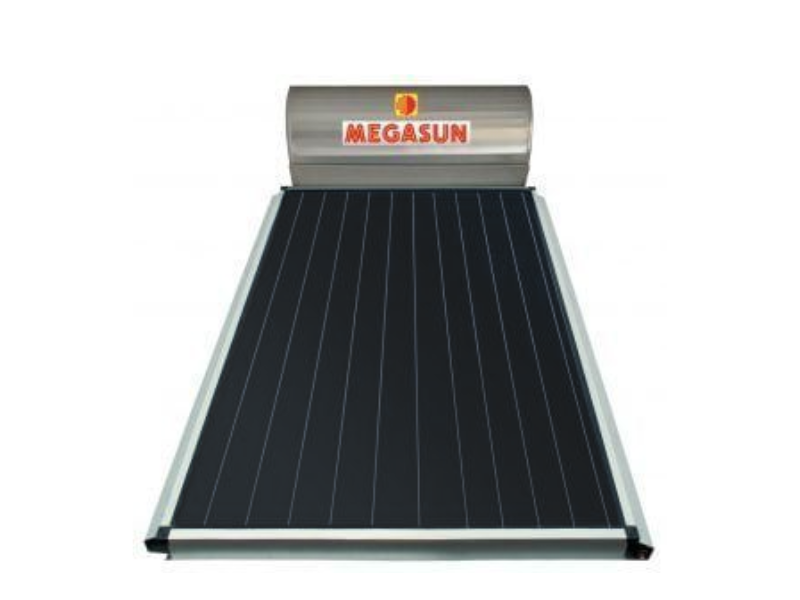

MEGASUN 200L Direct Flat Plate Solar Water Heater SP200 KK × 2.62 m²; 195L Nominal Tank, 2.33 m² Collector Aperture, Thermosiphon System

MEGASUN 200L Direct Flat Plate Solar Water Heater SP200 KK × 2.62 m²

• Model: SP200 KK × 2.62 m²
• System type: Direct thermosiphon solar water heater
• Nominal storage volume: 195L
• Collector configuration: 2.62 m²
• Collector aperture area: 2.33 m²
• Water-heating energy efficiency: 171% in average climate
• Annual electricity consumption: 600kWh in average climate
• Water-heating energy efficiency class: A in average climate
• Heat-loss coefficients: a₁ 4.88W/(K·m²), a₂ 0.013W/(K²·m²)
• Sound power level: 15dB(A)

The MEGASUN SP200 KK × 2.62 m² is a 200L-class direct thermosiphon flat-plate solar water heater for residential and light-commercial hot-water applications. The certified system uses a 195L nominal storage tank and a 2.62 m² collector configuration with 2.33 m² collector aperture area.

Best For

Medium-size households and light-commercial applications requiring a higher-capacity direct solar hot-water system.

• Model: SP200 KK × 2.62 m²
• System configuration: Direct thermosiphon
• Declared load profile: L
• Nominal storage volume: 195L
• Collector configuration: 2.62 m²
• Collector aperture area: 2.33 m²
• Water-heating energy efficiency, average climate: 171%
• Water-heating energy efficiency class, average climate: A
• Water-heating energy efficiency, colder climate: 134%
• Water-heating energy efficiency, warmer climate: 294%
• Annual electricity consumption, average climate: 600kWh
• Annual electricity consumption, colder climate: 762kWh
• Annual electricity consumption, warmer climate: 348kWh
• Zero-loss collector efficiency η₀: 0.730
• First-order heat-loss coefficient a₁: 4.88W/(K·m²)
• Second-order heat-loss coefficient a₂: 0.013W/(K²·m²)
• Incidence angle modifier: 0.89
• Pump power consumption: 0W
• Standby power consumption: 0.00W
• Sound power level: 15dB(A)

Confirm available installation area, orientation, support structure, plumbing arrangement and water pressure. The manufacturer specifies that a pressure-safety valve and electric thermostat must be fitted unless already incorporated in the appliance.
