Description

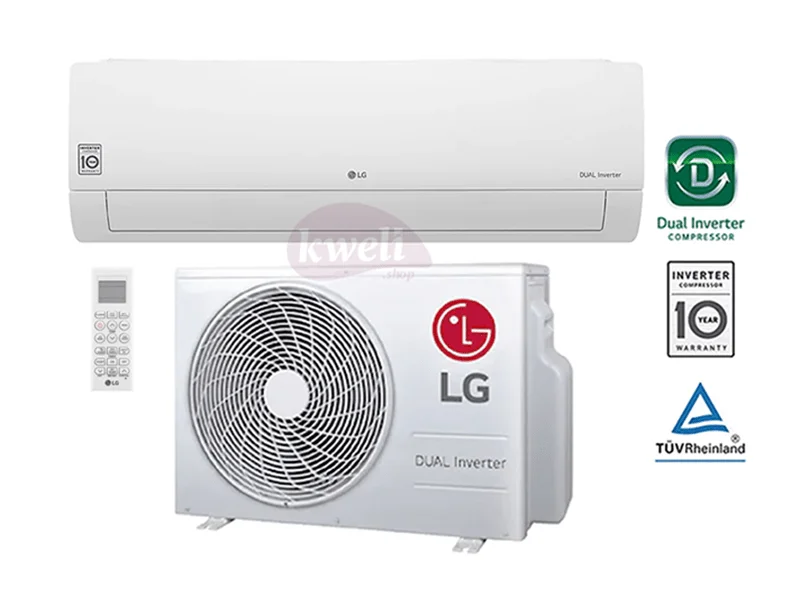

Technical Specs: LG 24000 BTU Wall Split Air Conditioner, R410a
- Cooling Capacity: 6,448 W / 22,000 Btu/h.
- Capacity Rate (Min): 3,250 Btu/h.
- Capacity Rate (Max): 24,452 Btu/h.
- Power Input (Cooling/Heating): 2,150 W
- Running Current ( Cooling/Heating): 9.7 A
- EER: 3.00 W/W 10.23 Btu/h.W
- Power Supply: 1 / 220-240V / 50Hz (Ø / V / Hz)
- Air Flow Rate(Indoor,Max): 20 (760) m2/min
- Air Flow Rate(Outdoor,Max): 42 (1483) ㎥/min
- Moisture Removal: 1.70 l/h.
- Sound Level(Indoor,H/M/L/SL): 44/ 38/ 34/ 29 dB(A)+3
- Sound Level(Outdoor,Max): 53/ 56 dB(A)+3
- Refrigerant (Type): R-410A
- Refrigerant (Charge (at 7.5 m)): 1,450 g
- Additional Refrigerant Charge: 20 g/m
- Circuit Breaker*: 25 A
- Power Supply Cable: 3*1.5 No.*mm2
- Power and Transmission Cable: 4*1.5 No.*mm2
- Piping Connections(Liquid Side): 9.52 mm
- Piping Connections(Gas Side): 15.88 mm
- Drain Hose (O.D / I.D * length): 21.5 / 16.0 (0.85 / 0.63) * 350 mm(in) * mm
- Piping Length (Standard / Max): 7.5 (24.6) / 20 (66.6) m(ft)
- Max. Elevation Difference: 7 (23.0) m(ft)
- Fan(Indoor) Type: Cross Flow Fan
- Fan(Outdoor) Type: Fan,Propeller
- Operation Range (Cooling Indoor): 16 ~ 32 (60.8 ~ 89.6) oC (oF)
- Operation Range (Cooling Outdoor): 18 ~ 48 (64.4 ~ 118.4) oC (oF)
- Dimensions(Indoor (W*H*D)): 998*330*210 mm
- Dimensions(Outdoor (W*H*D)): 870*660*360 mm
- Net Weight(Indoor): 11.6 (25.57) kg
- Net Weight(Outdoor): 42.9 (94.58) kg
