Description

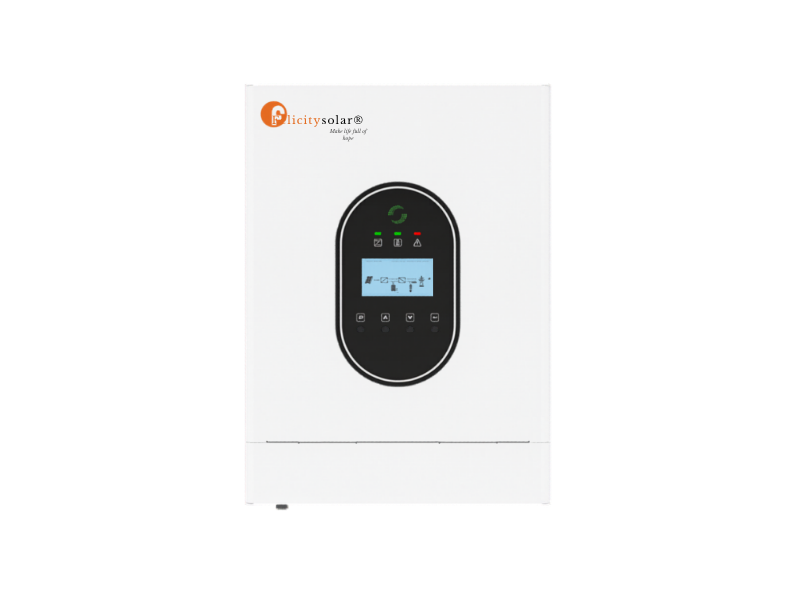

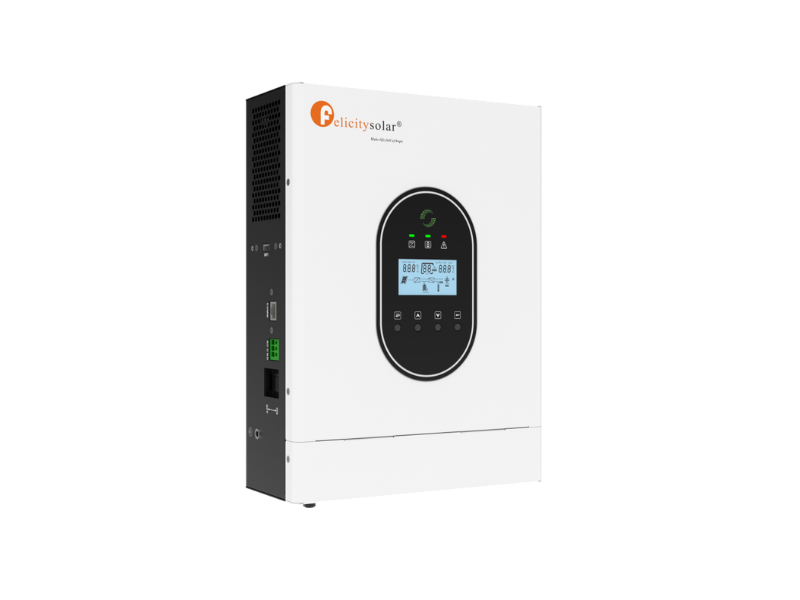

Felicity Solar 2kW/2kVA 24V Hybrid Solar Inverter IVCM2024 PRO Specifications
The Felicity Solar IVCM2024 PRO is a compact 2kW/2kVA 24V hybrid solar inverter designed for small solar and backup power systems. It combines a pure sine wave inverter, MPPT solar charge controller, and battery charger in one unit, making it suitable for homes, shops, small offices, lighting circuits, routers, TVs, computers, and other light-to-moderate loads.
Its wide 90-280Vac input range, 1800W PV input capacity, and 80A solar charging current make it practical for areas with unstable grid power or regular outages.
Technical Specifications
General Specifications
- Brand: Felicity Solar
- Model: IVCM2024 PRO
- Product Type: Hybrid Solar Inverter
- Rated Output Power: 2000VA / 2000W
- Nominal DC Input Voltage: 24V
- Output Voltage Waveform: Pure sine wave
- Nominal Output Voltage: 230Vac ±5%
- Output Frequency: 50Hz / 60Hz auto detection
- Peak Efficiency: 93%
- Phase: Single phase
- Operating Temperature: -10°C to 55°C
AC Input and Charging
- Rated AC Input Voltage: 230Vac
- AC Input Voltage Range: 90-280Vac
- Input Source: Utility grid or generator
- Configurable Input Voltage Range: Yes, via LCD setting
- Configurable Battery Charging Current: Yes, via LCD setting
- Configurable AC/Solar Charging Priority: Yes, via LCD setting
- Auto Restart: Yes, when AC power recovers
Solar Charging
- Solar Charge Controller Type: Built-in MPPT
- Maximum PV Array Open Circuit Voltage: 145Vdc
- PV Array MPPT Voltage Range: 30Vdc-120Vdc
- Maximum PV Input Power: 1800W
- Maximum Solar Charging Current: 80A
Battery Compatibility
- Nominal Battery Voltage: 24V
- Battery Support: Li-ion and lead-acid batteries
- Cold Start Voltage: 23V
- Low Battery Alarm: Supported
- High DC Input Alarm and Fault: Supported
- Overcharge Protection: Yes
Protection Features
- Overload Protection: Yes
- Over-Temperature Protection: Yes
- Output Short Circuit Protection: Yes
- High DC Input Protection: Yes
- Low Battery Protection: Yes
- Cold Start Function: Yes
Design and Installation
- Display: LCD display
- Product Dimensions: 340mm x 248mm x 107mm
- Package Dimensions: 422mm x 330mm x 181mm
- Gross Weight: 6.5kg
- Parallel Support: No
- WiFi Function: No
Compatibility
The Felicity Solar IVCM2024 PRO is suitable for 24V battery-based solar and backup power systems. It can work with compatible 24V lithium or lead-acid battery banks, solar panels, grid input, and generator input.
It is best used for small residential, shop, office, and rural electrification applications where loads are properly sized within the inverter’s 2kW capacity. For best performance, the solar array voltage, battery capacity, cable size, breaker rating, and protection devices should be selected by a qualified solar technician based on the actual site requirements.
