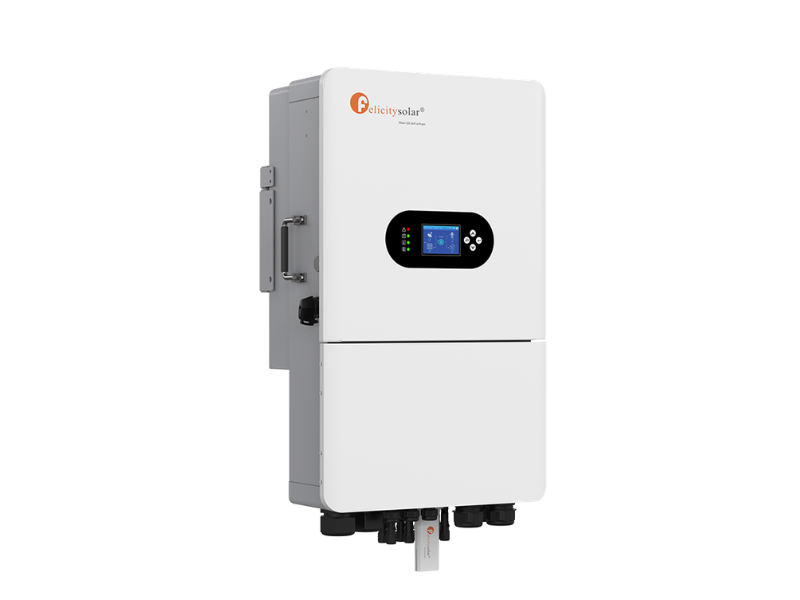

Felicity 20kW 48V 3-Phase Hybrid Solar Inverter IVGM20KLP3G1; 32kW PV, 800V Voc, 160-650V MPPT, 2 MPPT, 350A, IP65, WiFi, Gen Port

The Felicity IVGM20KLP3G1 is a 20kW 48V three-phase hybrid solar inverter for large homes, offices, schools, clinics, farms, apartments, workshops and commercial sites that need solar power, battery backup, generator integration and remote monitoring.

It supports up to 32kW PV input, 800V max PV voltage, 160V – 650V MPPT range, 2 MPPTs, and 350A battery charge/discharge current, making it a strong choice for large three-phase solar backup systems.

Specifications

General

• Brand: Felicity Solar
• Model: IVGM20KLP3G1
• Product type: Hybrid solar inverter
• Rated output power: 20kW
• Battery voltage class: 48V
• Phase type: Three phase
• Inverter type: Low-voltage hybrid inverter
• Output waveform: Pure sine wave
• Protection rating: IP65
• Display: LCD touch screen

Solar PV Input

• Maximum PV input power: 32kW
• Maximum PV input voltage: 800V
• Start-up voltage: 160V
• MPPT operating voltage range: 160V – 650V
• Rated DC input voltage: 550V
• Full-load DC voltage range: 550V – 800V
• Number of MPPTs: 2
• PV string inputs: 4 strings, arranged as 2+2
• Maximum PV input current: 36A + 36A
• Maximum PV short-circuit current: 54A + 54A

Battery

• Battery type: Lithium-ion / lead-acid
• Battery voltage range: 40V – 60V
• Battery input: 1 battery bank input interface
• Maximum charge current: 350A
• Maximum discharge current: 350A
• BMS communication: RS485 / CAN

AC Input and Output

• Rated AC active power: 20kW
• Maximum AC apparent power: 22kVA
• Rated AC voltage: 220/380V or 230/400V
• AC voltage range: -20% to +15%
• Rated AC current: 28.9A
• Maximum AC current: 31.9A
• Rated grid frequency: 50/60Hz
• Grid frequency range: 45Hz – 55Hz / 55Hz – 65Hz
• AC wiring mode: 3L + N + PE
• Peak off-grid power: 2 times rated power for 10 seconds
• Backup switching time: Less than 10ms

System Features

• Operating modes: On-grid, off-grid and UPS
• Generator support: Yes
• Smart load / generator port: Yes
• Microinverter access: Supported
• Time of Use function: Yes
• Zero export to load: Supported
• Zero export to CT: Supported
• Self-consumption and grid feed-in: Supported
• Parallel operation: Up to 10 units
• Monitoring module: WiFi / 4G
• Monitoring platform: Fsolar Smart Cloud

Protections

• DC reverse polarity protection
• AC output overcurrent protection
• AC output overvoltage protection
• AC output short-circuit protection
• Thermal protection
• Ground fault current monitoring
• Arc fault circuit interrupter
• Island protection monitoring
• Residual current detection
• Surge protection
• DC input switch
• Overload protection

Physical Details

• Product dimensions: 750 x 450 x 268mm
• Package dimensions: 889 x 566 x 397mm
• Net weight: 48.7kg
• Gross weight: 60.2kg
• Installation: Wall-mounted / fixed inverter installation
• Warranty: 5 years / 10 years, subject to Felicity Solar warranty terms

Best For

The Felicity IVGM20KLP3G1 is best for large homes, apartments, offices, schools, clinics, farms, workshops, commercial buildings and three-phase backup systems that need a powerful hybrid inverter with solar input, lithium battery storage, generator support and remote monitoring.

What to Consider Before Buying the Felicity 20kW 48V 3-Phase Hybrid Solar Inverter IVGM20KLP3G1

• Confirm that your site is three phase and that a 20kW inverter is suitable for your actual load, including pumps, motors, fridges, air conditioners and other heavy equipment.
• Pair it with compatible 48V lithium batteries that can safely support up to 350A charge/discharge current.
• Size the solar array within the 32kW PV input limit, 800V max PV voltage, 160V – 650V MPPT range and PV current limits.
• Plan for professional installation, including AC/DC breakers, surge protection, earthing, battery protection, generator integration and correct inverter configuration.
