Felicity 200Ah 24V 5kWh Lithium Solar Battery FLA24200; Built-in BMS & WiFi, ≥6,000 Cycles, @25°C, 80% DoD, Parallel up to 75kWh or 15 units

Description

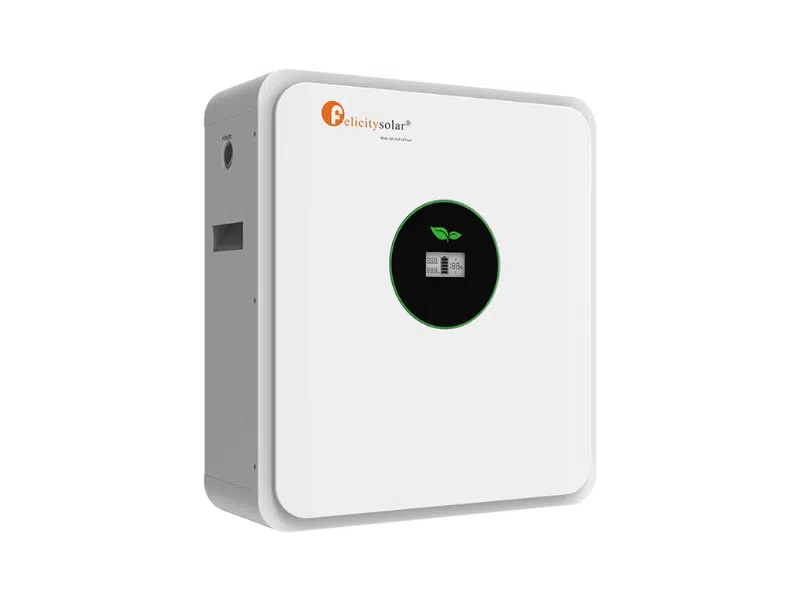

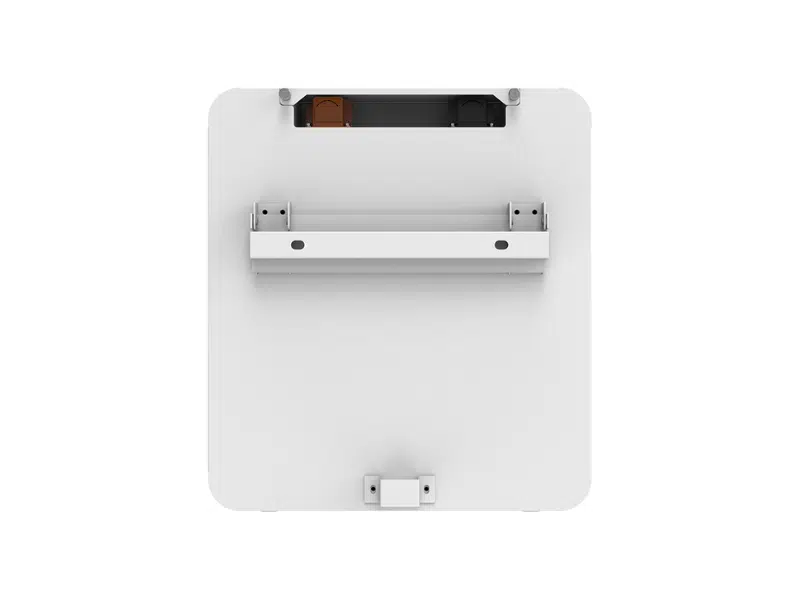

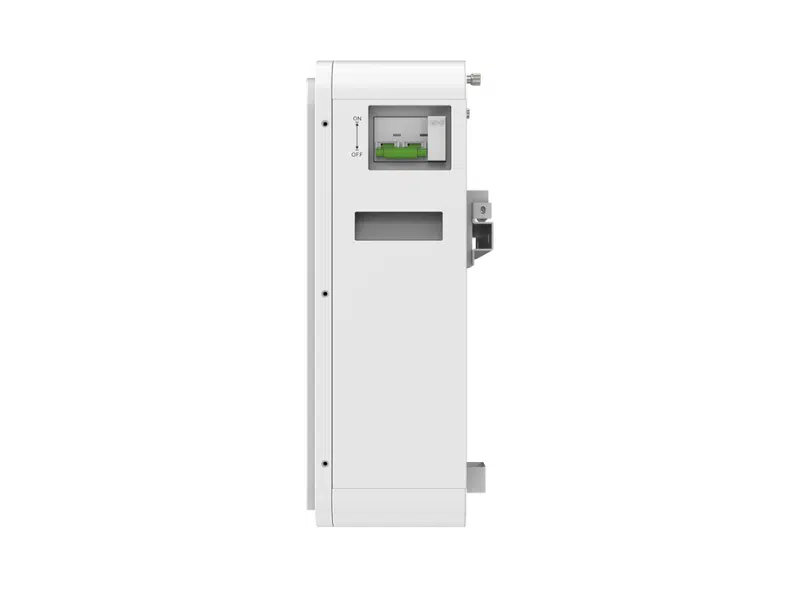

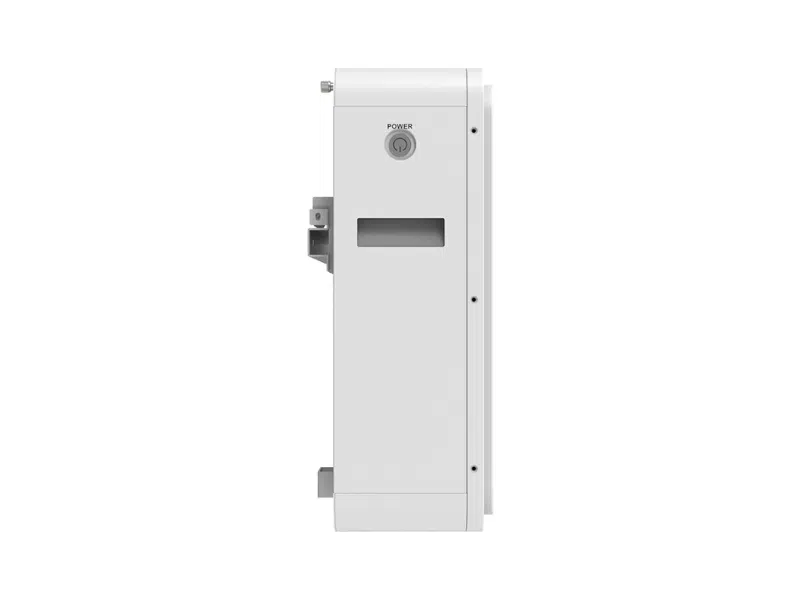

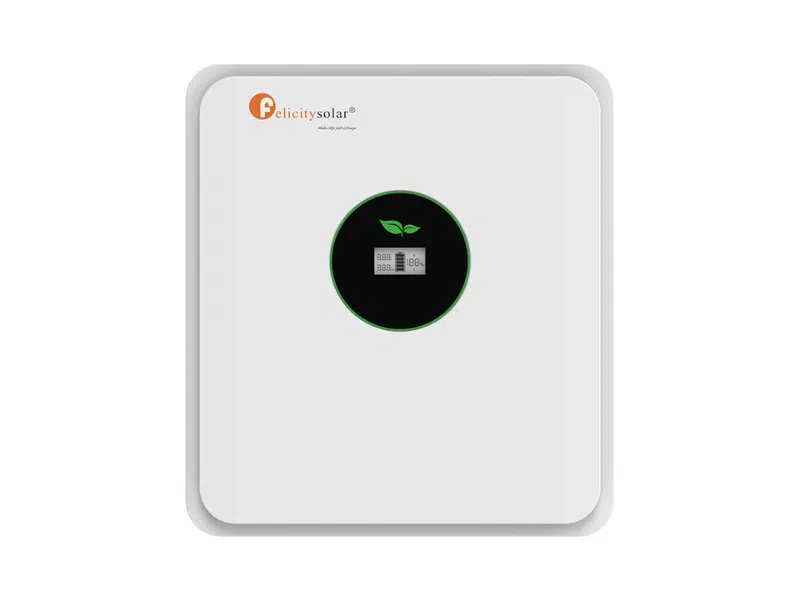

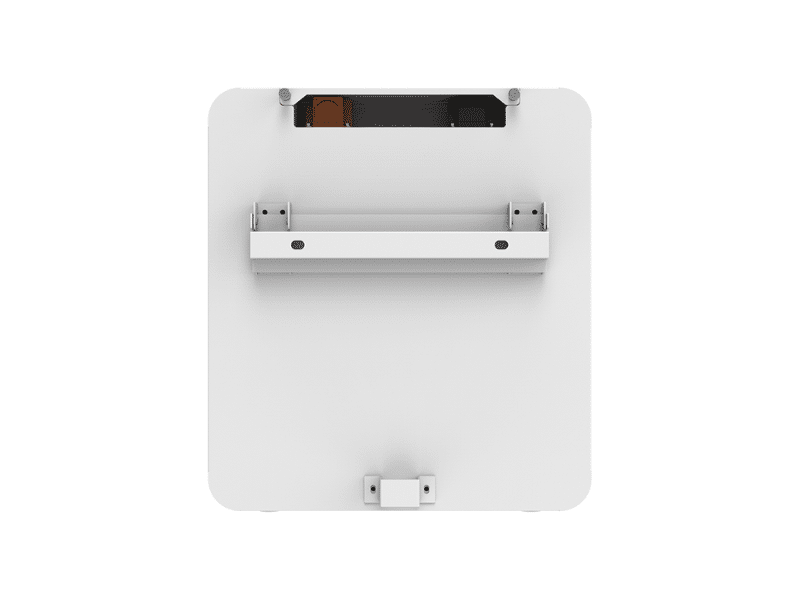

Felicity 200AH 24V 5kWh Lithium Solar Battery FLA24200

Core Specifications

• Model: FLA24200
• Battery Type: LiFePO₄ (Lithium Iron Phosphate)
• Usable Capacity: 5 kWh
• Nominal Voltage: 25.6 V (for 24 V systems)
• Voltage Range: 22.4 V – 28.8 V

Performance

• Recommended Charge/Discharge Current: ≤ 120 A
• Recommended Power: ≤ 3,000 W
• Maximum 15-second Current: 150 A (3,750 W peak)
• Depth of Discharge (DoD): ≥ 95%
• Cycle Life: ≥ 6,000 cycles at 80% DoD

Integration & Protection

• Parallel Expansion: Up to 15 units (75 kWh total)
• Communication: CAN & RS-485
• Protection Features: Built-in BMS, breaker, fuse
• Ingress Rating: IP21
• Display: LCD + LED

Physical Details

• Dimensions: ~482 × 433 × 194 mm
• Weight: ~39 kg (net), ~44 kg (gross)
• Installation: Wall-mounted or floor-mounted
• Operating Temperature:
  • Charging: 0 °C to +55 °C
  • Discharging: –20 °C to +55 °C

Warranty

• 7 years
