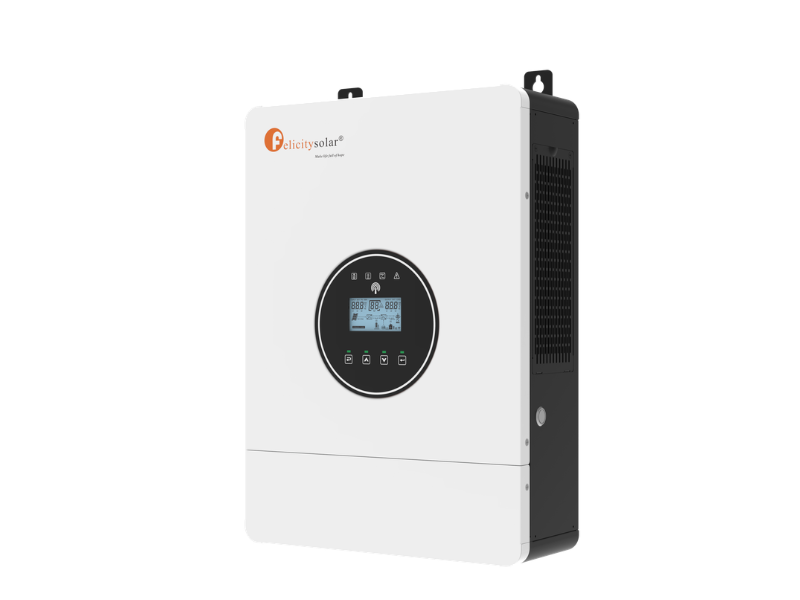

Felicity 12kVA/12kW 48V Single-Phase Off-Grid Solar Inverter IVEM12048-II; 15kW PV Input (7.5kW × 2), 500V Voc, 90–450V PV Range, 27A × 2 PV Input, 240A Max Combined Charging, Built-in Wi-Fi

• Rated output power: 12000VA / 12000W
• Nominal battery voltage: 48V
• Phase: Single-phase
• Output waveform: Pure sine wave
• Maximum PV input power: 15000W (7500W × 2 PV inputs)
• Maximum PV open-circuit voltage: 500V
• PV working voltage range: 90–450V
• Maximum PV input current: 27A × 2
• Number of PV inputs: 2
• Maximum combined PV + grid / generator charging current: 240A

Felicity 12kVA/12kW 48V Single-Phase Off-Grid Solar Inverter IVEM12048-II integrates solar PV charging, battery management and AC power conversion. Review the verified model-specific ratings below when sizing solar strings, battery systems and protection equipment.

General Specifications

• Rated output power: 12000VA / 12000W
• Nominal battery voltage: 48V
• Phase: Single-phase
• Output waveform: Pure sine wave

Solar PV Input

• Maximum PV input power: 15000W (7500W × 2 PV inputs)
• Maximum PV open-circuit voltage: 500V
• PV working voltage range: 90–450V
• Maximum PV input current: 27A × 2
• Number of PV inputs: 2

Battery & Charging

• Maximum combined PV + grid / generator charging current: 240A

AC Input & Output

• Nominal AC output: 230Vac
• AC input: Utility / generator

Key Functions

• Built-in Wi-Fi monitoring
• Parallel capability up to 6 units
• Battery-free operation where supported
• LCD configuration

Match the actual array cold-weather Voc, operating voltage, string current and PV wattage to these limits. Select compatible batteries, charge/discharge current capability, AC wiring, DC protection, surge protection and earthing. Confirm the exact hardware revision before commissioning.
