MPPT Charge controllers, Solar Charge Controllers
Felicity 120A 48V MPPT Solar Charge Controller SCCM12048-II; 195V/120A, up to 6600Wpv @ 48V, 3300Wpv @24V, 1650Wpv @12V

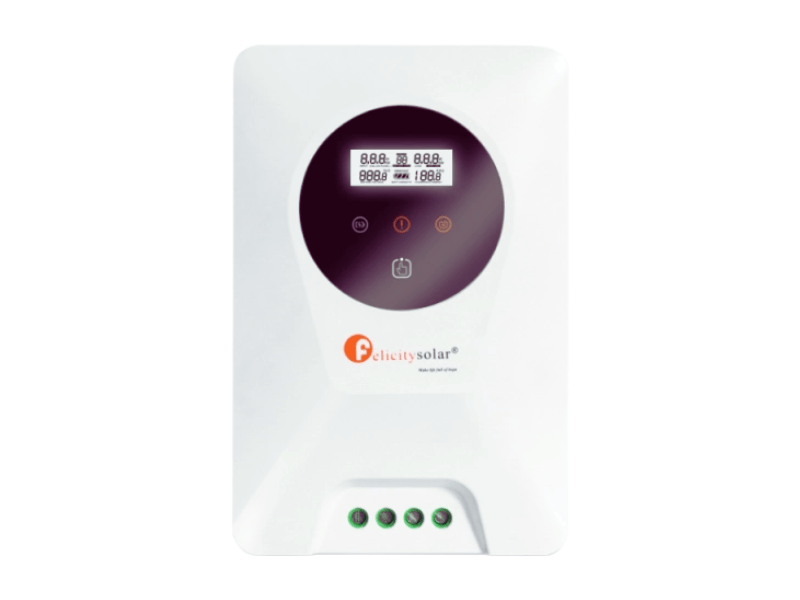

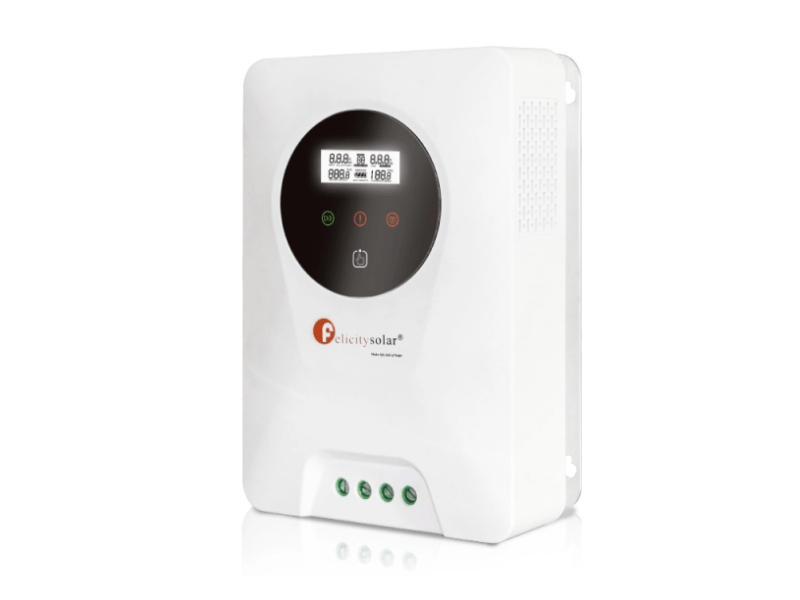

Felicity 120A 48V MPPT Solar Charge Controller SCCM12048-II
- System voltage: 12V/24V/48/(Auto detection)
- Intelligent Maximum Power Point Tracking technology increases efficiency 25%~30%
- Automatic battery voltage detection (12V/24V/48V)
- Three-stage charging optimises battery performance
- Charging Stages: bulk, absorption, floatBulk, absorption, float
- Maximum charging current up to 120A
- Max PV Input Power @12V = 1650W,
- Max PV Input Power @24V = 3300W,
- Max PV Input Power @48V = 6,600W
- PV Array MPPT Vol Range: 15V-170V/ 30-170V/ 60-170V
- Maximum efficiency up to 98%• Battery temperature sensor (BTS) automatically provides temperature compensation
- Integrated intelligent slot compatible with SNMP/MODBUS communication
- Weight:
UGX1,090,000 UGX1,390,000
Based on 0 reviews
Only logged in customers who have purchased this product may leave a review.
Related products
-
MPPT Charge controllers, Solar Charge Controllers, TBB Charge Controllers
TBB SolarMate 250V 100A MPPT Solar Charge Controller SP250/100; 48V, Bluetooth LCD Display, High Efficiency, 5880W/7500W, 250Vpv Input
-24%
MPPT Charge controllers, Solar Charge Controllers, TBB Charge ControllersTBB SolarMate 250V 100A MPPT Solar Charge Controller SP250/100; 48V, Bluetooth LCD Display, High Efficiency, 5880W/7500W, 250Vpv Input
TBB SolarMate 250V 100A MPPT Solar Charge Controller SP250/100
- Nominal Battery Voltage: 48V
- Maximum Charging Current: 100A
- Maximum Charging Power:
- 48V: 5,880W
- Maximum PV Input Power:
- 48V: 7,500W
- Maximum PV Input Voltage (Voc): 250V
- MPPT Voltage Range: 65–245V
- Max PV Short Circuit Current: 80A
- Efficiency:
- Maximum MPPT Efficiency: ≥99.9%
- Overall Efficiency: Up to 98%
- Self-Consumption: 37mA @ 48V
Charging Parameters:
- Charge Voltage (Absorption): 57.6V
- Charge Voltage (Float): 54V
- Charging Algorithm: TBB Premium II multistage
- Temperature Compensation: -3mV/°C/cell (default)
- Equalization Charging: Programmable
- Display: LED + LCD
- Communication Port: RS485, with support for auxiliary contact and T-Bus communication
- Parallel Functionality: Up to 6 units can operate in parallel for scalability
- Data Logging: 365 days of historical records, including:
- Real-time solar array voltage, battery voltage, and charging data
- Logs for PV start charging time, transfer to float, power loss, and fault time
- Cooling: Forced fan
- Operating Temperature: -25°C to 60°C (power derated above 40°C)
- Storage Temperature: -40°C to 70°C
- Humidity: 5%–95% (non-condensing)
- Altitude: Up to 3,000m (fully rated up to 2,000m)
Physical:
- Protection Category: IP21
- Dimensions (L × W × H): 352.2 × 293 × 116.2 mm
- Weight: 7.8 kg
Certifications:
- EN61000-6-1, EN61000-6-3, EN62109-1
SKU: n/a -
MPPT Charge controllers, Solar Charge Controllers, Victron Solar Charge Controllers
Victron SmartSolar Charge Controller MPPT 150/70Tr VE.Can; 150V 70A 12/24/36/48 Charge Controller with Bluetooth
-26%MPPT Charge controllers, Solar Charge Controllers, Victron Solar Charge ControllersVictron SmartSolar Charge Controller MPPT 150/70Tr VE.Can; 150V 70A 12/24/36/48 Charge Controller with Bluetooth
Victron SmartSolar Charge Controller MPPT 150/70Tr VE.Can
- Rated charge current: 70A
- Maximum PV Open Circuit Voltage: 150V
- Ultra-fast MPPT: Enhances energy harvest by up to 30% compared to PWM controllers and up to 10% compared to slower MPPT controllers, especially in varying light conditions.
- Advanced MPPT Detection: Optimises energy harvest under partial shading conditions by ensuring the controller locks onto the optimal MPP, avoiding suboptimal points.
- High Efficiency: No cooling fan is required; efficiency exceeds 98%.
- Flexible Charge Algorithm: Fully programmable with eight pre-set algorithms, offering customisation for different battery types.
- Robust Protection: Includes over-temperature, PV short circuit, reverse polarity, and current protection.
- Bluetooth Smart Built-in: Enables wireless setup, monitoring, updates, and synchronisation with other Victron devices.
- Wired Connectivity: Options for VE.Direct or VE.Can connect to other systems or monitoring devices.
- Battery Recovery Function: Capable of charging batteries discharged to zero volts and reconnecting to fully discharged Li-ion batteries with integrated disconnect functions.
- Programmable Relay: Allows for custom alarms or event-triggered actions.
- Optional LCD Display: Easily attachable to the front of the controller for on-site monitoring
SKU: n/a -
MPPT Charge controllers, Solar Charge Controllers, Victron Solar Charge Controllers
Victron SmartSolar Charge Controller MPPT 250/100Tr VE.Can; 250V 100A 12/24/36/48 Charge Controller with Bluetooth
-33%MPPT Charge controllers, Solar Charge Controllers, Victron Solar Charge ControllersVictron SmartSolar Charge Controller MPPT 250/100Tr VE.Can; 250V 100A 12/24/36/48 Charge Controller with Bluetooth
Victron SmartSolar Charge Controller MPPT 250/100Tr VE.Can
- Rated charge current: 100A
- Maximum PV Open Circuit Voltage: 250V
- Ultra-fast Maximum Power Point Tracking (MPPT): Improves energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.
- Advanced Maximum Power Point Detection in case of partial shading conditions: The innovative SmartSolar algorithm will always maximise energy harvest by locking to the optimum MPP.
- Outstanding conversion efficiency: No cooling fan. Maximum efficiency exceeds 99%.
- Flexible charge algorithm: Fully programmable charge algorithm, and eight pre-programmed algorithms, selectable with a rotary switch.
- Extensive electronic protection: over-temperature protection and power derating when the temperature is high, PV short circuit and PV reverse polarity protection, and PV reverse current protection.
- Bluetooth Smart built-in: The wireless solution to set up, monitor, update, and synchronise SmartSolar Charge Controllers.
- Internal temperature sensor and optional external battery voltage, temperature, and current sensing via Bluetooth: A Smart Battery Sense, a BMV-712 Smart Battery Monitor, or a SmartShunt can be used to communicate battery voltage and temperature (and current, in the case of a BMV-712 or a SmartShunt) to one or more SmartSolar Charge Controllers.
- VE.Direct or VE.Can: For a wired data connection to a Colour Control GX, other GX products, PC, or other devices.
- Synchronized parallel charging with VE.Can or Bluetooth: Up to 25 units can be synchronised with VE.Can, and up to 10 units with Bluetooth.
- Fully discharged battery recovery function will initiate charging even if the battery has been discharged to zero volts. will reconnect to a fully discharged Li-ion battery with an integrated disconnect function.
- Remote on-off: To connect, for example, to a VE.BUS BMS.
- Programmable relay: can be programmed to trip on an alarm or other events.
- Optional: SmartSolar pluggable LCD display.
SKU: n/a -
MPPT Charge controllers, Solar Charge Controllers, Victron Solar Charge Controllers
Victron SmartSolar Charge Controller MPPT 150/100Tr VE.Can; 150V 100A 12/24/36/48 Charge Controller with Bluetooth
-24%MPPT Charge controllers, Solar Charge Controllers, Victron Solar Charge ControllersVictron SmartSolar Charge Controller MPPT 150/100Tr VE.Can; 150V 100A 12/24/36/48 Charge Controller with Bluetooth
Victron SmartSolar Charge Controller MPPT 150/100Tr VE.Can
-
Ultra-fast MPPT: Enhances energy harvest by up to 30% compared to PWM controllers and up to 10% compared to slower MPPT controllers, especially in varying light conditions.
-
Advanced MPPT Detection: Optimises energy harvest under partial shading conditions by ensuring the controller locks onto the optimal MPP, avoiding suboptimal points.
-
High Efficiency: No cooling fan is required; efficiency exceeds 98%.
-
Flexible Charge Algorithm: Fully programmable with eight pre-set algorithms, offering customisation for different battery types.
-
Robust Protection: Includes over-temperature, PV short circuit, reverse polarity, and current protection.
-
Bluetooth Smart Built-in: Enables wireless setup, monitoring, updates, and synchronisation with other Victron devices.
-
Wired Connectivity: Options for VE.Direct or VE.Can connect to other systems or monitoring devices.
-
Battery Recovery Function: Capable of charging batteries discharged to zero volts and reconnecting to fully discharged Li-ion batteries with integrated disconnect functions.
-
Programmable Relay: Allows for custom alarms or event-triggered actions.
-
Optional LCD Display: Easily attachable to the front of the controller for on-site monitoring
SKU: n/a -
There are no reviews yet.
